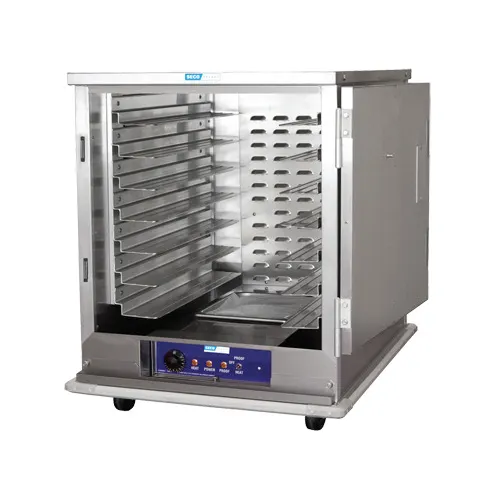

SecoSelect VCHI-30-RFM Insulated Mobile Heated Cabinet For 18” X 26” or 14” X 18” Trays, and 12” X 20” Pans
SecoSelect VCHI-30-RFM Heater Proofer Features
- Double Wall Construction with reinforcement channels welded between corner posts for added support and rigidity.
- Fully insulated top, sides and door for energy efficiency and heat retention.
- 20 gauge aluminum exterior for durability and cleanabilty.
- Aluminum Interior for even heat retention and energy efficiency.
- Heavy Duty Frame and interlocking side panels of 6063-T5 architectural aluminum for air tight seal and structural rigidity.
- Doors open 270 degrees, are equipped with center reinforcements and heavy duty flag hinges. Comes standard with built in flush mounted door handle and thermometer
- Designed to hold 18” X 26” or 14” X 18” Trays or 12” X 20” hotel pans with variable spacing on 3 1/8” centers. The ladder frame and tray slides are easily removable for cleaning.
- SecoSelect® 1500 watt Stainless Steel heating unit is removable from the front.
General
Cabinet shall be constructed with a aluminum exterior and interior. All double wall construction insulated with high density fiberglass insulation. All exterior surfaces shall be ground and polished to a #3 finish.
Internal Frame
Cabinet shall be framed with 1 1/2“ x 1 1/2” x 1/8” thick 6063-T5 aluminum tubing in the front and back. Frame shall be fully welded.
Base
Inner cabinet shall be all aluminum construction. Cabinet shall be insulated with high density fiberglass. 1" on sides, top and bottom, 1/4" on the back. Cabinet slides shall be constructed using 1/8” thick aluminum extrusions. Cabinet shall come standard with 7 sets of slides which shall be adjustable and removable. Cabinet shall accommodate 18” x 26” sheet pans and 12” x 20” hotel pans.
Door
Door exterior and interior will be 20 gauge aluminum, and shall be insulated. Door shall have two (2) heavy-duty, 5/8" thick extruded flag type hinges. Door shall be removable without tools and shall have recessed handles. Door shall have a heavy-duty positive action magnetic latch.
Electrical Characteristics
Cabinet shall have a bottom mounted 1500 watt heating unit with front control panel consisting of: on and off switch, power indicator lights, and thermostat control. Heating unit shall be removable from the front. Cabinet shall be 120 volt, 60 cycles, 1 phase. Cabinet shall come with a cord and a Nema #5-15 plug.
Casters
Cabinet shall come complete with 4-2” nonmarking plate casters, 2 rigid and 2 swivel. Casters shall have a weight capacity of 200 lbs each.
