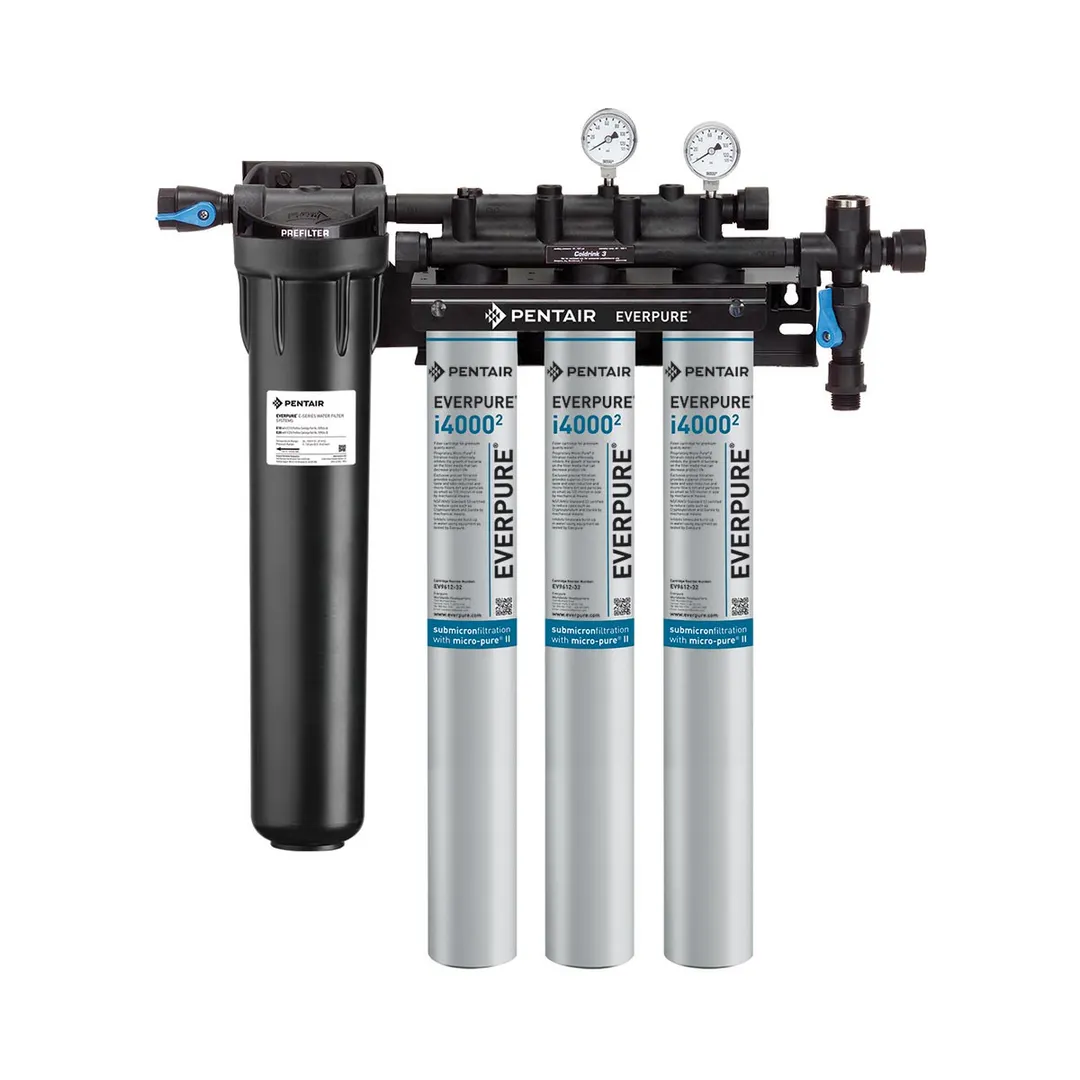

Everpure EV932523 Insurice® Triple PF-i4000² Water Filtration System w/ 0.5 Micron and 5 GPM, 36,000 Gallons
Features And Benefits
- Reduces ice machine problems caused by scale build-up* from dirt and dissolved minerals*
- Sanitary cartridge replacement is simple, quick and clean. Internal parts are never exposed to handling or contamination
- Reduces maintenance and service costs by reducing scale* and clogging of distribution lines, evaporator plate and pump
- Exclusive precoat filtration provides superior chlorine taste and odor reduction and micro-filters dirt and particles as small as 0.5 micron in size by mechanical means
- Proprietary Pentairs Everpures Micro-Pure® I| filtration media effectively inhibits the growth of bacteria on the filter media that can decrease product life
- Reduces chlorine taste and odor and other offensive contaminants
- Self-contained scale inhibitor feed keeps ice machines functioning at full capacity*
- Manifold features water shut-off, flushing valve and outlet pressure gauge
- 20" prefilter reduces dirt and particles.
- NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means
- *As tested by Pentair®
Installation Tips
- Choose a mounting location suitable to support the full weight of the system when operating.
- Never use saddle valve for connection.
- Use 3/4" water line.
- Do not connect system to water-cooled condenser.
- Install vertically with cartridges hanging down and allow 2½" (6.35 cm) clearance below the cartridge for easy cartridge replacement.
- Flush cartridges by running water through system for five (5) minutes at full flow.
Operation Tips
- Change cartridges on a regular six (6) month preventative maintenance program.
- Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar).
- Service flow rate must not exceed 5 gpm (18.9 Lpm).
- Always flush the filter cartridge at time of installation and cartridge change.
- Inspect Pentair Everpure EC210 cartridge periodically to determine dirt load.
- Replace EC210 cartridge when dirt has penetrated through to the inner core of the cartridge.
From The Manufacturer
Insurice® Water Filtration System, Insurice® Triple PF-i4000², Triple, (1) EC210 Prefilter, (3) i4000² Micro-Pure® II Precoat primary filtration cartridge, reduces chlorine, taste & odor, inhibits scale, inlet pressure gauge, outlet pressure gauge, flushing valve, 36,000 gallons, 5.0 gpm, 0.5 micron, 3/4" inlet, 3/4" outlet, NSF 42 & 53
