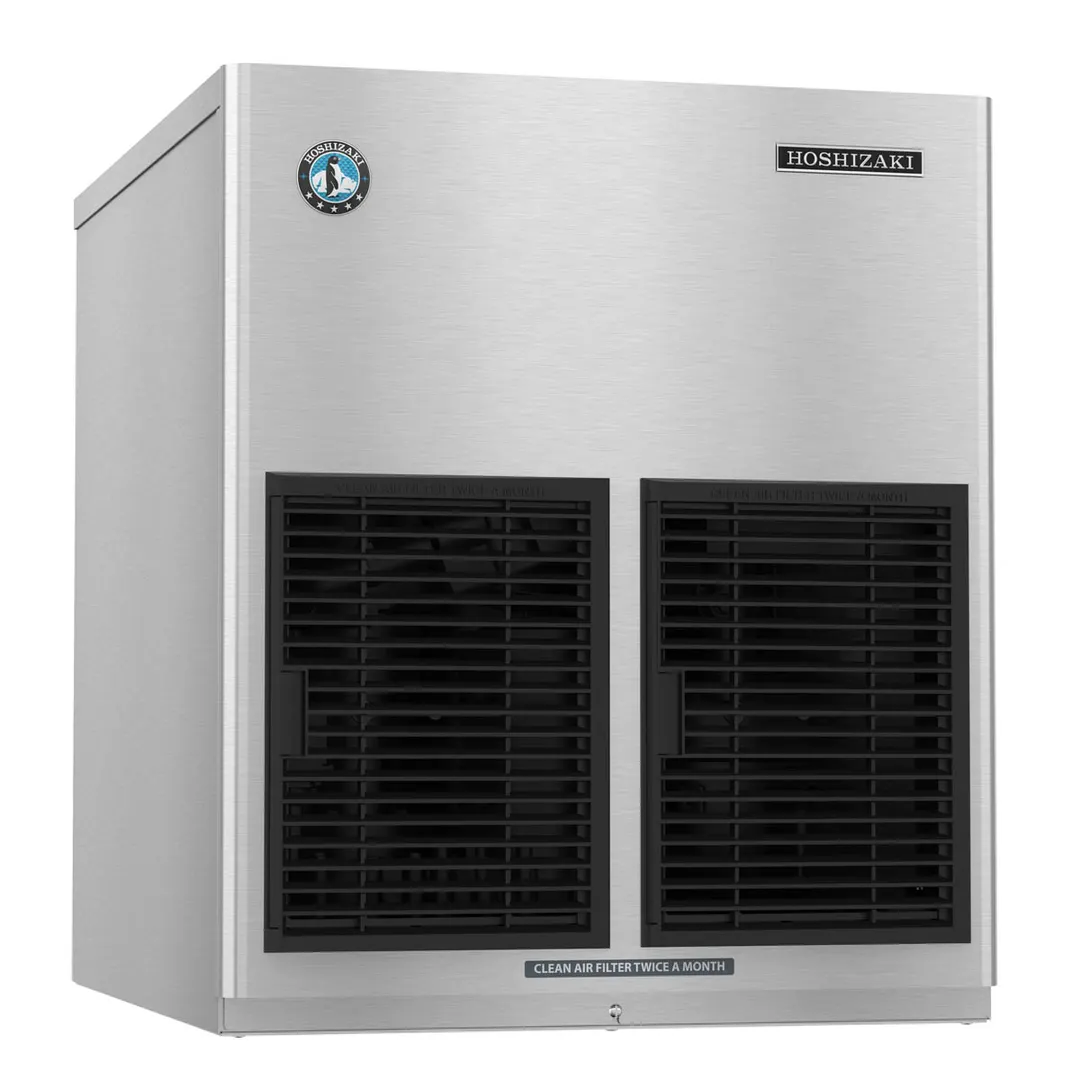

Hoshizaki F-1002MAJ 22" Flake Ice Machine Head, Air Cooled, 980 lb/24 hr

Hoshizaki F-1002MAJ 22" Flake Ice Machine Head

Hoshizaki F-1002MAJ 22" Flake Ice Machine Head is a slim commercial flake ice maker designed for professional use. It can produce up to 980 lbs. (444.521 Kg) per 24 hours. This unit is also suitable for side-by-side installation to double the production capacity using only 44” floor space. Hoshizaki F-1002MAJ 22" Flake Ice Machine is engineered for high-volume ice production with only 4.36 kWh energy use per 100 lb. (45.359 kg) ice production.

Hoshizaki F-1002MAJ 22" features Advanced CleanCycle24™, which runs a 2- second flush cycle every hour to clean sediment and particles for pure ice production. Meanwhile, the infrared bin control monitors the ice level inside the ice bin, ensuring it is topped off without overflowing. The Hoshizaki F-1002MAJ is a slim, modular ice maker that offers flaked or shaved ice, a soft and light ice type. This ice is perfect for preserving seafood or produce on display, making the Hoshizaki ice maker ideal for use in restaurants, supermarkets, grocery stores, seafood stores, and pizzerias.

Technical Specifications of Hoshizaki F-1002MAJ 22" Flake Ice Machine Head

• Width: 22 in (55.8 cm)
• Depth: 27.375 in (69.532 cm)
• Height: 26 in (66.04 cm)
• Production Capacity: Up to 980 lbs. (444.521 Kg) per 24 hours
• Installation Type: Modular
• Ice Type: Flaked ice
• Condenser Type: Air-cooled
• Refrigerant: R-404A
• Energy Consumption: 4.36 kWh per 100 lb. (45.359 kg)
• Water Consumption: 12 gals (45.424 L) per 100 lb. (45.359 kg)
• Electrical Configuration: 115v/60/1-ph, 15.2 amps
• Certifications: NSF and UL
• Net Weight: 176 lb. (79.832 kg)
• Shipping Weight: 210 lb. (95.254 kg)

Required Operating Conditions for Hoshizaki F-1002MAJ

The Hoshizaki F-1002MAJ 22" Flake Ice Machine Head must be positioned and installed correctly to ensure optimal performance and long-term service. So, you should comply with the:

• Clearance Requirements: This unit requires 6 in (15.24 cm) clearance on the rear and sides for proper air circulation and quicker maintenance. There must be at least 24” (69.96 cm) clearance between the ceiling and the top to allow auger removal.
• Distance from Heat Sources: This ice machine must be installed away from heat sources such as ovens, grills, or fryers.
• Ambient Temperature Range: 45°F to 100°F (7.22°C to 37.78°C)
• Water Temperature Range: 45°F to 90°F (7.22°C to 32.22°C)
• Water Pressure: 10 to 113 PSIG
• Voltage Range: 104V to 127V
• Plumbing Specifications: The water supply line requires a minimum of 1/4 in (0.635 cm) nominal ID copper water tubing. The drain line requires a minimum 3/4 in (1.905 cm) nominal ID hard pipe.

Key Features of Hoshizaki F-1002MAJ 22" Flake Ice Machine Head

• Large Volume Ice Production: Hoshizaki F-1002MAJ 22" Flake Ice Machine Head offers a high ice production volume of up to 980 lbs. (444.521 Kg) daily. This amount can be increased to 1960 lbs. (889.041 Kg) by mounting 2 units side by side.
• Compact Design: This unit is a slim commercial ice maker with a 22- inch (55.88 cm) width. Hence, it can be installed in narrow spaces or can be used side by side with another unit on Hoshizaki B-700, B-800, and B-900 ice bins to double the production, only on a 44” (111.76 cm) floor area in your kitchen.
• Advanced CleanCycle24™ Design: Hoshizaki F-1002MAJ 22" Flake Ice Machine Head features Advanced CleanCycle24 technology to run 2- second flush cycles every hour. Hence, all impurities and sediments are cleared away, thereby providing clear and clean flake ice.
• H-GUARD Plus Antimicrobial Agent: Key components are covered with H-GUARD Plus Antimicrobial Agent to prevent mold and bacterial growth, ensuring safe and clean ice.
• Made to Last: This unit boasts sturdy construction and stainless-steel housing that is resistant to outer impacts and rigorous conditions. Furthermore, it features a stainless steel dual-flight auger to withstand years of use while reducing the load on the gearbox. Additionally, bearings offer longer service life with hardened surfaces and greaseless designs.
• Dependable Components: The crucial components of this Hoshizaki flake ice machine, like the evaporator, refrigerant tubing, and freezing cylinder, are insulated with foamed-in-place polyurethane. Additionally, the motor and gear train are sealed to prevent dust or water penetration.
• Infrared Ice Bin Control: To increase the self-operation capability, the Hoshizaki F-1002MAJ 22" Flake Ice Machine is equipped with infrared ice bin control. Therefore, the unit constantly checks the amount of ice and stops the ice production when the ice bin is full.
• Self-Contained Air-Cooled Condenser: Hoshizaki F-1002MAJ 22" Flake Ice Machine has a built-in air-cooled condenser, which facilitates installation and decreases initial investment costs.
• Eco-Friendly Refrigerant: Hoshizaki commercial ice machines use eco-friendly R-404A refrigerant with zero ozone depletion potential.
• Greater Serviceability: This unit is designed for quick and more straightforward maintenance with easy-to-remove panels that provide quick access to all components.
• Superior Quality Flaked Ice: This unit produces flaked/shaved ice, which measures around 1 inch (2.54 cm). This ice is small and light, presenting a soft, chewable texture. Therefore, it is widely used in restaurants, grocery stores, supermarkets, hospitals, and nursing homes.
• High Energy Efficiency: This ice machine head uses only 4.36 kWh per 100 lb. (45.359 kg) of ice, decreasing production expenses and maximizing profit.
• Certifications: The Hoshizaki F-1002MAJ 22" Flake Ice Machine has NSF and UL certifications with its adherence to official regulations and guidelines.

Applications and Benefits of Hoshizaki F-1002MAJ 22" Flake Ice Machine Head

The Hoshizaki F-1002MAJ 22" Flake Ice Machine Head offers high-efficiency flake ice production. Therefore, this unit is recommended for:

• Nursing homes, hospitals, and senior living centers to provide soft chewable ice for beverages or desserts, as well as medical and food display applications.
• Restaurants to use in drinks, smoothies, or cool salad bars and seafood displays without damaging their surfaces,
• Supermarkets, grocery stores, and C-stores showcase produce and seafood by preserving their safety.

What Type of Ice does the Hoshizaki F-1002MAJ 22" Flake Ice Machine Head Produce?

The Hoshizaki F-1002MAJ 22" Flake Ice Machine makes flake or shaved ice with sizes about 1 inch (2.54 cm) wide. They are irregularly shaped and do not have sharp edges, making them ideal for buffets and displays to maintain the freshness and texture of vegetables, produce, and seafood. Its soft texture is also gentle enough for chewing, making it an excellent choice for restaurants, healthcare facilities, and senior living communities when serving elderly individuals.

Related/Complementary Accessories for Hoshizaki F-1002MAJ 22" Flake Ice Machine Head

Hoshizaki provides comprehensive solutions to meet the ice needs in commercial settings. Thus, it helps operators ensure consistently safe and superior quality ice production with:

• Hoshizaki Prefilter Cartridges: Hoshizaki flakers use a 10” (25.4 cm) E-10 prefilter to eradicate the large sediments and particles in the ice production components. Therefore, it captures these significant elements before the primary water filter, thereby prolonging its lifetime.
• Hoshizaki H9320-51 Water Filters: Hoshizaki F-1002MAJ 22" Flake Ice Machine features a single cartridge water filter that removes about 99.9% of disinfectant chlorine in the water. This ice maker provides pure, clean ice daily to meet your needs.
• Ice Storage Bins & Ice Dispensers: Compatible with Hoshizaki B-300, B-500, B-700, B-800, B-900 ice bins (Sold separately)
• Cutter Head: This Hoshizaki ice machine head allows you to produce finer flaked ice with the HS-2120 cutter head.

Why Choose Hoshizaki?

Hoshizaki is the leading designer and manufacturer of commercial ice machines for professional and institutional kitchens. The company employs over 13,000 people, and its high-quality products are widely used in more than 60 countries, thanks to its excellent after-sales service. Hoshizaki ice makers are among the most common types of commercial ice machines since they offer:

• High ice production volume: This unit offers a high production volume, which can be doubled by side-by-side mounting on the same ice bin.
• Reliable Warranty: 3 years parts and labor on the entire machine; 5 years parts and labor on the evaporator; 5 years parts on the compressor.
• Clean and Safe Ice: Advanced CleanCycle technology cleans the interior components every hour to clean sediments and particles.
• Certified for Safety and Sanitation: NSF and UL listed for commercial use.
• Chewable, Soft, and Light Ice: Chewable, light, soft flaked ice for displaying produce, seafood, and other gentle foods
