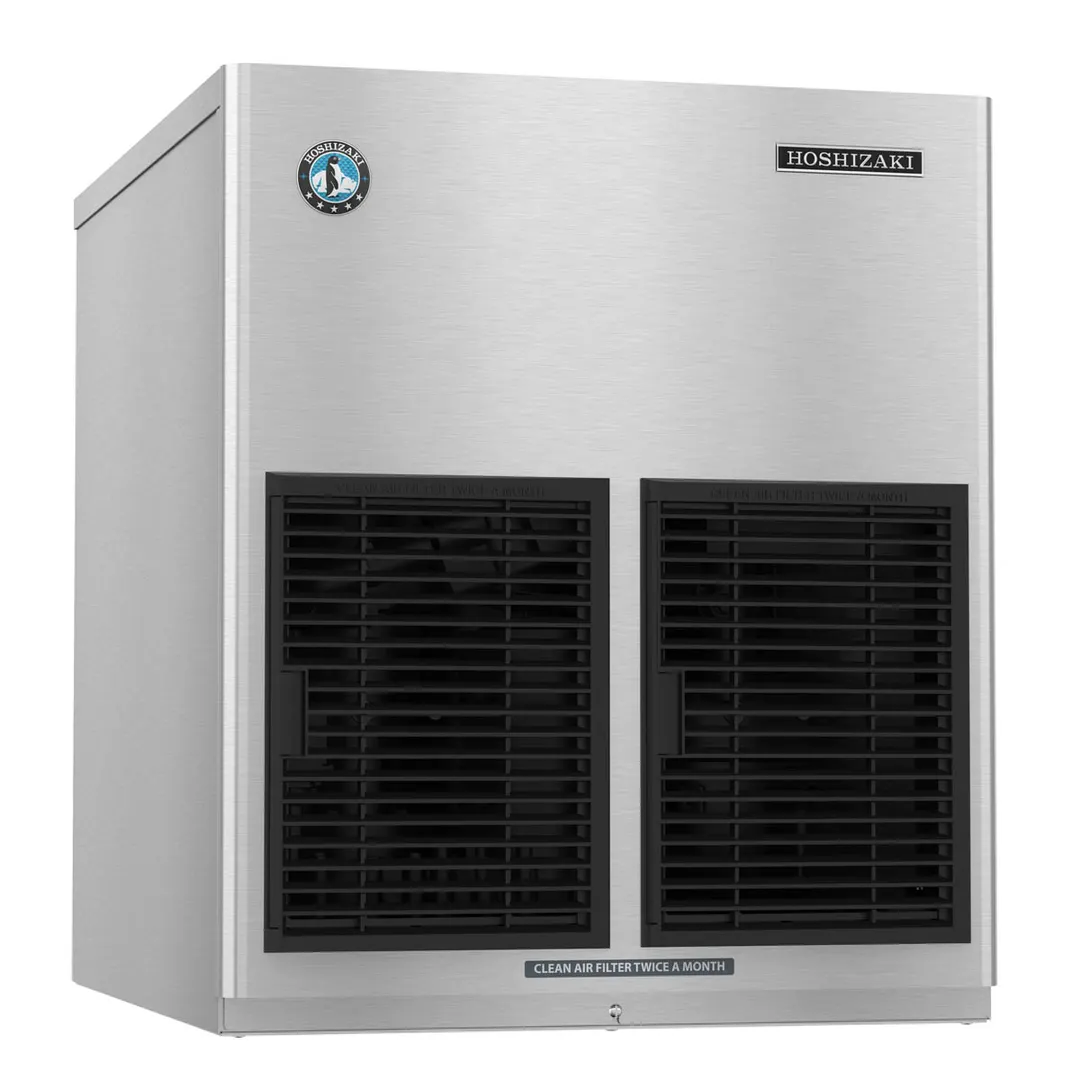

Hoshizaki F-801MAJ-C 22" Nugget Ice Machine Head, Air Cooled, 690 lb/24 hr

Hoshizaki F-801MAJ-C 22" Nugget Ice Machine Head

The Hoshizaki F-801MAJ-C is a high-capacity nugget ice machine head designed to deliver up to 690 lb (312.978 kg) of ice daily. This air-cooled unit produces nugget-style (cubelet) ice, the most popular due to its easy-to-chew texture and rapid cooling. Hoshizaki is a globally recognized brand renowned for its quality, reliability, and innovation. Cutting-edge features, such as Advanced CleanCycle24™ technology, a stainless steel auger with a greaseless bearing, and an infrared bin control system , enhance the machine’s efficiency, maintenance, and durability. Its slim 22-in (55.88 cm) width makes it ideal for hotels, restaurants, and convenience stores with limited space.

Technical Specifications of Hoshizaki F-801MAJ-C

• Shipping Weight: 205 lb (92.986 kg)
• Width: 22 in (55.88 cm)
• Depth: 27.38 in (69.545 cm)
• Height: 26 in (66.04 cm)
• Production Capacity: Up to 690 lb (312.978 kg) per 24 hours
• Installation Type: Modular
• Ice Type: Nugget-style cubelets
• Condenser Type: Air-cooled
• Refrigerant: R-404A
• Energy Consumption: 5.0 kWh per 100 lb (45.359 kg)
• Water Consumption: 12 gal (45.424 L) per 100 lb (45.359 kg)
• Electrical Configuration: 115v/60/1-ph, 11.8 amps
• Certifications: ENERGY STAR, NSF, and UL

Required Operating Conditions

The Hoshizaki F-801MAJ-C requires specific clearance and operating conditions to ensure optimal performance:

• Clearance Requirements: 6 in (15.24 cm) of space at the rear and sides and 24 in (60.96 cm) at the top for air circulation and hassle-free maintenance.
• Ambient Temperature Range: 45°F to 100°F (7.22°C to 37.78°C)
• Water Temperature Range: 45°F to 90°F (7.22°C to 32.22°C)
• Water Pressure: 10 to 113 PSIG
• Voltage Range: 104V to 127V
• Plumbing Specifications: An icemaker water supply line of minimum 1/4 in (0.635 cm) nominal ID copper tubing and an icemaker drain line of minimum 3/4 in (1.905 cm) nominal ID rigid pipe

Key Features of Hoshizaki F-801MAJ-C

• Impressive Ice Production: Hoshizaki F-801MAJ-C Cubelet Icemaker produces up to 690 lb (312.978 kg) of nugget cubelets per day, perfect for high-demand settings.
• Increased Capacity: Mounting 2 units side-by-side within just 44 in (111.76 cm) of floor space doubles the ice production in a small footprint.
• Compact and Durable Design: The slim, space-saving 22-in (55.88 cm) width and stainless steel exterior enhance space efficiency, durability, and corrosion resistance.
• Advanced CleanCycle24™ Design: An automated cleaning cycle works every 24 hours to maintain optimal hygiene and machine performance.
• Stainless Steel Auger with Greaseless Bearing: The durable stainless steel auger uses a greaseless bearing system to minimize maintenance and enhance operational efficiency.
• Infrared Bin Control System: This advanced control system helps provide reliable ice production and simplifies cleaning for effortless maintenance.
• 2-Second Flush Cycle: The machine performs a quick, two-second flush cycle every hour to remove sediment, resulting in consistently cleaner, better-tasting ice.
• Self-Contained Air-Cooled Condenser: Air-cooling promises efficient operation without the need for additional water consumption.
• Eco-Friendly Refrigerant: R-404A is an environmentally friendly refrigerant with zero ozone depletion potential.
• Removable Air Filters: This feature simplifies cleaning and maintenance, allowing users to maintain peak machine performance with minimal effort.
• Removable Panels: All components are easily accessible for quick maintenance.
• Unique Nugget-Style Ice: The nugget-style ice cubelets cool drinks quickly and absorb the flavor, acquiring a chewable texture.
• Quiet Operation: The F-801MAJ-C Operates at a low noise level to suit hotels, restaurants, and offices where noise levels matter.
• Gravity Drain: Removes melted ice water efficiently, preventing overflow and ensuring consistent performance.
• Energy Efficient: This ENERGY STAR-rated ice maker consumes only 5.0 kWh per 100 lb (45.359 kg) of ice, saving on utility bills while maintaining high ice output.
• Certifications: The Hoshizaki F-801MAJ-C holds NSF and UL certifications to meet sanitation and electrical safety standards for commercial food service applications.

Applications and Benefits of Hoshizaki F-801MAJ-C

The Hoshizaki F-801MAJ-C is refines customer satisfaction by delivering high-quality nugget ice cubelets that chill drinks quickly. Its durability and minimal maintenance requirements reduce operational downtime, making it an invaluable investment for diverse commercial settings.

• The F-801MAJ-C is ideal for restaurants, hotels, schools, hospitals, and resorts needing consistently large volumes of ice supply during peak hours.
• The compact design and robust construction render it perfect for venues requiring space efficiency without compromising performance.
• The ENERGY STAR certification helps businesses lower utility costs and environmental impact.

Ice Type Produced

The Hoshizaki F-801MAJ-C produces nugget-style cubelet ice that is soft and chewable, making it the top choice for a wide range of applications. This ice type is highly versatile and commonly used in hospitals and schools due to its easy-to-chew texture, which is gentle for patients and children. The porous structure of nugget ice enables it to effectively absorb and retain flavors, thereby enhancing the taste experience in drinks such as slushies, fruity cocktails, and specialty beverages. This makes it popular for select restaurants and beverage-focused establishments seeking to provide a unique and enjoyable drinking experience.

Related/Complementary Accessories for Hoshizaki F-801MAJ-C

Hoshizaki provides accessories to enhance the versatility of the F-801MAJ-C:

• Ice Storage Bins: Hoshizaki F-801MAJ-C is compatible with B-250PF, B-300PF/SF, B-500PF/SF, B-700PF/SF, B-800PF/SF, B-900PF/SF, B-1150SS, B-1300SS, B-1500SS*, and B-1650SS* (* For 2-unit applications only)
• Hoshizaki Water Filters: These water filters remove up to 97.3% of disinfectant chlorine, keeping ice quality high and improving machine longevity.
• Hoshizaki Prefilter Cartridges: You can use these cartridges to extend the life of water filters by filtering out larger dirt and rust particles.

Why Choose Hoshizaki?

Hoshizaki is the world's largest manufacturer of commercial refrigerated foodservice equipment, serving customers in over 60 countries, with over 13,000 employees worldwide. Choosing Hoshizaki means investing in a brand trusted for reliability, cutting-edge technology, and unmatched customer satisfaction.

• Durable Components: Stainless steel evaporator plates ensure unmatched longevity.
• Exceptional Warranty: Hoshizaki supports the F-801MAJ-C with a 3- year parts and labor warranty on the entire machine and a 5-year parts warranty on the compressor.
• Certified for Safety and Sanitation: NSF and UL certifications guarantee safe and hygienic commercial use.
• ENERGY STAR-Rated: Hoshizaki F-801MAJ-C meets strict energy efficiency guidelines, minimizing environmental impact and saving on utility costs.
• Superior Ice Quality The nugget-style soft chewable ice cubelets chill beverages quickly and take in the flavor.
