Hoshizaki Modular Crescent Cuber Air-Cooled 1 Phase

Features:

Individual crescent cube
Stainless steel evaporator
CycleSaverTM design
Up to 1428 lbs. of ice production per 24 hours
Mount two units, side-by-side, in only 60” of floor space for double the amount of ice production
Durable stainless steel exterior
Protected by H-Guard Plus Antimicrobial Agent
EverCheck alert system
Removable air filters (Air-cooled model only)
R-404A Refrigerant

Operating Limits:

Ambient Temp Range 45 - 100°F
Water Temp Range 45 - 90°F
Water Pressure 10 - 113 PSIG
Voltage Range 187 - 253V

Service:

Panels easily removed and all components accessible for service.
Allow 6” (15cm) clearance at rear, sides, and top for proper air circulation and ease of maintenance/ service.

Plumbing:

Icemaker Water Supply Line: Min. 3/8” Nominal ID Copper Water Tubing or Equivalent
Icemaker Drain Line: Min. 3/4” Nominal ID Hard Pipe or Equivalent Water-Cooled Model (Lines Must Be Independent of Icemaker)
Condenser Water Supply Line: Min.3/8” Nominal ID Copper Water Tubing or Equivalent
Condenser Drain/Return Line: Min. 3/8” Nominal ID Hard Pipe (open drain system) or Copper Water Tubing (closed loop system) or Equivalent

From The Manufacturer

Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 1275 lb/24 hours at 70°/50° (1089 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 13.2 amps, NSF, UL

Manufacturer	Hoshizaki
Model Number	KM-1340MAJ
Weight	315 lbs
Width	30″
Depth	27.38″
Height	41.5″
Compatible With	ice storage bin
Condenser Type	air-cooled
Ice Type	crescent cubes
Special Features	gravity drain
Voltage	208/230
Refrigerant Type	R-404A
Phase	1
Production per 24 hr (Lbs)	1275

	Hoshizaki KM-1340MAJ 30" Crescent Ice Machine Head, Air Cooled, 1275 lb/24 hr Free ShippingQuick Shipping	Hoshizaki KM-1100MAJ 30" Crescent Ice Machine Head, Air Cooled, 1087 lb/24 hr Free ShippingQuick Shipping	Icetro IM-1100-AH 30" Half Cube Ice Machine Head, Air Cooled, 1106 lb/24 hr Free ShippingQuick Shipping	Icetro IM-1100-AC 30" Full Cube Ice Machine Head, Air Cooled, 1106 lb/24 hr Free ShippingQuick Shipping	Hoshizaki KM-1100MAJ50 Cube‑Style Ice Maker 30" Wide, Crescent Cubes, 464 kg, 220‑240V NSF Certified Free Shipping	Hoshizaki KM-1340MRJZ3 30" Crescent Ice Machine Head, Remote Cooled, 1428 lb/24 hr, 208-230v/3ph Free ShippingQuick Shipping	Hoshizaki KM-1340MRJZ 30" Crescent Ice Machine Head, Remote Cooled, 1371 lb/24 hr Free ShippingQuick Shipping	Hoshizaki KM-1100MWJ 30" Crescent Ice Machine Head, Water Cooled, 1073 lb/24 hr Free ShippingQuick Shipping	Hoshizaki KM-1301SAJ3 48" Crescent Ice Machine Head, Air Cooled, 1427 lb/24 hr, 208-230v/3ph Free ShippingQuick Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping
Production per 24 hr (Lbs)	Production per 24 hr (Lbs)1275	Production per 24 hr (Lbs)1087	Production per 24 hr (Lbs)1106	Production per 24 hr (Lbs)1106	Production per 24 hr (Lbs)-	Production per 24 hr (Lbs)1428	Production per 24 hr (Lbs)1371	Production per 24 hr (Lbs)1073	Production per 24 hr (Lbs)1427
Voltage	Voltage208/230	Voltage208/230	Voltage208/230	Voltage208/230	Voltage-	Voltage208/230	Voltage208/230	Voltage208/230	Voltage208/230
Phase	Phase1	Phase1	Phase1	Phase1	Phase-	Phase3	Phase1	Phase1	Phase3
Special Features	Special Featuresgravity drain	Special Featuresgravity drain	Special Features-	Special Features-	Special Features-	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)48
Manufacturer	ManufacturerHoshizaki	ManufacturerHoshizaki	ManufacturerIcetro	ManufacturerIcetro	ManufacturerHoshizaki	ManufacturerHoshizaki	ManufacturerHoshizaki	ManufacturerHoshizaki	ManufacturerHoshizaki
Ice Type	Ice Typecrescent cubes	Ice Typecrescent cubes	Ice Typehalf cube	Ice Typefull cube	Ice Typecrescent cubes	Ice Typecrescent cubes	Ice Typecrescent cubes	Ice Typecrescent cubes	Ice Typecrescent cubes
Production per 24 hr	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg
Condenser Type	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeremote-cooled	Condenser Typeremote-cooled	Condenser Typewater-cooled	Condenser Typeair-cooled
Compatible With	Compatible Withice storage bin	Compatible Withice storage bin	Compatible Withice storage bin	Compatible Withice storage bin	Compatible With-	Compatible Withice storage bin	Compatible Withice storage bin	Compatible Withice storage bin	Compatible Withice storage bin
Refrigerant Type	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A
Certifications	Certifications-	Certifications-	CertificationsCE, cETLus, ETL-Sanitation	CertificationsCE, cETLus, ETL-Sanitation	CertificationsNSF, UL	CertificationsNSF, UL, AHRI, ENERGY STAR	CertificationsNSF, UL, AHRI	Certifications-	Certifications-
Refrigeration	Refrigeration-	Refrigeration-	Refrigeration-	Refrigeration-	Refrigerationself-contained refrigeration	Refrigeration-	Refrigeration-	Refrigeration-	Refrigeration-
Energy Efficiency	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy EfficiencyENERGY STAR®

Manufacturer	Hoshizaki
Model Number	KM-1340MAJ
Weight	315 lbs
Width	30″
Depth	27.38″
Height	41.5″
Compatible With	ice storage bin
Condenser Type	air-cooled
Ice Type	crescent cubes
Special Features	gravity drain
Voltage	208/230
Refrigerant Type	R-404A
Phase	1
Production per 24 hr (Lbs)	1275

	Hoshizaki KM-1340MAJ 30" Crescent Ice Machine Head, Air Cooled, 1275 lb/24 hr Free ShippingQuick Shipping	Hoshizaki KM-1100MAJ 30" Crescent Ice Machine Head, Air Cooled, 1087 lb/24 hr Free ShippingQuick Shipping	Icetro IM-1100-AH 30" Half Cube Ice Machine Head, Air Cooled, 1106 lb/24 hr Free ShippingQuick Shipping	Icetro IM-1100-AC 30" Full Cube Ice Machine Head, Air Cooled, 1106 lb/24 hr Free ShippingQuick Shipping	Hoshizaki KM-1100MAJ50 Cube‑Style Ice Maker 30" Wide, Crescent Cubes, 464 kg, 220‑240V NSF Certified Free Shipping	Hoshizaki KM-1340MRJZ3 30" Crescent Ice Machine Head, Remote Cooled, 1428 lb/24 hr, 208-230v/3ph Free ShippingQuick Shipping	Hoshizaki KM-1340MRJZ 30" Crescent Ice Machine Head, Remote Cooled, 1371 lb/24 hr Free ShippingQuick Shipping	Hoshizaki KM-1100MWJ 30" Crescent Ice Machine Head, Water Cooled, 1073 lb/24 hr Free ShippingQuick Shipping	Hoshizaki KM-1301SAJ3 48" Crescent Ice Machine Head, Air Cooled, 1427 lb/24 hr, 208-230v/3ph Free ShippingQuick Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping
Production per 24 hr (Lbs)	Production per 24 hr (Lbs)1275	Production per 24 hr (Lbs)1087	Production per 24 hr (Lbs)1106	Production per 24 hr (Lbs)1106	Production per 24 hr (Lbs)-	Production per 24 hr (Lbs)1428	Production per 24 hr (Lbs)1371	Production per 24 hr (Lbs)1073	Production per 24 hr (Lbs)1427
Voltage	Voltage208/230	Voltage208/230	Voltage208/230	Voltage208/230	Voltage-	Voltage208/230	Voltage208/230	Voltage208/230	Voltage208/230
Phase	Phase1	Phase1	Phase1	Phase1	Phase-	Phase3	Phase1	Phase1	Phase3
Special Features	Special Featuresgravity drain	Special Featuresgravity drain	Special Features-	Special Features-	Special Features-	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain	Special Featuresgravity drain
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)30	WIDTH (SIDE - SIDE)48
Manufacturer	ManufacturerHoshizaki	ManufacturerHoshizaki	ManufacturerIcetro	ManufacturerIcetro	ManufacturerHoshizaki	ManufacturerHoshizaki	ManufacturerHoshizaki	ManufacturerHoshizaki	ManufacturerHoshizaki
Ice Type	Ice Typecrescent cubes	Ice Typecrescent cubes	Ice Typehalf cube	Ice Typefull cube	Ice Typecrescent cubes	Ice Typecrescent cubes	Ice Typecrescent cubes	Ice Typecrescent cubes	Ice Typecrescent cubes
Production per 24 hr	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg	Production per 24 hr1001 - 1500 lb = 455 - 681 kg
Condenser Type	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeair-cooled	Condenser Typeremote-cooled	Condenser Typeremote-cooled	Condenser Typewater-cooled	Condenser Typeair-cooled
Compatible With	Compatible Withice storage bin	Compatible Withice storage bin	Compatible Withice storage bin	Compatible Withice storage bin	Compatible With-	Compatible Withice storage bin	Compatible Withice storage bin	Compatible Withice storage bin	Compatible Withice storage bin
Refrigerant Type	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A	Refrigerant TypeR-404A
Certifications	Certifications-	Certifications-	CertificationsCE, cETLus, ETL-Sanitation	CertificationsCE, cETLus, ETL-Sanitation	CertificationsNSF, UL	CertificationsNSF, UL, AHRI, ENERGY STAR	CertificationsNSF, UL, AHRI	Certifications-	Certifications-
Refrigeration	Refrigeration-	Refrigeration-	Refrigeration-	Refrigeration-	Refrigerationself-contained refrigeration	Refrigeration-	Refrigeration-	Refrigeration-	Refrigeration-
Energy Efficiency	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy EfficiencyENERGY STAR®

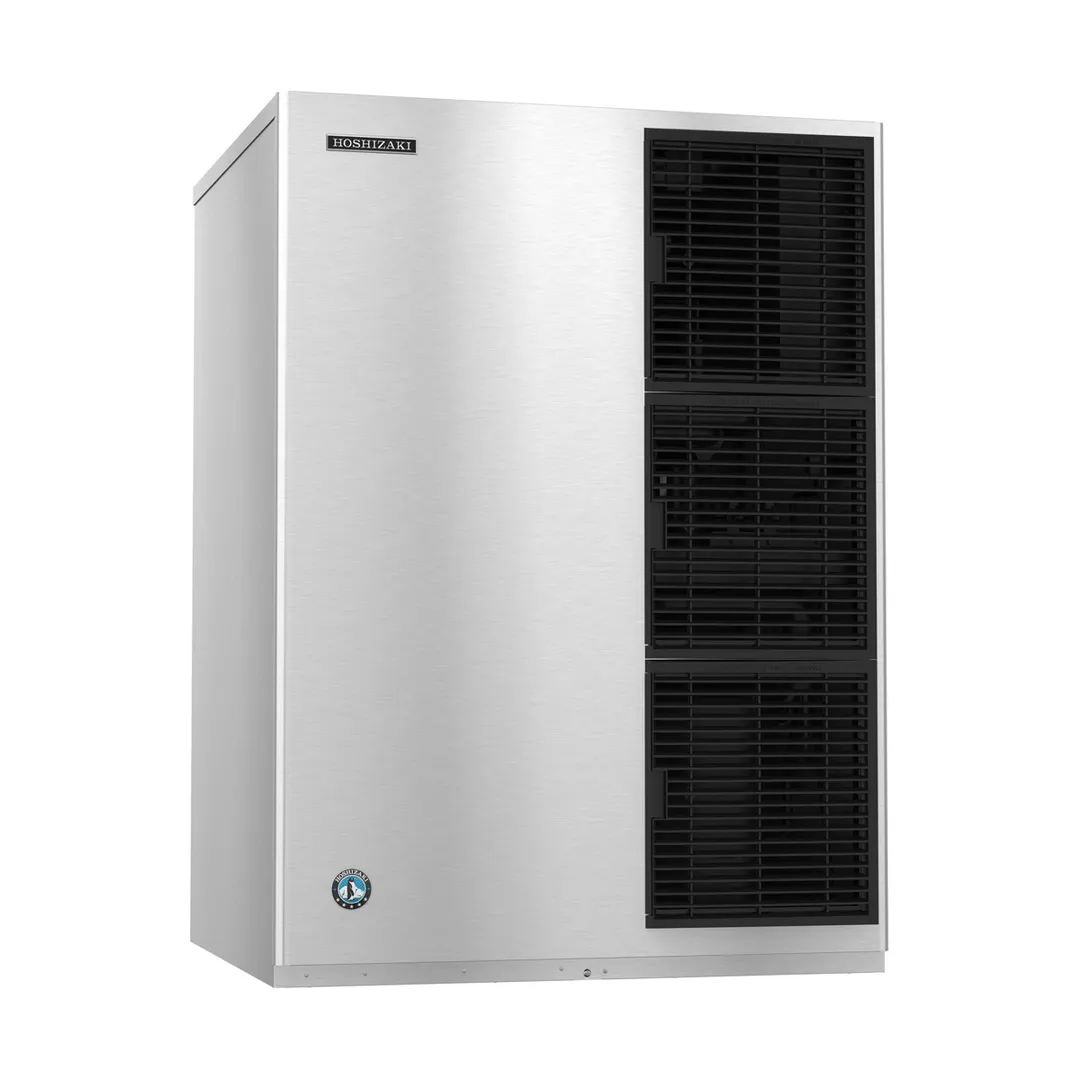

Hoshizaki KM-1340MAJ 30" Crescent Ice Machine Head, Air Cooled, 1275 lb/24 hr
