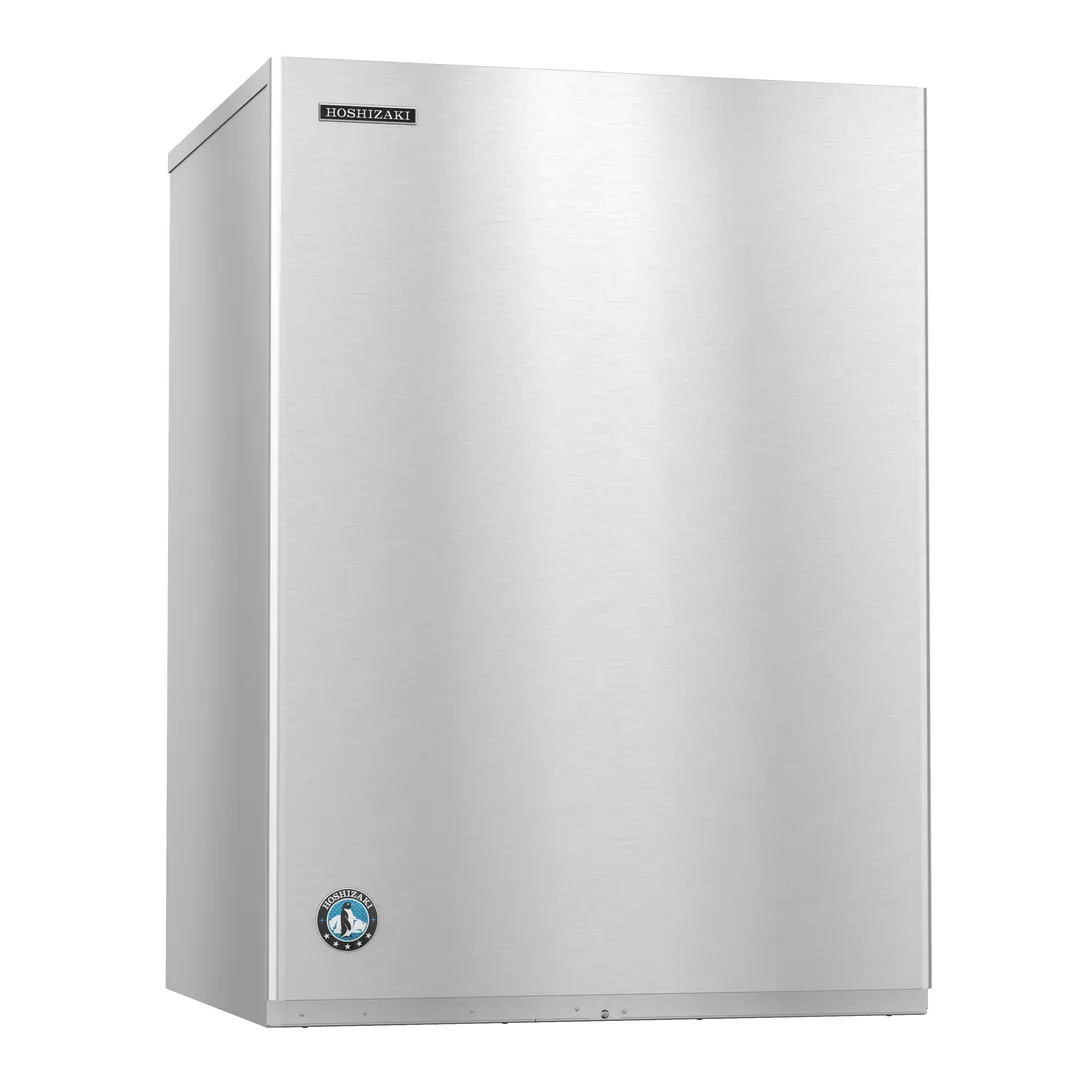

Hoshizaki KM-1601MRJZ3 30" Crescent Ice Machine Head, Remote Cooled, 1653 lb/24 hr, 208-230v/3ph

Hoshizaki KM-1601MRJZ3 30" Crescent Ice Machine Head

Hoshizaki KM-1601MRJZ3 30" crescent ice machine head is designed for high-capacity ice production with up to 1653 lbs. (749.788 kg) per 24 hours. Having a 30” (76.2 cm) width, this Hoshizaki ice maker is compact enough to allow you to mount 2 units side by side to double the production. It produces crescent-shaped ice, which is a slow-melting, complex, and clear ice type suitable for beverages and drinks.

The Hoshizaki KM-1601MRJZ3 features CycleSaver technology, which makes more ice while consuming less energy, thereby reducing operational costs. EverCheck™ alert system enables quick repairs by facilitating diagnosis and providing fault notifications. H-GUARD Plus® Antimicrobial Agent covers all key parts to ensure healthy and safe ice production by hindering microbial, bacterial activity, and mold growth.

Technical Specifications of Hoshizaki KM-1601MRJZ3 30" Crescent Ice Machine Head

• Width: 30 in (76.2 cm)
• Depth: 27.375 in (69.545 cm)
• Height: 41.625 in (105.727 cm)
• Production Capacity: Up to 1653 lbs. (749.788 Kg) per 24 hours
• Installation Type: Modular
• Ice Type: Crescent cubes
• Condenser Type: Air-cooled Remote Condenser (Sold separately)
• Refrigerant: R-404A
• Energy Consumption: 4.09 kWh per 100 lb. (45.359 kg)
• Water Consumption: 18 gals (68.137 L) per 100 lb. (45.359 kg)
• Electrical Configuration: 208-230V/60/3, 12.9 A
• Certifications: NSF and UL
• Net weight: 259 lb. (117.48 kg)
• Shipping Weight: 316 lb. (143.335 kg)

Required Operating Conditions

Hoshizaki KM-1601MRJZ3 offers optimal performance under proper operating conditions:

• Clearance Requirements: Leave at least 6 in (15.24 cm) clearance on all sides to allow air circulation and easier maintenance.
• Keep Away from Heat Sources: This ice maker machine should be installed away from heat sources such as oven and other heat sources.
• Ambient Temperature Range: 45°F to 100°F (7.22°C to 37.78°C)
• Water Temperature Range: 45°F to 90°F (7.22°C to 32.22°C)
• Water Pressure: 10 to 113 PSIG
• Voltage Range: 187V – 253V
• Plumbing Specifications: The water supply line requires a minimum of 3/8 in (0.952 cm) nominal ID copper water tubing. The drain line requires a minimum 3/4 in (1.905 cm) nominal ID hard pipe.

Key Features of Hoshizaki KM-1601MRJZ3

• High-capacity Ice Production: The Hoshizaki KM-1601MRJZ3 can make crescent-shaped ice up to 1653 lbs. (749.788 Kg) per 24 hours.
• Compact Design: This unit can be installed side by side on the same ice bin without consuming much space, allowing you to double the ice production. With a 30-inch (76.2 cm) width, it can fit in narrow spaces when combined with narrower ice bins such as B-500SF.
• CycleSaver™ Technology: Hoshizaki KM-1601MRJZ3 features a dual-sided stainless-steel evaporator, doubling the ice production per cycle with fewer cycles and less energy usage.
• Advanced Hygiene Technology: Key components are embedded with H-GUARD Plus Antimicrobial Agents to prevent the formation of bacteria and mold. Hoshizaki pre-filters and water filters ensure the best ice production results with enhanced taste and appearance.
• EverCheck™ Alert System: HOSHIZAKI cubers are equipped with EverCheck™ Control Board to conduct diagnostic controls. Additionally, it provides notifications to help service technicians for quicker repair, minimizing downtime.
• Air-Cooled Remote Condenser: This Hoshizaki ice machine is air-cooled and uses built-in fans and vents, eliminating the need for additional water lines. Additionally, it requires lower costs of installation.
• Eco-Friendly Refrigerant: Hoshizaki KM-1601MRJZ3 uses R-404A refrigerant, an eco-friendly material with zero ozone depletion potential.
• Removable Air Filters: The Hoshizaki ice machine features removable air filters for easier change. Hence, your ice is always made from the purest water.
• Crescent-Shaped Ice: This Hoshizaki ice machine makes crescent-shaped ice cubes with a harder structure to maintain longer in beverages and drinks.
• Crystal-Clear Ice Production: Hoshizaki KM-1601MRJZ3 produces crescent-shaped ice. This unit filters particles and uses clean water in the making process. Its unique shape allows the excess water to quickly flow down and form crystal-clear ice.
• Individual Ice: Hoshizaki commercial ice maker prevents buckling of ice and provides individual ice cubes.
• Durable Construction: Hoshizaki KM-1601MRJZ3 is designed with fewer parts to minimize the risk of break-downs and feature a stainless-steel exterior and evaporator to ensure in commercial settings.
• High Energy Efficiency: This commercial ice maker uses 4.09 kWh per 100 lb. (45.359 kg) of ice, offering higher profitability and lower operational costs.
• Certifications: Hoshizaki KM-1601MRJZ3 has NSF and UL certifications for its compliance with the regulations for commercial settings.

Applications and Benefits of Hoshizaki KM-1601MRJZ3 Ice Machine

Hoshizaki KM-1601MRJZ3 30" Crescent Ice Machine Head features large ice production capacity and high energy efficiency and presents a user-friendly design. Hence, it is recommended for:

• Commercial establishments which require a high amount of ice daily for beverages, drinks, and other foodservice and cooling applications with its large production volume.
• Bars, restaurants, and hotels need reliable ice machines to produce slow-melting ice.
• Convenience stores and supermarkets that produce and sell ice in bags.

What Type of Ice does the Hoshizaki KM-1601MRJZ3 30" Crescent Ice Machine Head Produce?

Hoshizaki KM-1601MRJZ3 30" Crescent Ice Machine Head is engineered to produce crescent-type ice cubes, which are the company’s signature ice type. Crescent ice has dimensions of 0.5 in x 1.5 in x 1.125 in (1.27 cm x 3.81 cm x 2.857 cm). Crescent-shaped ice is renowned for its slow-melting nature, which allows for more extended cooling of beverages and drinks without dilution. They boast a crystal-clear look, enhancing the drinking experience. The Hoshizaki KM-1601MRJZ3 crescent ice maker is well-suited for restaurants, bars, caterers, and cafes.

Related/Complementary Accessories for Hoshizaki KM-1601MRJZ3 30" Crescent Ice Machine Head

Hoshizaki provides parts and accessories for consistent quality ice production with Hoshizaki KM-1601MRJZ3:

• Hoshizaki Prefilter Cartridges: By removing dust, rust, and particles before the water filter, Hoshizaki prefilter cartridges prolong the water filter’s service life.
• Hoshizaki H-9655 Water Filters: To ensure superior ice quality and eradicate undesired taste and odors, Hoshizaki ice machines use water filters to eliminate up to 97.3% of disinfectant chlorine in the water supply.
• Hoshizaki URC-22FZ Remote Condenser: Engineered to work with Hoshizaki KM-1601MRJZ3, this Hoshizaki remote condenser offers quiet, efficient, and effective operation.
• Pre-Charged Tubing Kits: Hoshizaki also offers remote condenser line kits, HS-5323 (25’), HS-5324 (35’), or HS-5325 (55’), which are required for Hoshizaki URC-22FZ.
• Ice Storage Bins & Ice Dispensers: Compatible with Hoshizaki B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650 Ice Bins (Sold separately)

Why Choose Hoshizaki?

You should choose Hoshizaki because it is the world’s largest commercial ice machine designer and manufacturer. The company has a vast sales and services network to bring you a large inventory of award-winning ice machines that feature:

• Smart Design: Double-sided stainless-steel evaporator to reduce cycles and increase ice production.
• Reliable Warranty: 3 years parts and labor on the entire machine; 5 years parts and labor on the evaporator; 5 years parts on the compressor.
• Lower Operational Costs: Much less energy consumption with CycleSaver™ technology, reduced downtime with fewer parts, and the EverCheck™ alert system.
• Certified for Safety and Sanitation: NSF and UL listed for commercial use.
• Excellent Ice Quality: Hard, slow-melting, and crystal-clear crescent-shaped ice for less dilution in beverages and drinks.
