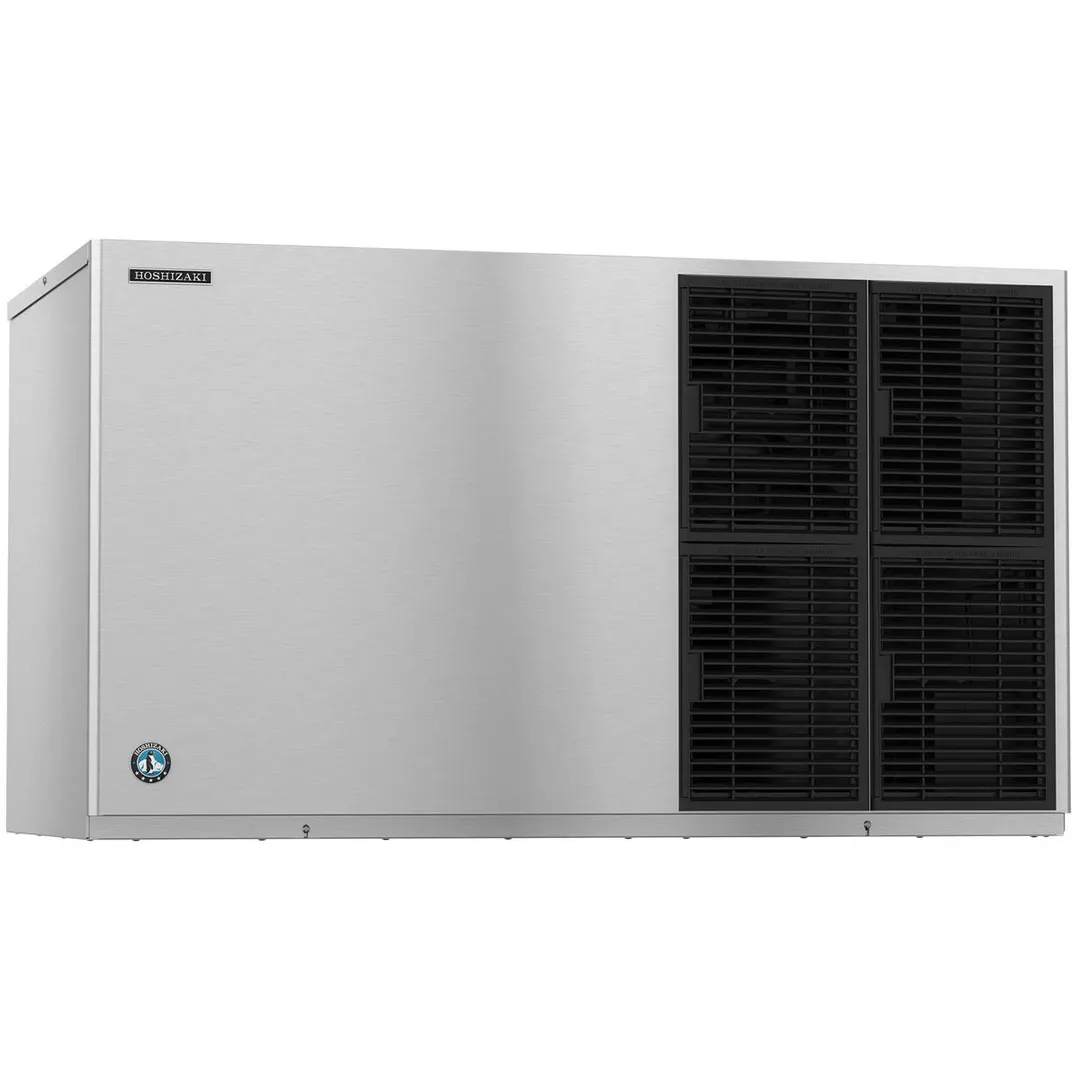

Hoshizaki KM-1601SAJ 48" Crescent Ice Machine Head, Air Cooled, 1513 lb/24 hr

SKU HOS-KM-1601SAJ

$10,890.00/Each

Free Shipping

Hoshizaki KM-1601SAJ 48" Crescent Ice Machine Head, Air Cooled, 1513 lb/24 hr

The image above may not exactly represent the product

$10,890.00/Each

0% Interest for 30 Days with

Financing Available

Small payments, big returns—view financing details now!

Instant Rebate

up to $75

Resources

Spec Sheet

Hoshizaki KM-1601SAJ Specs

Manufacturer	Hoshizaki
Model Number	KM-1601SAJ
Weight	345 lbs
Width	48″
Depth	27.38″
Height	27.38″
Compatible With	ice storage bin
Condenser Type	air-cooled
Ice Type	crescent cubes
Special Features	gravity drain
Voltage	208/230
Refrigerant Type	R-404A
Phase	1
Production per 24 hr (Lbs)	1513

View All Hoshizaki Products >

Description

Reviews

Hoshizaki Stackable Crescent Cuber Air-Cooled 1 Phase

Features:

Individual crescent cube
Stainless steel evaporator
CycleSaverTM design
Up to 1671 lbs. of ice production per 24 hours
Stackable for 3342 lbs. per 24 hours ice production in the same floor space
Durable stainless steel exterior
Protected by H-Guard Plus Antimicrobial Agent
EverCheckTM alert system
R-404A Refrigerant

Operating Limits:

Ambient Temp Range 45 - 100°F
Water Temp Range 45 - 90°F
Water Pressure 10 - 113 PSIG
Voltage Range 187 - 253V

Service:

Panels easily removed and all components accessible for service.
Allow 9” (23 cm) clearance at rear, sides, and top for proper air circulation and ease of maintenance/ service.

Plumbing:

Icemaker Water Supply Line: Min. 3/8” Nominal ID Copper Water Tubing or Equivalent
Icemaker Drain Line: Min. 3/4” Nominal ID Hard Pipe or Equivalent Water-Cooled Model (Lines Must Be Independent of Icemaker)
Condenser Water Supply Line: Min. 3/8” Nominal ID Copper Water Tubing or Equivalent
Condenser Drain/Return Line: Min. 3/8” Nominal ID Hard Pipe (open drain system) or Copper Water Tubing (closed loop system) or Equivalent

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1538 lb/24 hours at 70°/50° (1340 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, NSF, UL
