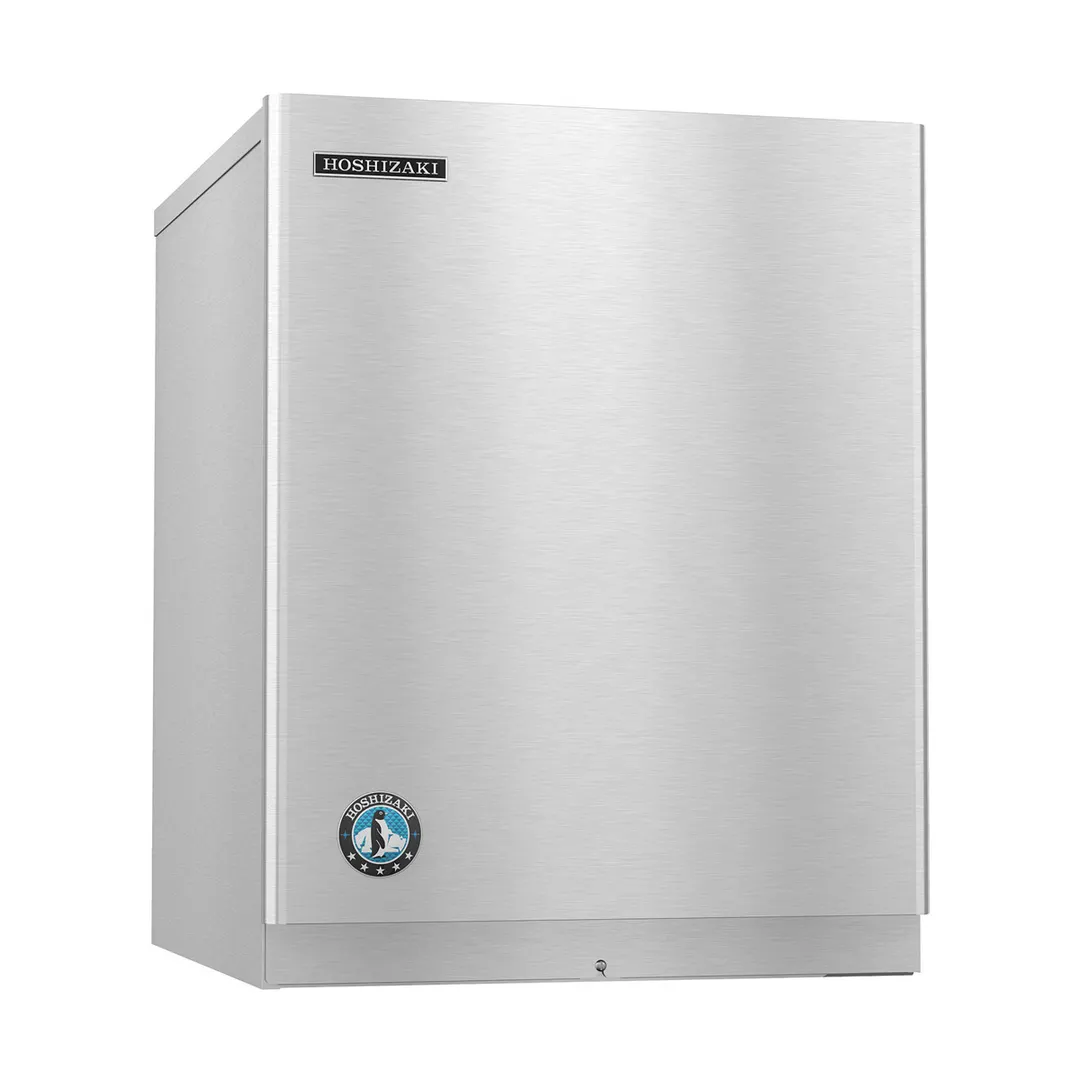

Hoshizaki KMS-822MLJ 22" Crescent Ice Machine Head, Remote Cooled, 851 lb/24 hr

SKU HOS-KMS-822MLJ

$6,545.00/Each

Free Shipping

Hoshizaki KMS-822MLJ 22" Crescent Ice Machine Head, Remote Cooled, 851 lb/24 hr

The image above may not exactly represent the product

$6,545.00/Each

0% Interest for 30 Days with

Financing Available

Small payments, big returns—view financing details now!

Resources

Spec Sheet

Hoshizaki KMS-822MLJ Specs

Manufacturer	Hoshizaki
Model Number	KMS-822MLJ
Weight	145 lbs
Width	22″
Depth	24.63″
Height	28″
Compatible With	ice storage bin
Condenser Type	remote-cooled
Ice Type	crescent cubes
Special Features	gravity drain
Voltage	208/230
Refrigerant Type	R-404A
Phase	1
Production per 24 hr (Lbs)	851

View All Hoshizaki Products >

Description

Reviews

Hoshizaki Serenity Series Cuber Ice Machine Remote Air-Cooled

Features:

Individual crescent cube
Stainless steel evaporator
CycleSaverTM design
Up to 851 lbs. of ice production per 24 hours
Durable stainless steel exterior
Protected by H-GUARD Plus Antimicrobial Agent
EverCheckTM alert system
No heat, less noise
CFC / HFC Free Foam
R-404A Refrigerant
Not recommmended for side-by-side application
Remote unit includes both condenser and compressor

Operating Limits:

Ambient Temp Range 45 - 100°F
Water Temp Range 45 - 90°F
Water Pressure 10 - 113 PSIG
Voltage Range 187-253V‡

Service:

Allow 6” (15 cm) clearance at rear, sides, and top for proper air circulation and ease of maintenance and/or service should they be required.
Panels easily removed and all components accessible for service.

Plumbing:

Icemaker Water Supply Line: Minimum 1/4” Nominal ID Copper Water Tubing or Equivalent
Icemaker Drain Line: Minimum 3/4” Nominal ID Hard Pipe or Equivalent

From The Manufacturer

Serenity Ice Maker, Cube-style, 22"W, air-cooled, remote condenser (priced separately), production capacity up to 851 lb/24 hours at 70°/50° (770 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, designed for use with beverage dispensers, R-404A refrigerant, NSF, UL
