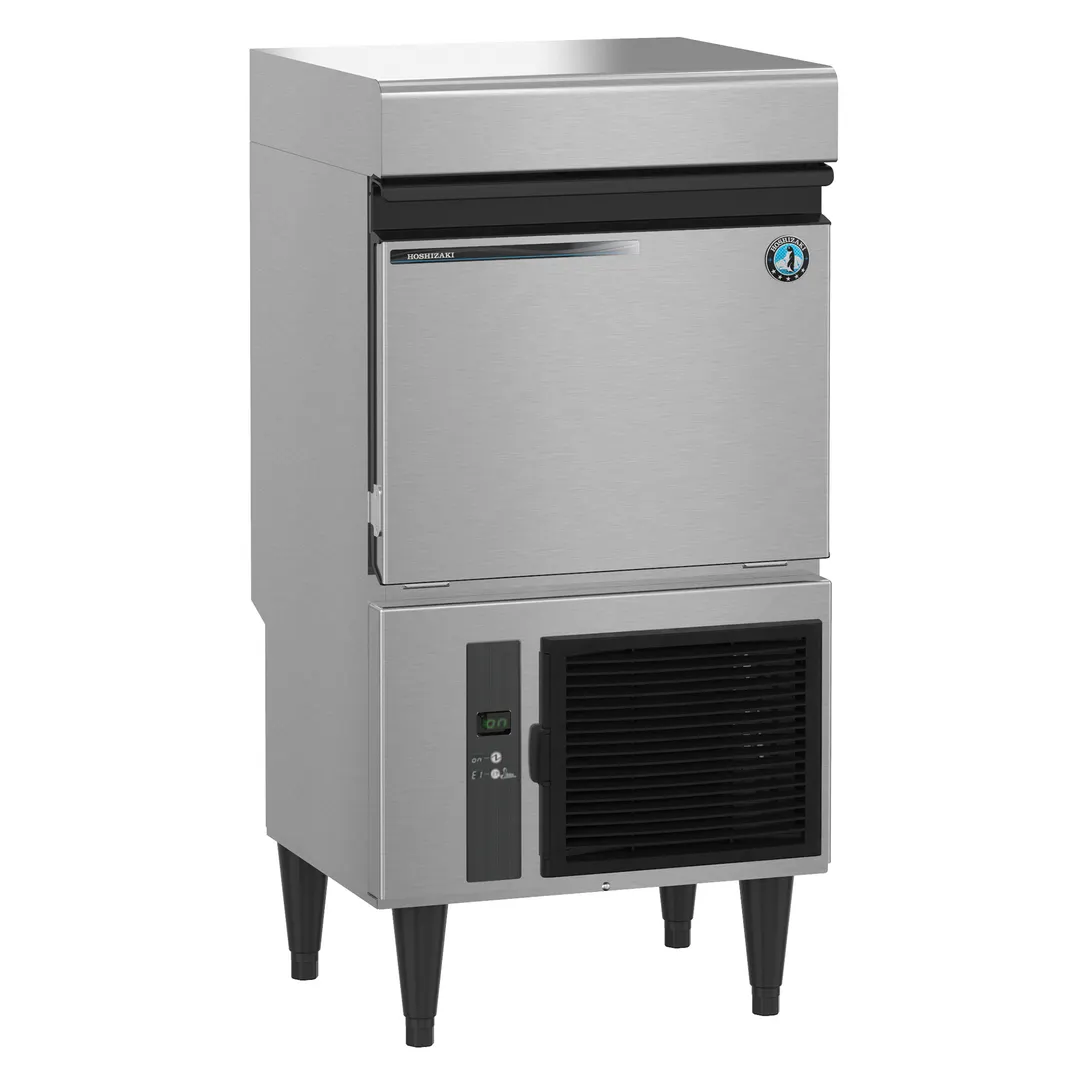

Hoshizaki IM-50BAA-LM Air-Cooled Square Cuber Icemaker With Built In Storage Bin

General Info And Benefits

The IM-50BAA-LM is capable of producing approximately 50 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 22 lbs of built-in storage capacity* and its Small footprint can easily fit under a bar counter.

Hoshizaki IM-50BAA-LM Features

Small footprint can easily fit under bar counter
Cubes have superior chilling ability and beautiful appearance
Clear, solid 1.9” x 1.9” x 2.3” cube
Up to 50 lbs. of ice production per 24 hours
Built-in storage bin with 22 lb. capacity
Durable stainless steel exterior
Easy to clean air filter
Foam injected polyurethane for insulation (HFC free)
Closed water circuit offers the ultimate contamination protection
Ice scoop included
6.5’ power cord with NEMA 5-15P plug

Hoshizaki IM-50BAA-LM Specifications

Condenser : Air-Cooled
Ice Production (Lbs. per 24 hours) : 50/45
Dimensions : 19-3/4″ W x 17-3/4″ D x 39- 1/2 ” H
Net / Ship Weight (lbs.) :115 / 137
Other Details : See spec. sheet

From The Manufacturer

Ice Maker, Specialty Cube-Style, 19-3/4"W, air-cooled, self-contained condenser, production capacity up to 50 lb/24 hours at 70°/50°, (45 lb at 90°/70°) 22 lb built-in bin storage capacity, individual solid 2" x 2" cube style (1.9" x 1.9" x 2.3"), stainless steel finish, removable/cleanable filter, 6" legs, R134a refrigerant, 115v/60/1-ph, 5.0 amps, cord with NEMA 5-15P, NSF, cETLus

Manufacturer	Hoshizaki
Model Number	IM-50BAA-LM
Weight	137 lbs
Width	19.75″
Depth	17.75″
Height	39.5″
Condenser Type	air-cooled
Ice Type	full cube
Special Features	gravity drain
Finish	stainless steel
Voltage	115
Refrigerant Type	R-134A
Certifications	cETLus, NSF
Phase	1
Production per 24 hr (Lbs)	50
Bin storage capacity (Lbs)	22
