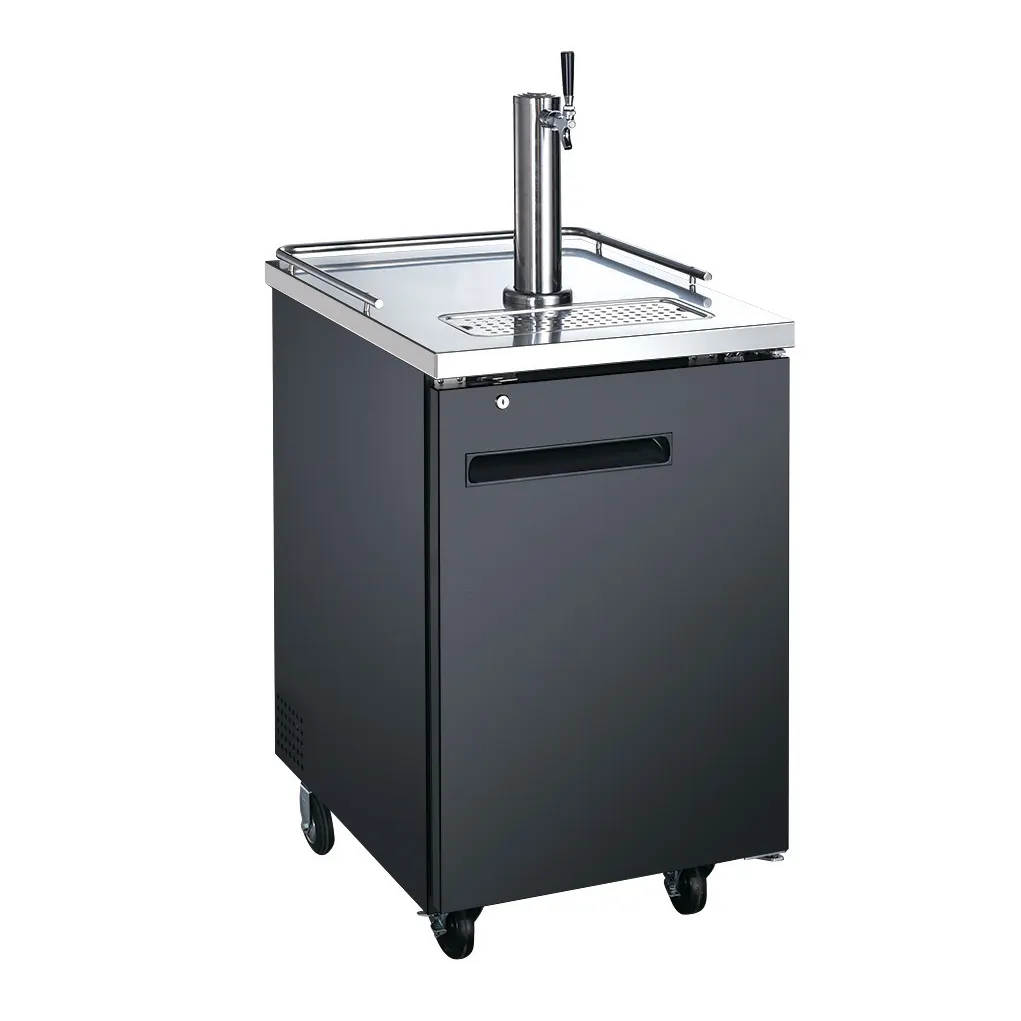

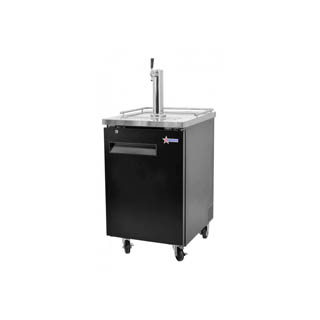

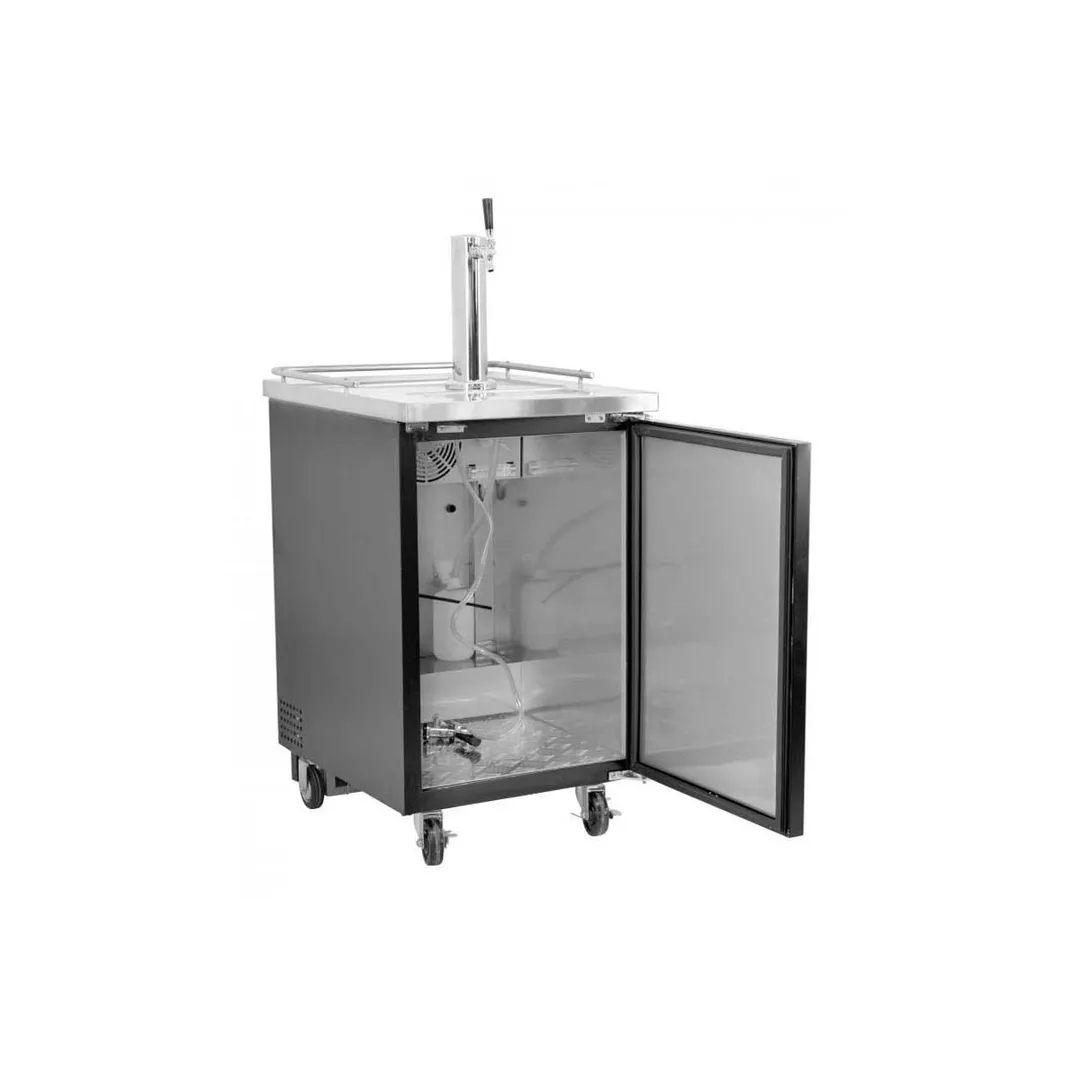

OMCAN SOLID DOOR BOTTLE KEG COOLERS WITH BEER DISPENSERS

Standard Features:

Durable stainless steel top, interior walls, floor and ceiling
Exterior construction is attractive corrosion resistant vinyl on steel in black finish
Refrigeration system keeps the drinks at safe temperatures between 33°F and 41°F (0.5°C to 5°C)
Shelves: Adjustable heavy-duty PVC coated shelves
Self-Closing doors with locks
LED interior lighting
Removable installation board makes it easy to access condenser coil for cleaning and service
Refrigerant: HYDRO-CARBON R290

ITEM SPECIFICATIONS:

ITEM NUMBER 50066
COMPRESSOR HP 1/6
MODEL BD-CN-0007-HC
ELECTRICAL 115V / 60Hz / 1Ph
POWER 1/6 HP
AMPS 1.92A
PRODUCT CAPACITY One 1/2 barrel
OVERALL DIMENSIONS (DWH) 30.8” x 23.5” x 51.5”/ 782 x 596 x 1308 mm
NUMBER OF DOORS 1
INTERIOR DIMENSIONS 19.5” x 25.8” x 28.6” / 496 x 655 x 726 mm
TEMPERATURE RANGE 0.5 - 5 °C / 33 - 41 °F
PACKAGING DIMENSIONS 25.2” x 32” x 48” / 640 x 815 x 1220 mm
CAPACITY 6.5 cu. ft.
WEIGHT 70 kg/ 154 lbs
NUMBER OF SHELVES N/A
PACKAGING WEIGHT 80 kg/ 176 lbs

OMCAN SOLID DOOR BOTTLE KEG COOLERS WITH BEER DISPENSERS

From The Manufacturer

(BD-CN-0007-HC)Draft Beer Cooler/Kegerator, with (1) dispenser, one-section, 24"W, 6.5 cu. ft. (184 liters), (1) 1/2 keg capacity, 33°F to 41°F (0.5°C to 5°C) temperature range, LED lights, self-closing solid door with lock & key, stainless steel countertop, interior floor & walls, heavy-duty wear-resistant black coating paint exterior, R290 Hydrocarbon refrigerant, 1/6 HP, 115v/60/1-ph, 1.92 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation, NSF (shipped on pallet)

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.

Manufacturer	Omcan USA
Model Number	50066
Weight	169 lbs
Width	23.5″
Depth	30.8″
Height	51.5″
Usage	Beer Dispenser
Barrel Style	1/2 barrel (full keg)
Column Qty	1 column / tower
Number of Taps	1
Compressor Style	side / rear breathing
Special Features	locking
Exterior Finish	black
Voltage	115
Certifications	cETLus, ETL-Sanitation
Capacity (cu. ft.)	6.5
Keg Capacity	1
