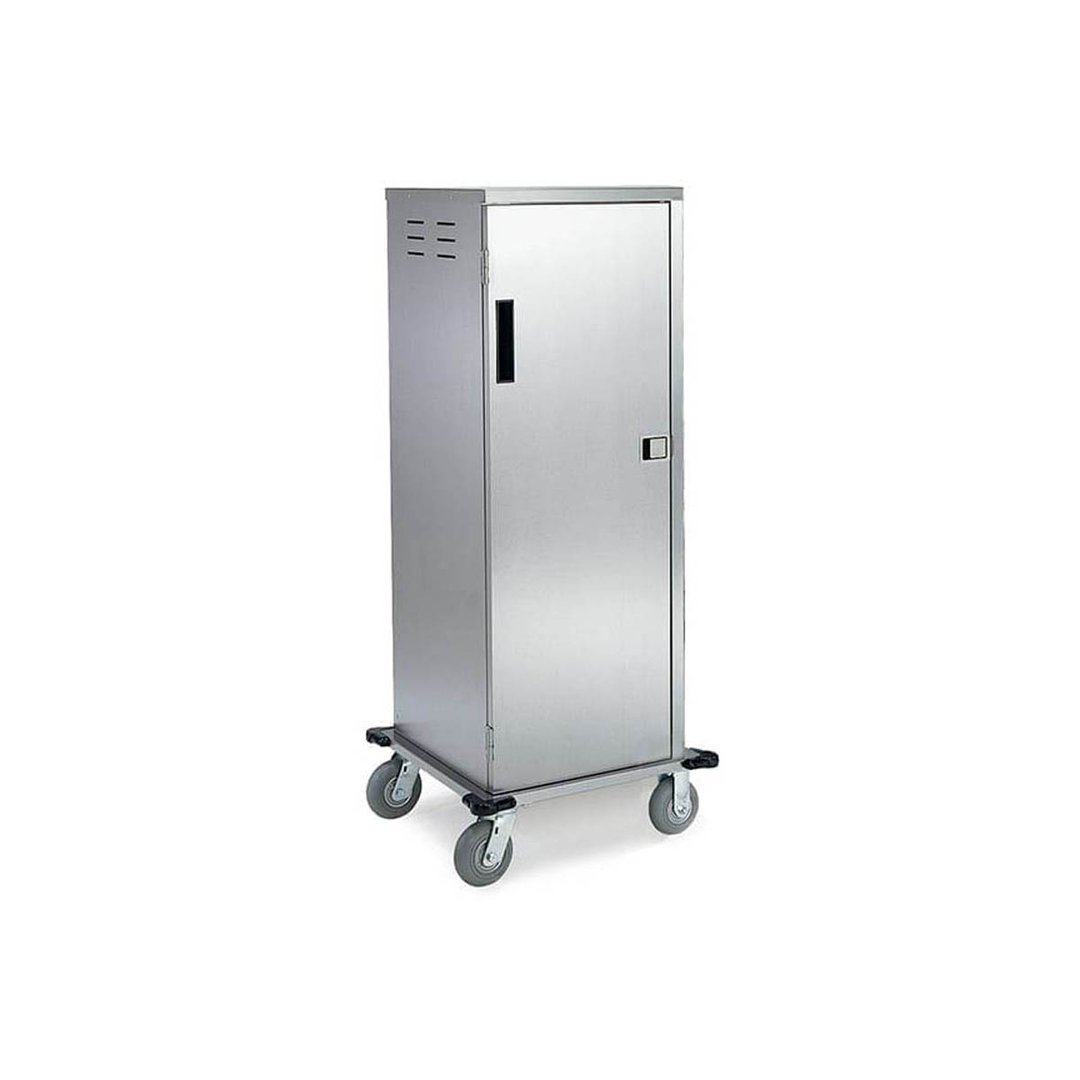

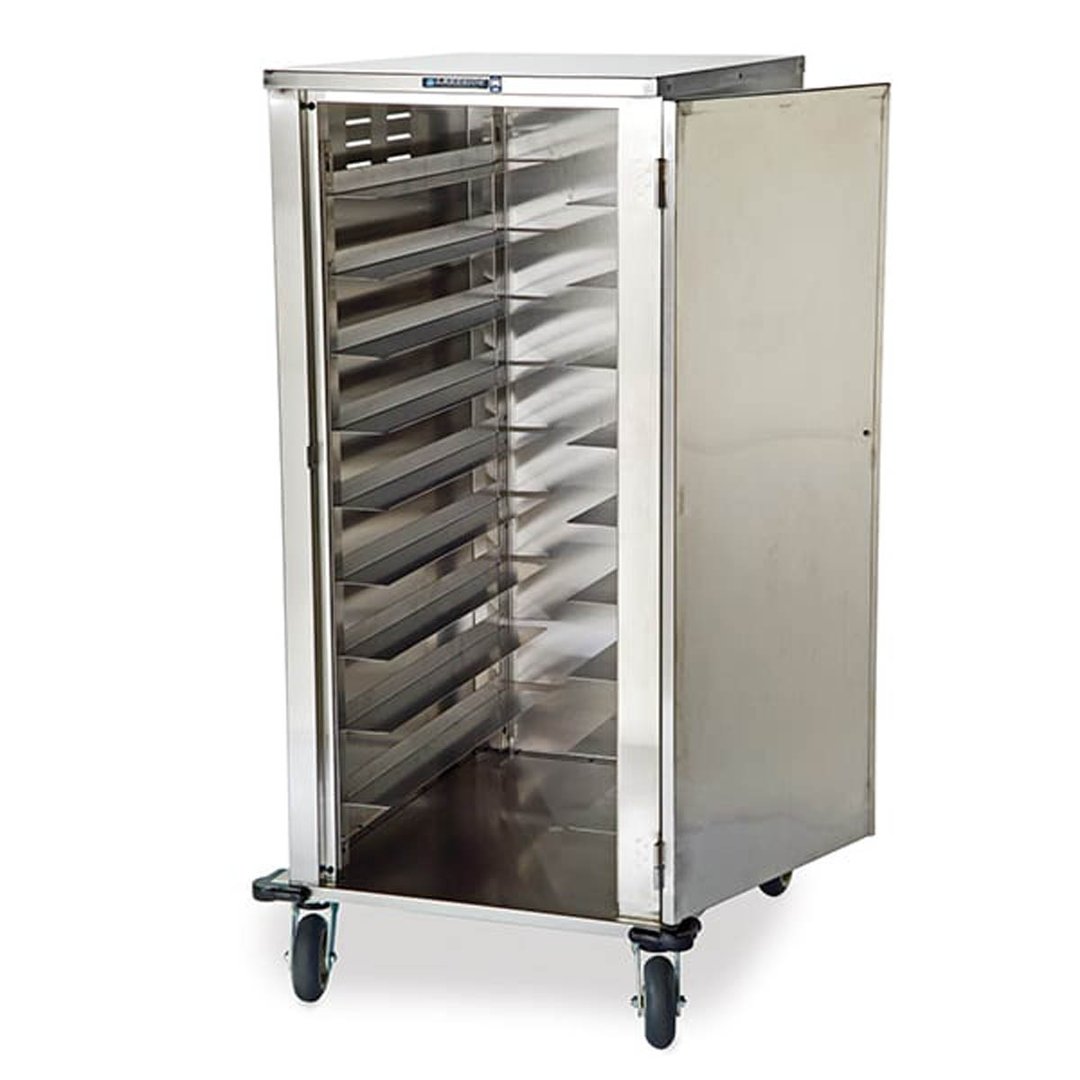

Lakeside 5620 Meal Tray Delivery Cabinet
Why use Lakeside 5620 Meal Tray Delivery Cabinet ?
Designed for delivery of insulated meal trays.
Lakeside 5620 Standard Features
- Accommodates 14” x 18” or 15” x 20” size trays, two per ledge.
- Doors open 270° for unobstructed access.
- Paddle latch door catch assures positive door closure and convenient one-hand opening.
- Sturdy welded tubular push handle for increased maneuverability.
- Cart body and removable stainless steel ledge panels are easily cleaned and sanitized.
- Base corner bumpers protect walls, furnishings and doors.
- Compartment floor drains facilitate interior cleaning.
- Increased capacity and visibility during transport.
Lakeside 5620 Specifications
- Unit shall be of stainless steel welded and riveted construction to accommodate 14” x 18” (356 x 457 mm) or 15” x 20” (381 x 508mm) trays.
- Material thickness shall be of 16 gauge for top and floor/base, 20 gauge for sides and back.
- Doors shall be of 20 gauge insulated double-pan design, and shall be mounted to unit frame with two each 3” (76 mm) heavy-duty stainless steel hinges.
- Hinges shall be welded to door and unit frame.
- Doors shall swing 270° to provide full access to tray compartments, and shall be easily removable by lifting off of hinges.
- Door latches shall be recessed paddle design.
- Tray ledges shall be 18 gauge stainless steel angle, welded to an 18 gauge stainless steel frame panel at 5¼” (133 mm) spacing.
- Ledge panels shall be shall accommodate both 14” x 18” or 15” x 20” trays (two trays per ledge), and shall be removable for easy cleaning.
- Tray compartments shall have vents on end panels and shall have perforated center floor drains.
- Unit base shall have 1¼” (32 mm) thick extruded PVC rounded bumpers mounted to corners.
- A 1” tubular push handle shall be welded to one end of the unit.
- Unit shall have four each extra-load plate type casters, two fixed and two swivel, mounted to a 14 gauge stainless steel dolly on unit base.
- Swivel casters shall have shielded ball bearing races and zerk filltings for lubrication of bearings.
- Caster wheels shall be 6” (152 mm) diameter with 2” wide, non-marking, rounded cushion tread.
- Unit shall be NSF listed
- Overall Size : 33" x 36-3/4" x 64" (838 x 933 x 1626)
- Ship Wt. : 218 (99)
From The Manufacturer
Elite Series™ Tray Delivery Cart, enclosed-type, single door, single compartment, (20) 14" x 18" or 15" x 20" tray capacity, (2) trays per ledge, 5-1/4" spacing, 270° door swing, corner bumpers, (2) 6" fixed and (2) 6" swivel Lake-Glide® casters, 2" wide cushion tread tires, 200/300 stainless steel construction, NSF, Made in USA
