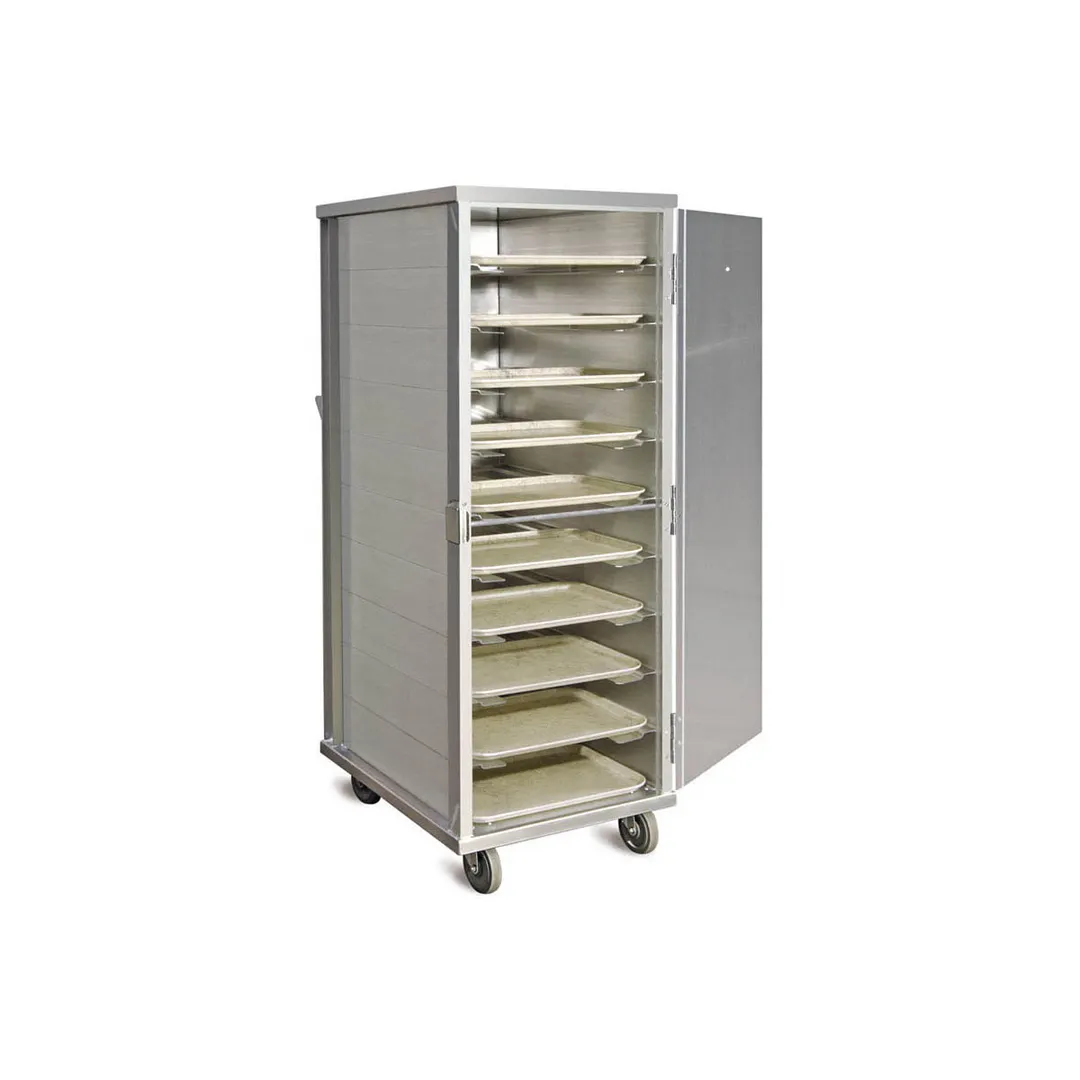

Piper Products AD-7S Aluminum Tray Delivery Carts
Why use Piper Products Carts ?
Piper Aluminum Delivery Carts feature fully welded construction to withstand years of meal tray delivery. Standard features include push handle, drain, 270 degree door swing, heavy-duty casters and rolled edge to act as a bumper.
Piper Products AD-7S Heavy Duty Casters
- 5” diameter x 1-1/4” wide swivel sealed heavy duty wheels, 2 with brakes
- 350 lb. capacity
- Maximum resistance to chemicals, acids, bases, alcohol, water and steam
- Maximum low temperature flexibility or superior performance even in freezing temperatures
Piper Products AD-7S Standart Features
- Base is a solid bottom constructed of .125” aluminum with a rolled edge to act as a bumper
- Two 14-gauge aluminized steel reinforcing channels attach the casters and support the bottom panel
- Frame consists of four extruded channels 1-1/2” x 5/8” x .094” aluminum. Corners have .190 extruded threesided channel supports for reinforcement
- Double pan top constructed of two .080” thick aluminum panels, fully welded corners
- Slides are 4-5/8” stepped with 6” spacing, .125 thick extruded aluminum continuously welded to the frame
- Door panel is .125” PVC coated aluminum attached to cart with bakery hinges, 270 degree door swing and card clip
- Back panel is .080” aluminum fully welded
- Push handle
- Drain in base of cart for ease in cleaning
- Positive gravity latch is provided to keep door closed during transport
- Side door latch holds door open
- One year parts and labor.
From The Manufacturer
Enclosed Tray Delivery Cart, aluminum, (1) 270° swing door with side latch, (7) tray capacity, (1) 14" x 18" or 15" x 20" tray per slide, 6" standard tray spacing, push handle & drain, 5" x 1-1/4" swivel sealed wheels with (2) brakes
