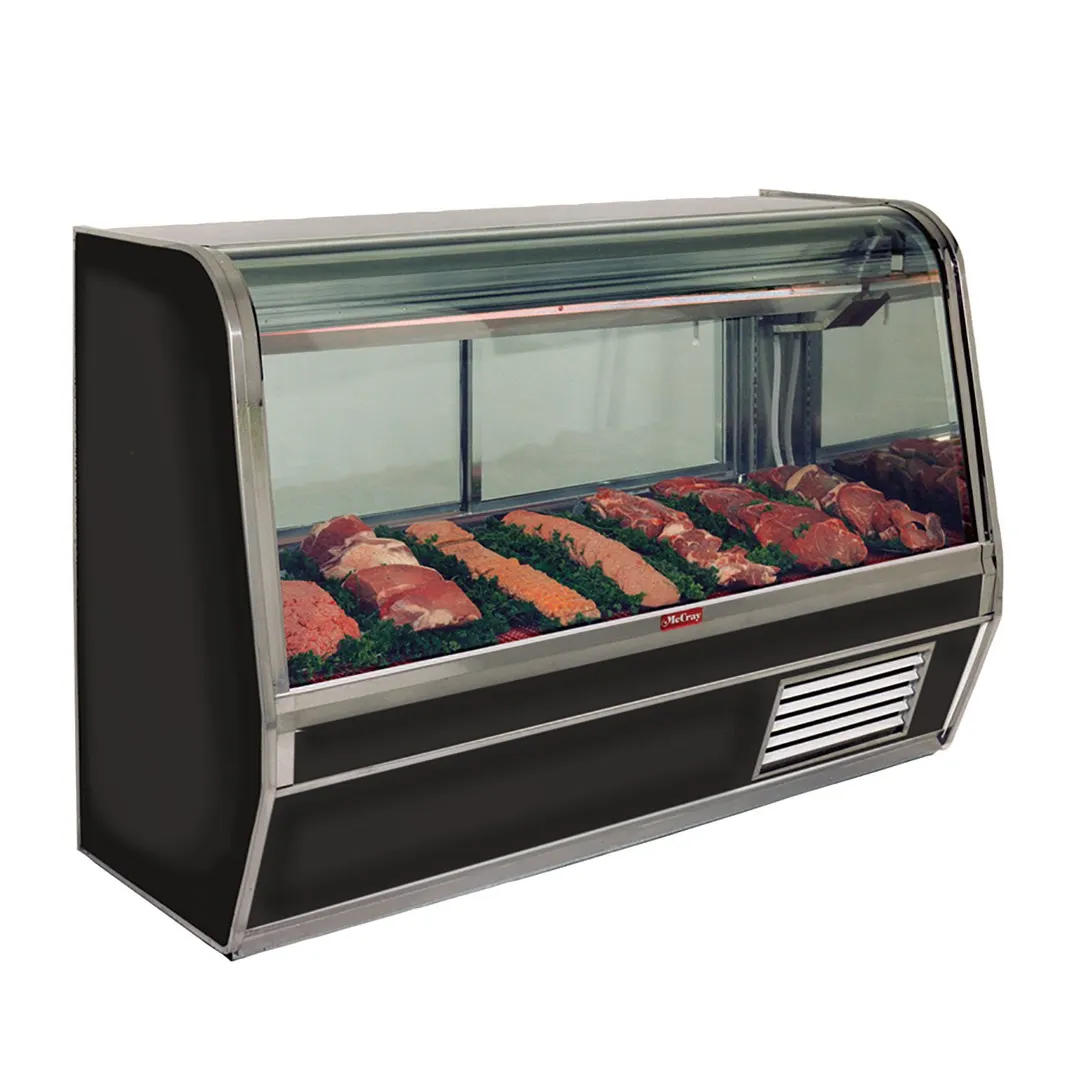

Howard-McCray SC-CMS32E-6C-BE-LED 74" Single Duty Curved Refrigerated Meat Display Case

SKU HOW-SC-CMS32E-6C-BE-LED

$9,812.00/Each

Lowest Price
Guarantee

Free Shipping

Howard-McCray SC-CMS32E-6C-BE-LED 74" Single Duty Curved Refrigerated Meat Display Case

Howard-McCray SC-CMS32E-6C-BE-LED 74" Single Duty Curved Refrigerated Meat Display Case

The image above may not exactly represent the product

$9,812.00/Each

Lowest Price
Guarantee

0% Interest for 30 Days with

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Resources

resources of Spec Sheet

Howard-McCray SC-CMS32E-6C-BE-LED Specs

Manufacturer	Howard-McCray
Model Number	SC-CMS32E-6C-BE-LED
Weight	710 lbs
Width	74″
Depth	30.5″
Height	50.5″
Service Type	full service
Display Case Type	single duty
Compressor Location	bottom mounted
Compressor HP	1/3 HP
Glass Style	curved
Refrigeration Type	gravity coil
Exterior Finish	black
Interior Finish	white
Voltage	115
Phase	1
Capacity (cu. ft.)	34.5

View All Howard-McCray Products >

Description

Reviews

The Howard-McCray SC-CMS32E-6C-BE-LED 32E Series 74" Self-Contained Endless Design Curved Glass Single Duty - Red Meat - Black

Howard-McCray SC-CMS32E-6C-BE-LED Standart Features

Construction and Electrical Requirements

UL Classified to ANSI/NSF 7
Foamed in place CFC free foam
Thermal insulated front glass
Heavy gauge steel super structure
Single duty display
Endless design allows for continuous line up
Drain is included for cleaning
1 rows of lighting at top of unit
115V with powercord
UL/CUL listed
115V-5AMP general purpose receptacle

Interior and Exterior

White, black, and stainless steel ends
Stainless steel heavy gauge mezzanine shelf (2 rows)
White aluminum floor-main deck shelves
Air insulated baffle (prevents moisture from dripping into display area)
Double pane rear removable doors
Newly designed rear compression door jamb
Removable front grille allows for cleaning
Removable rear grille for easy servicing
1" removeable end panels
1" Front bumper

Finishes and Refrigeration

White, black, and stainless steel front and ends
Stainless steel mirror trim
Stainless steel heavy gauge top - 20" W
Rear of unit is stainless steel brush finish at top
Bottom rear is designer white or glossy black
Copevap system (eliminates need for condensate pan)
R513A expansion valve system
Gravity coil located at inside top of unit
Humidity coil lacated at main deck (provides extra humidity)
Self contained unit
Automatic defrost electronically controlled (self contained units only)
Electronically maintains constant temperatures
Remotes available

Howard-McCray SC-CMS32E-6C-BE-LED Options

Stainless steel, laminate, or paint
Mirrored doors
Extra stainless steel mezzanine shelf
2" Front bumper
Door locks
Digital thermometer
Meat platters
Red meat bulbs

From The Manufacturer

Curved Glass Red Meat Service Case, 74"W, single duty, endless design, full length gravity coil system, self-contained refrigeration, extra full length humidity coil at the main deck, stainless steel top & interior ends, black exterior & white interior (mirrored stainless inside ends standard), LED lighting,1/3 HP, 115v/60/1-ph, 12.0 amps, cULus, UL EPH Classified, UL-Sanitation
