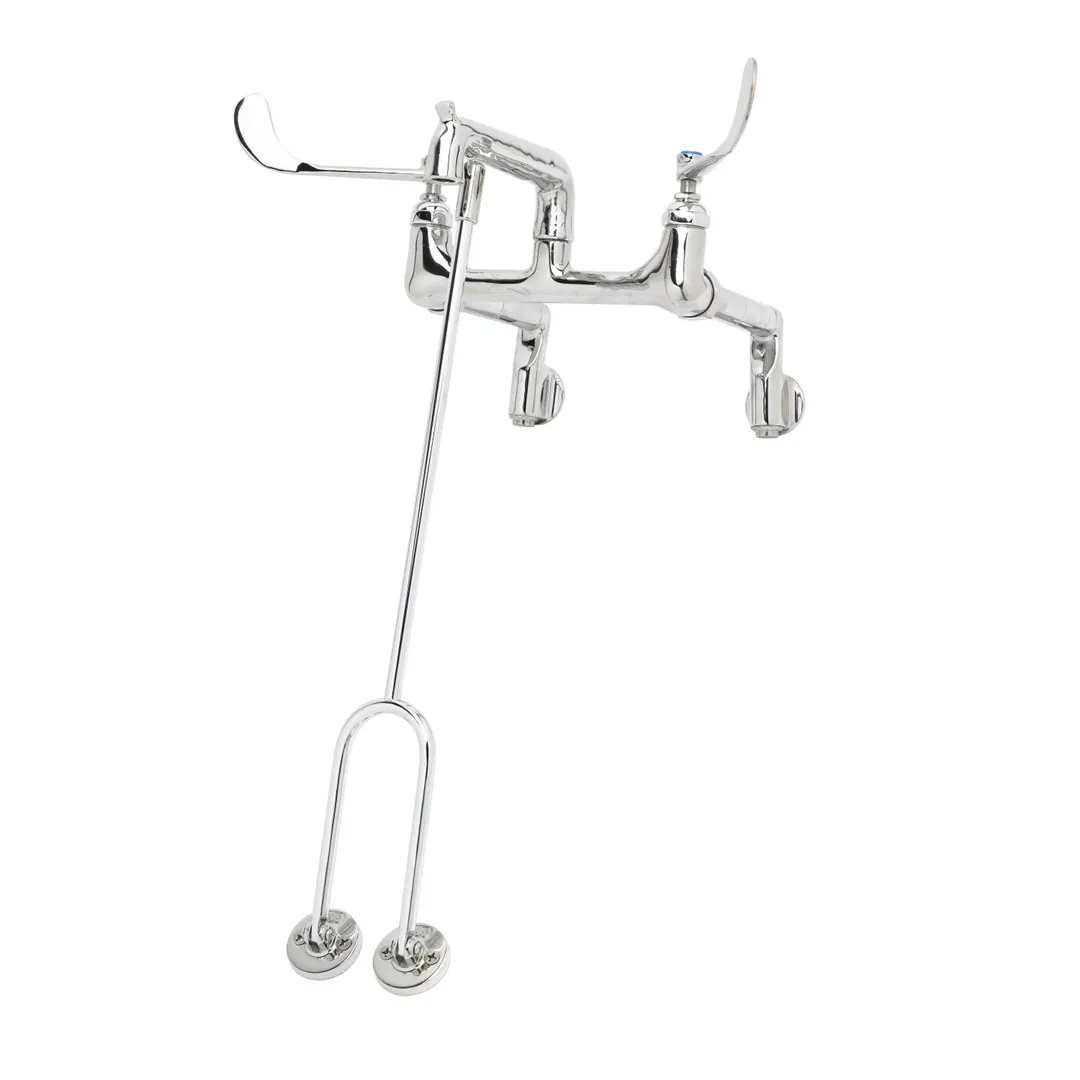

T&S Brass B-0650-02 Service Sink Faucet
General Info
The B-0650-02, Adjustable wall mount mixing faucet with polished chrome plated brass body, polished chrome plated brass spout with pail hook and plain end outlet, compression cartridges with spring checks, 6" wrist action handles, 1/2" NPT female extension inlets with built-in service stops and lower support rod.
T&S Brass B-0650-02 Features
- Adjustable wall mount mixing faucet with polished chrome plated brass body
- Spout with pail hook & plain end outlet
- 6" wrist action handles with color coded indexes
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- 1/2” NPT eccentric female inlets w/ Ø2” flanges & (2) 2 3/4" extensions
- Adjustable centers from 3 1/4” to 12 3/4” above and below centerline
- Built-in service stops in body
- Lower support rod
- Material: Polished chrome plated brass body, spout,inlets, support rods and handles
T&S Brass B-0650-02 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 11.50 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Service Sink Faucet, 8" centers, 5-1/4" clearance wall to center line of faucet, 15-3/4" from wall to center of outlet, 6" wrist action handles, 00XX flanges, integral stops, polished chrome-plated finish, bottom support wall brace
