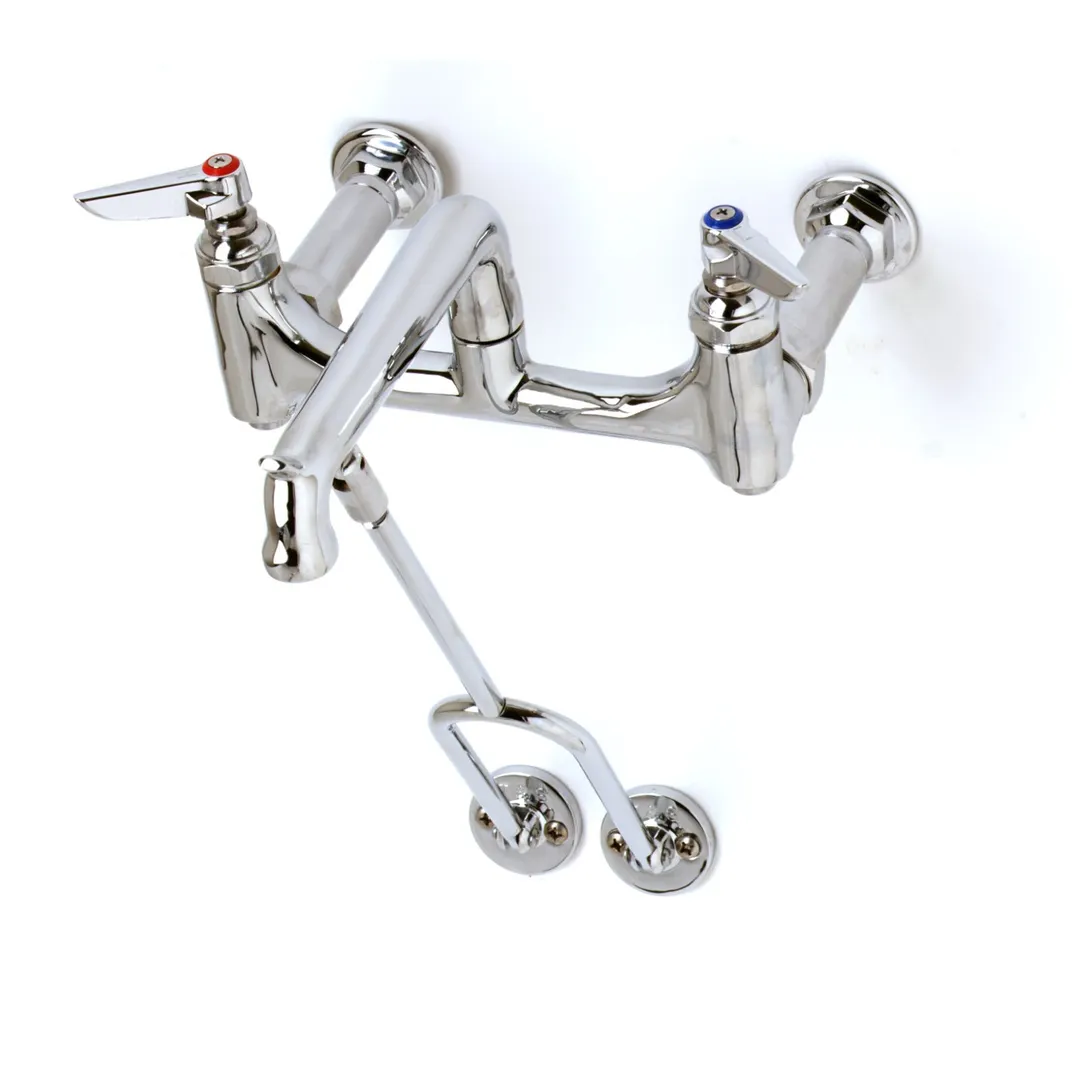

T&S Brass B-0650-BSTP Service Sink Faucet
General Info
The B-0650-BSTP, 8" wall mount mixing faucet with polished chrome plated brass body, polished chrome plated brass spout with pail hook and plain end outlet, compression cartridges with spring checks, lever handle, 1/2" NPT female extension inlets, built-in service stops in body and lower support rod.
T&S Brass B-0650-BSTP Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- Spout with pail hook & plain end outlet
- Lever handles with color coded indexes
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- 1/2” NPT eccentric female inlets w/ Ø2” flanges & (2) 2 3/4" extensions
- Adjustable centers from 3 1/4” to 12 3/4” above and below centerline
- Built-in service stops in body
- Lower support rod
- Material: Polished chrome plated brass body, spout,inlets, support rods and handles
T&S Brass B-0650-BSTP Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 18.45 GPM @ 60 ps
- Other Details : See spec. sheet
From The Manufacturer
Service Sink Faucet, 8" centers, 5-1/4" clearance wall to center line of faucet, 12-1/4" from wall to center of outlet, built in screwdriver stops, polished chrome-plated finish, bottom support wall brace
