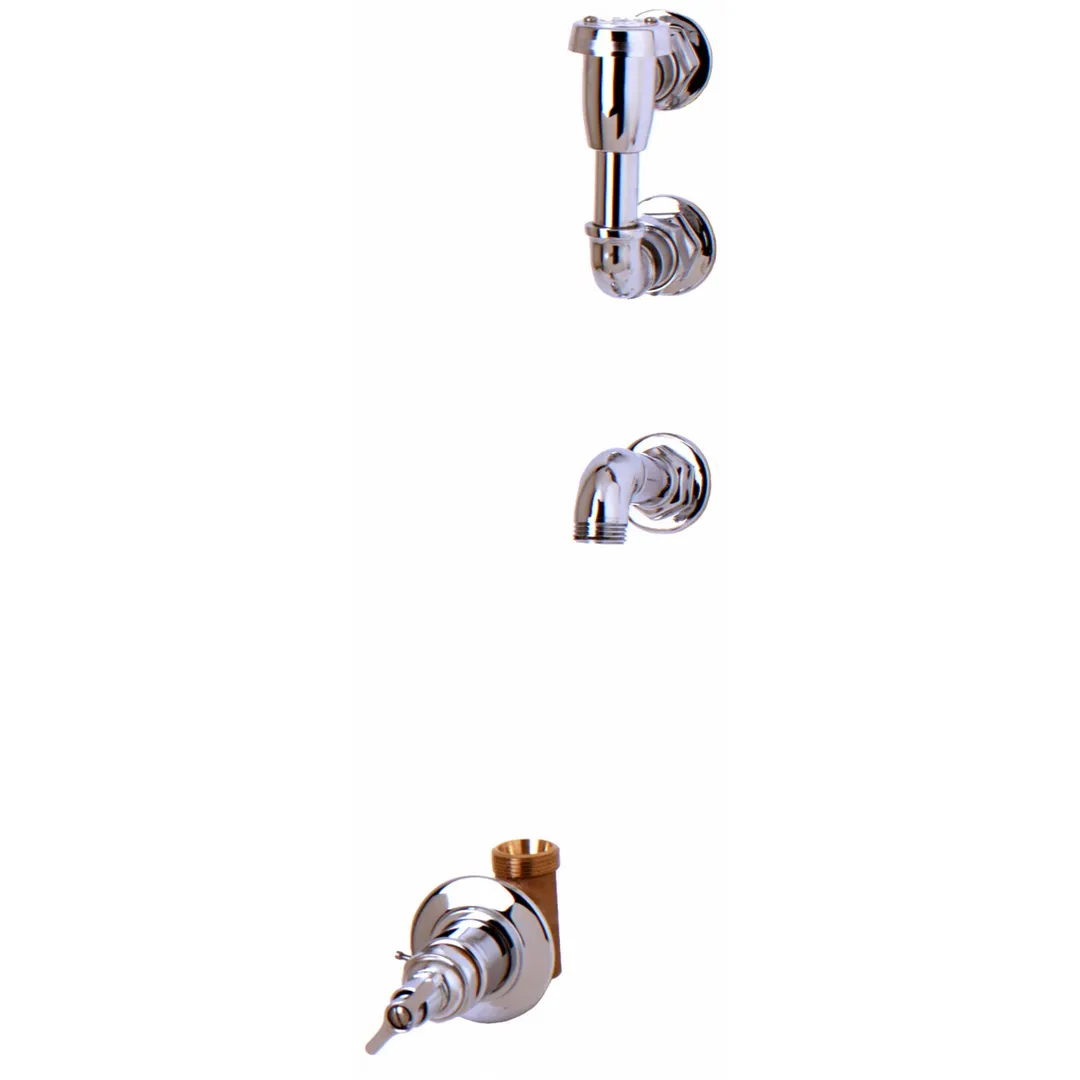

T&S Brass B-0692 Service Sink Hose Outlet
General Info
The B-0692, Wall mount, loose key style shutoff valve with spring check, brass body and polished chrome plated adjustable wall flange and sleeve, polished chrome plated brass spout with male garden hose outlet, elevated 1/2” atmospheric vacuum breaker assembly, 1/2” NPT female inlets and outlets.
T&S Brass B-0692 Features
- Wall mount, loose key style shutoff valve w/ brass body & tee handle
- Ø2 3/4” polished chrome plated brass adjustable wall flange & sleeve
- Spout w/ male garden hose outlet
- Loose key style shut off valve w/ spring check & tee handle
- Ø2” polished chrome plated wall flanges
- 1/2” NPT female inlets & outlets
- Elevated 1/2” NPT atmospheric vacuum breaker assembly
- Material: Brass shutoff valve body, polished chrome plated brass spout and wall flanges & metal tee handle
T&S Brass B-0692 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 15.80 GPM @ 60 ps
- Other Details : See spec. sheet
From The Manufacturer
Service Sink Outlet, concealed loose key valve with 1/2" IPS female inlet, nozzle with 3/4" garden hose thread outlet, elevated vacuum breaker
