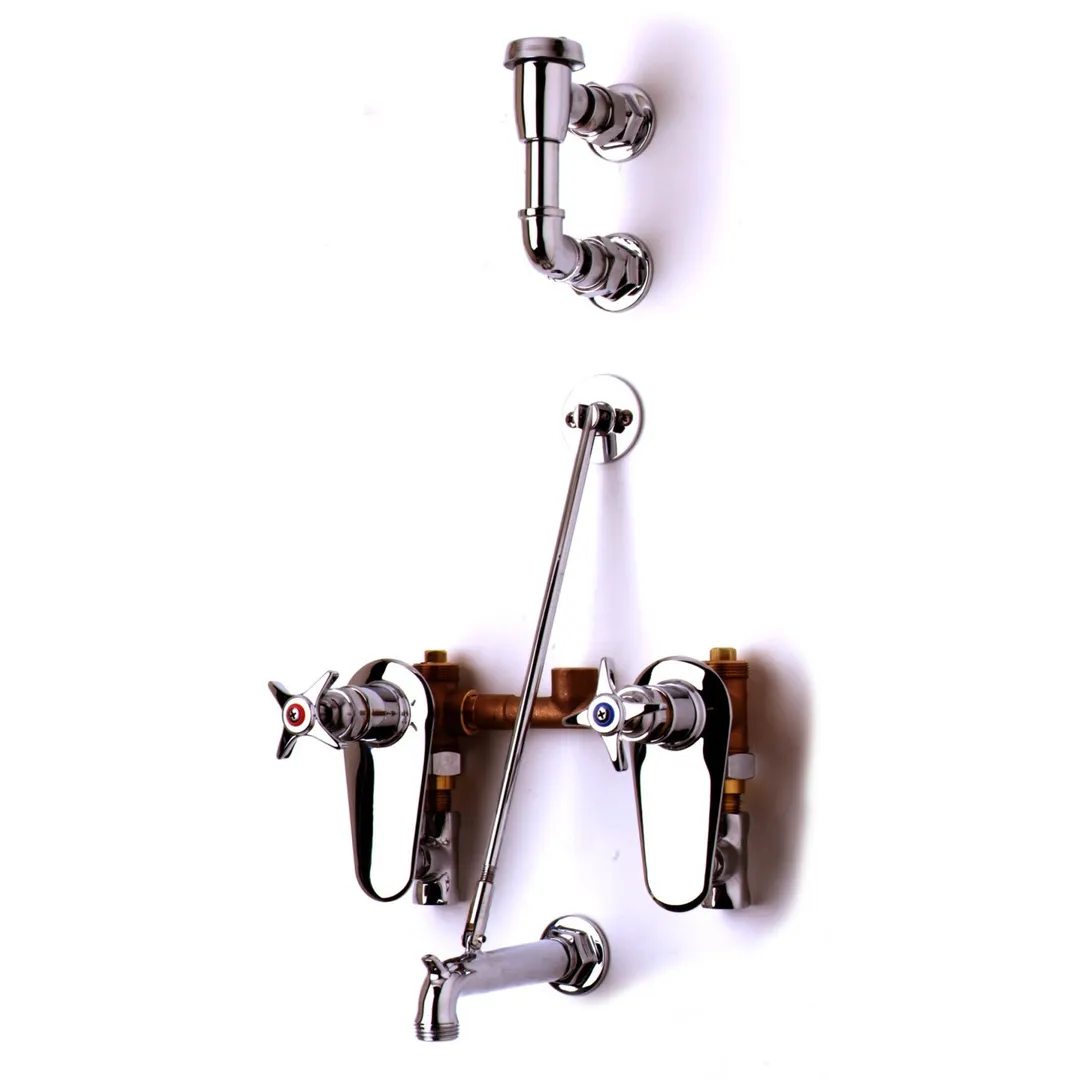

T&S Brass B-0695 Service Sink Faucet
General Info
The B-0695, 8" concealed bypass mixing valve with polished chrome plated brass adjustable wall flanges and sleeves, polished chrome plated brass spout with pail hook and garden hose male outlet, compression cartridges with spring checks, 4-arm handles, 1/2" NPT atmospheric vacuum breaker, upper support rod and 1/2" NPT female inlets.
T&S Brass B-0695 Features
- 8” concealed mixing faucet w/ brass body & 1/2” NPT female union inlet connections
- 2 5/8" adjustable wall flange
- Polished chrome plated spout assembly w/ Ø2” wall flange, pail hook & garden hose male outlet
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- 4-arm handles w/ color coded indexes
- Elevated 1/2” NPT atmospheric vacuum breaker assembly
- Upper wall support rod
- Material: Brass bodies with polished chrome plated adjustable flanges, support rod and chrome plated metal handles
T&S Brass B-0695 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 7.09 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Service Sink Fitting, concealed bypass mixing valves on 8" centers, roughing 2-1/2" minimum to 3-1/2" maximum center of inlets to finished wall face, braced nozzle with 3/4" garden hose thread & pail hook, without integral stops, elevated vacuum breaker
