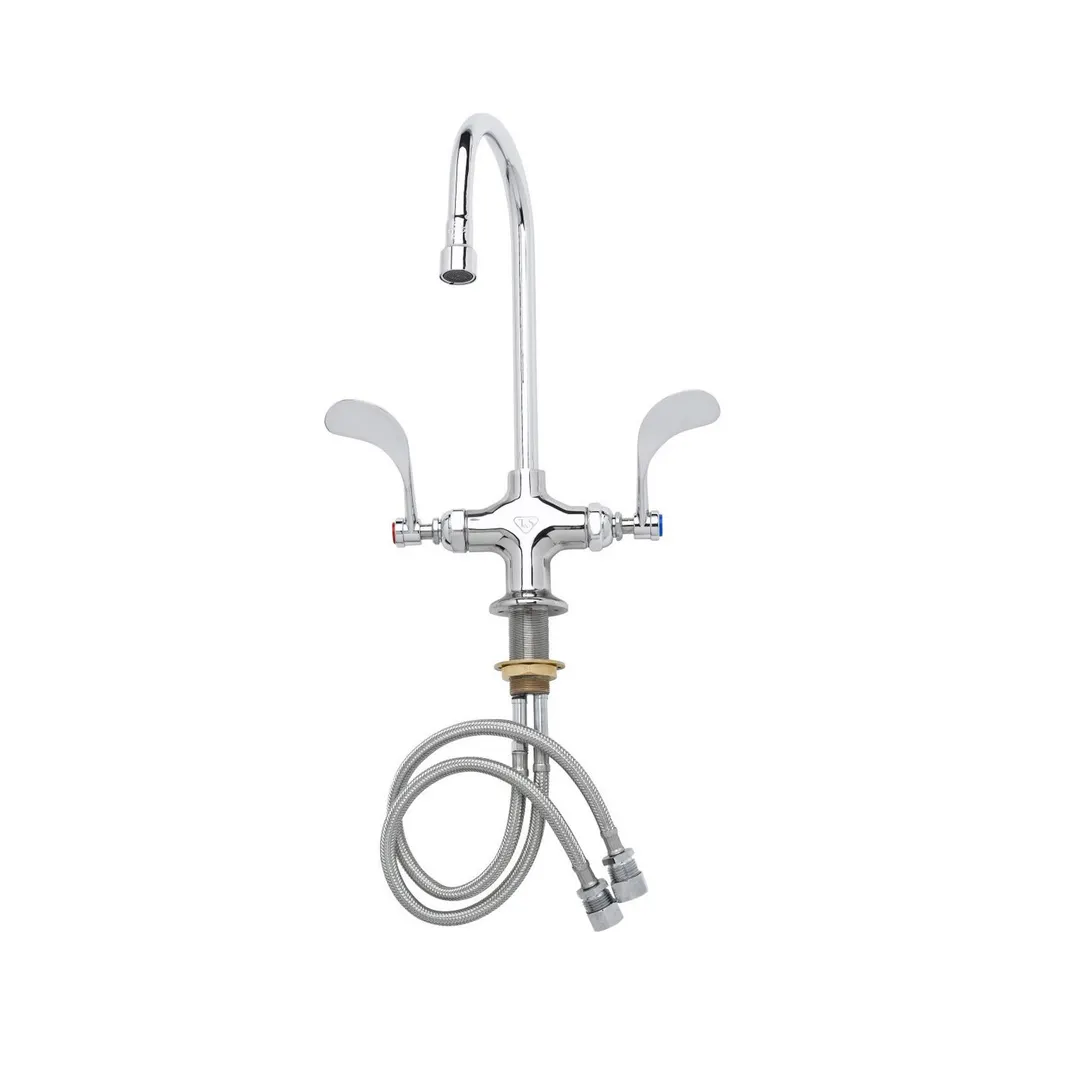

T&S Brass B-0300-WH4 Double Pantry Faucet
General Info
The B-0300-WH4, Single hole deck mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with stream regulator outlet, compression cartridges with spring checks, wrist action handles and 18" flexible stainless steel supply hoses with 1/2" NPSM / 5/8" O.D. compression connections.
T&S Brass B-0300-WH4 Features
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- 4" wrist action handles w/ color coded indexes & vandal resistant screws
- 18” flexible stainless steel supply hoses w/ 1/2” NPSM / 5/8” O.D. compression connections
- Material: Polished chrome plated brass body and spray valve body, stainless steel hose and chrome plated metal handles.
T&S Brass B-0300-WH4 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 8.67 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Double Pantry Faucet, deck mount, single hole base, 5-3/4" swivel/rigid gooseneck faucet (lock washer included), stream regulator outlet, quarter-turn Eterna cartridges with spring checks, 4" wrist action handles with color coded indexes, 18" flexible stainless steel supply hoses with 1/2" NPSM male inlets, low lead content, ADA Compliant
