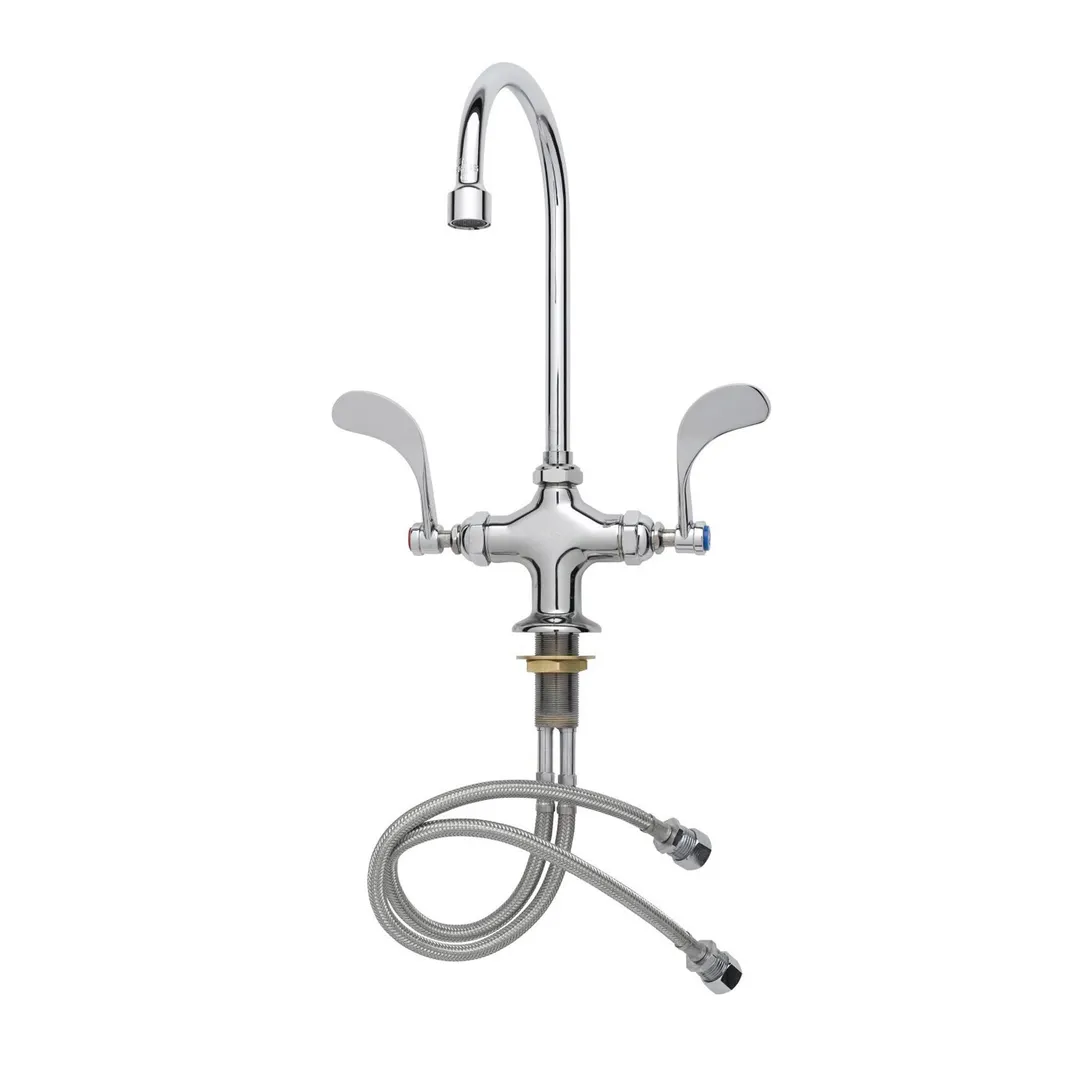

T&S Brass B-0301-W4-QT-WS Double Pantry Faucet
General Info
The B-0301-W4-QT-WS, Single hole deck mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with 1.5 GPM vandal resistant aerator, compression cartridges with spring checks, 4" wrist action handles and18" flexible stainless steel supply hoses with 1/2" NPSM / 5/8" O.D. compression connections.
T&S Brass B-0301-W4-QT-WS Features
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- 1.5 GPM vandal resistant aerator, Series 6 (B-0199-06-WS)
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- 4" wrist action w/ color coded indexes
- 18” flexible stainless steel supply hoses w/ 1/2” NPSM / 5/8” O.D. compression connections
- Material: Polished chrome plated brass body & tubular spout, chrome plated metal handles
T&S Brass B-0301-W4-QT-WS Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 1.5 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Double Pantry Faucet, deck mount, single hole base, 6" swivel gooseneck, 4" wrist handle, 18" stainless steel flex hose, quarter-turn compression cartridge, vandal resistant, 1.5 GPM aerator, 1/2" NPT, ADA Compliant
