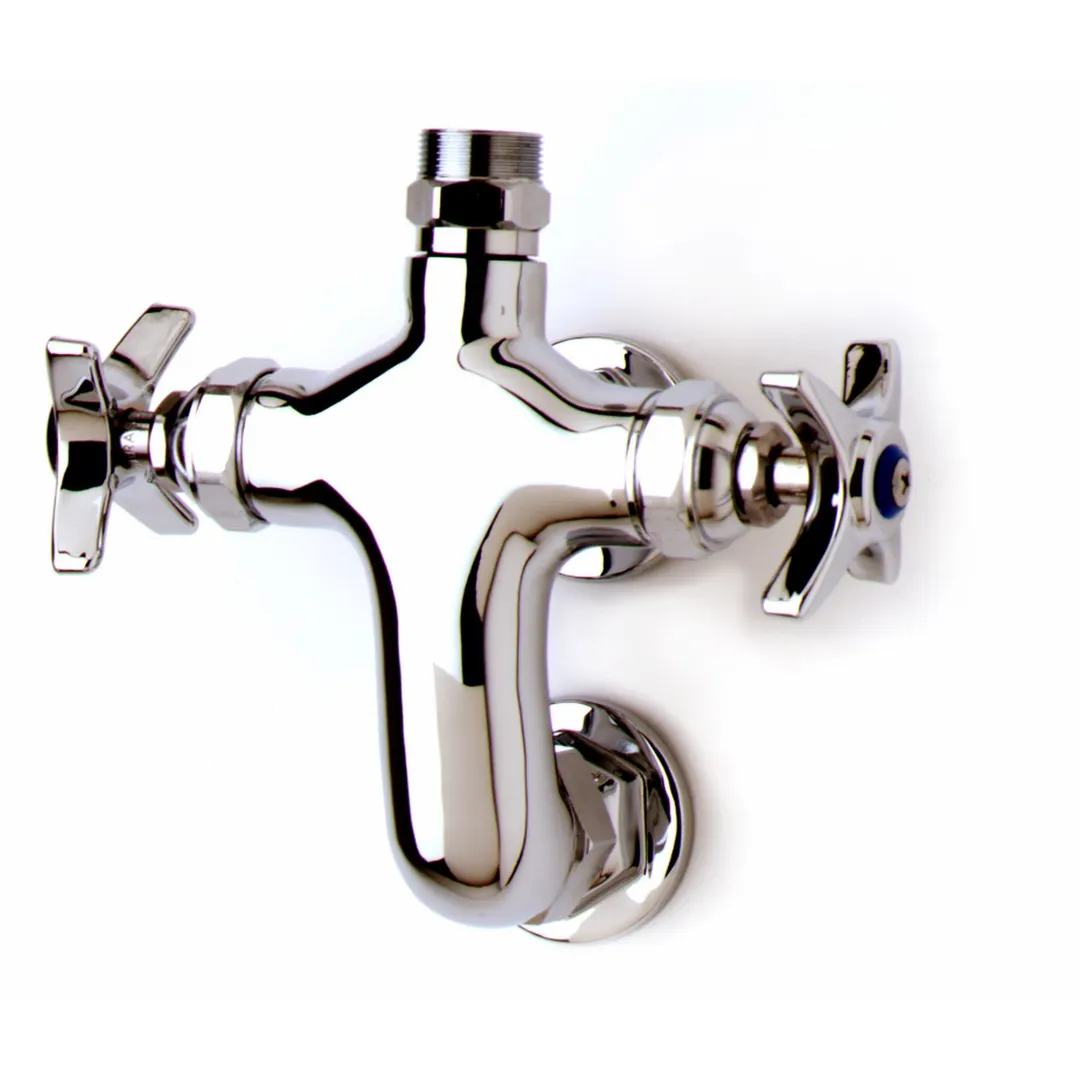

T&S Brass B-0316-LN Double Pantry Faucet
General Info
The B-0316-LN, Wall mount vertical mixing faucet with polished chrome plated brass body, swivel outlet (less nozzle), compression cartridges with spring checks, 4-arm handles and 1/2" NPT female inlets.
T&S Brass B-0316-LN Features
- Wall mount vertical mixing faucet w/ polished chrome plated brass body
- Swivel outlet accepts T&S swing nozzles
- Lock washer provided for rigid application
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent the cross flow of water
- 4-arm handle w/ color coded indexes
- Adjustable centers from 2 3/4" to 3 1/4"
- 1/2” NPT female inlets with 2" flanges
- Material: Polished chrome plated brass body and chrome plated metal handles
T&S Brass B-0316-LN Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 17.80 GPM [67.4 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
Pantry Faucet, double, splash-mounted, swivel base only, with four-arm handles, 1/2" IPS female flanged inlet, 3" vertical centers, quarter-turn Eterna cartridges, low lead, ADA Compliant
