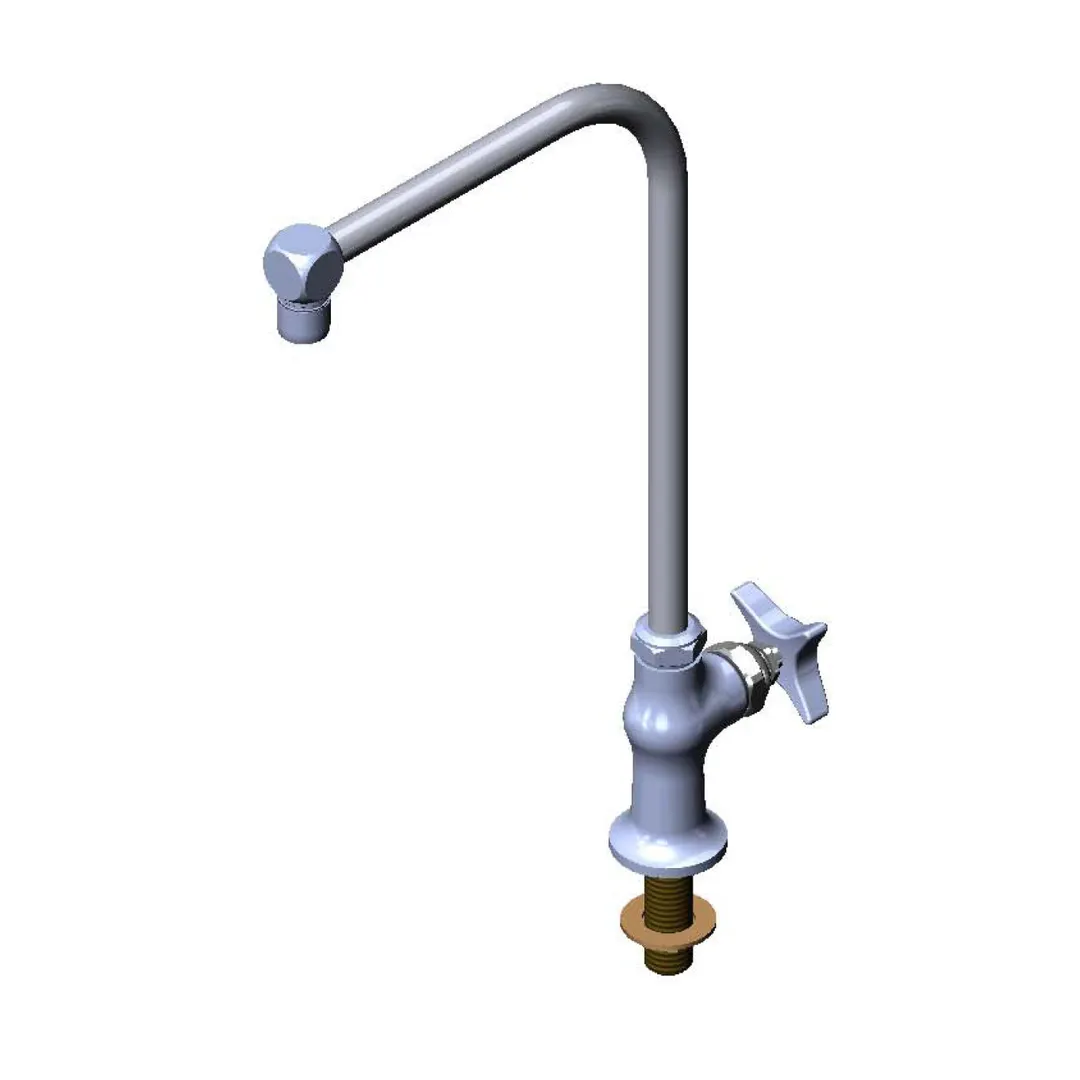

T&S Brass B-0318-02 Pot Filler Faucet
General Info
The B-0318-02, Single hole single temperature deck mount faucet with polished chrome plated brass body, 8 11/16" 90 high-arc swivel/rigid gooseneck with 2.2 GPM aerator, compression cartridge with spring check, 4-arm handle and 1/2" NPSM male inlet.
T&S Brass B-0318-02 Features
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- 8 11/16” 90 high-arc swivel/rigid gooseneck
- Includes lock washer to convert swivel to rigid gooseneck
- 2.2 GPM aerator, Series 1 (B-0199-01)
- Quarter-turn Eterna compression cartridges w/ spring check
- 4-arm handle w/ red color coded index
- 1/2” NPSM male inlet
- Optional tailpiece and nut for 1/4” NPT male connection
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handle
T&S Brass B-0318-02 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Faucet, B-0318 modified, 4-arm handle & red index, extended height, quarter-turn Eterna cartridges, low lead, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
