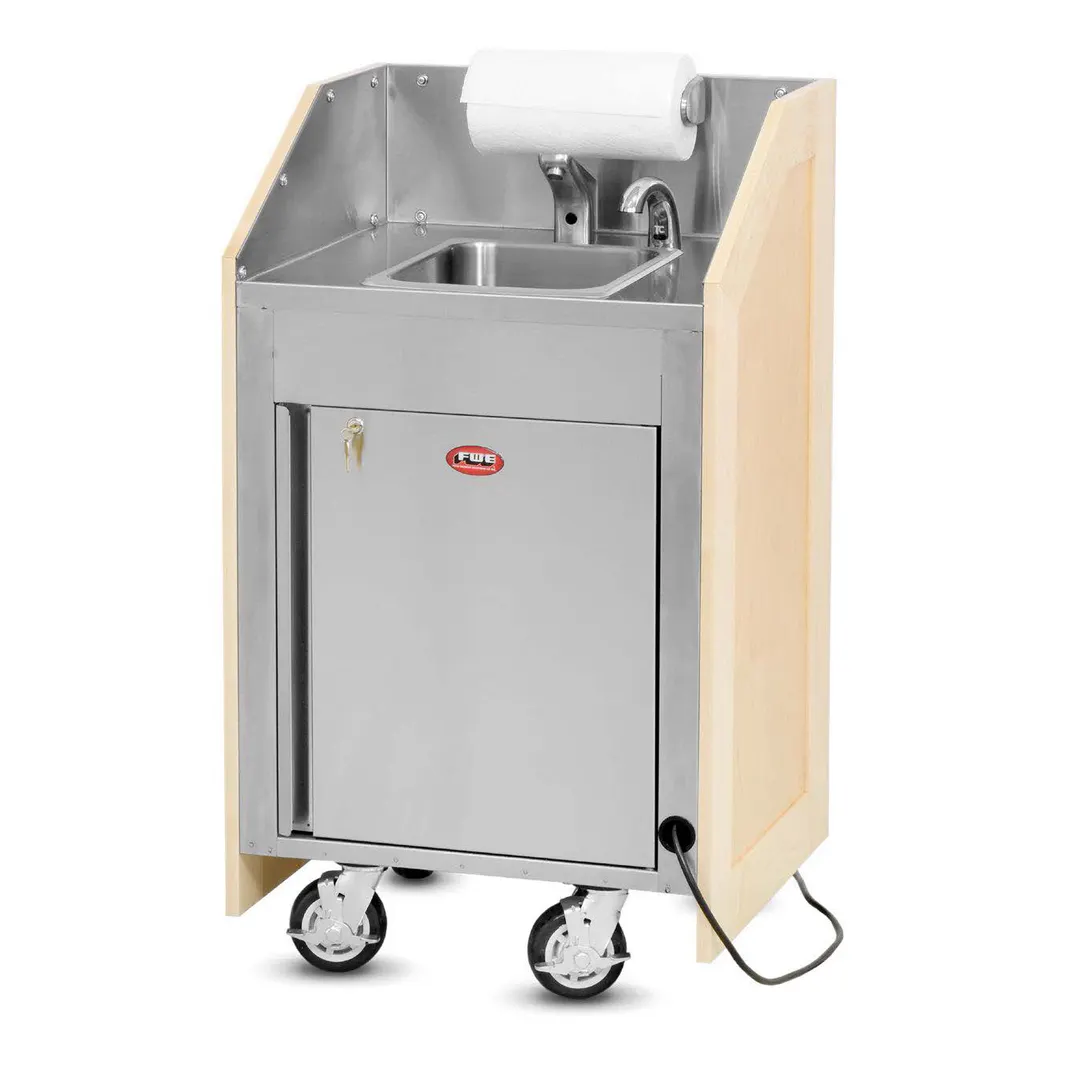

FWE HS-24-ES Executive Series Self-Contained Hand Washing System, Electric

Why use FWE HS-24-ES Handwashing System ?

Contactless portable hand sink with water heater is self-contained to allow safe hand washing and sanitizing in remote locations

FWE HS-24-ES Standard Features

• FWE’s contactless portable hand sinks are perfect for any location, making it possible to offer practical hand washing when it is needed to meet safety standards
• Faucet and soap dispenser both have highly responsive, automatic motions sensors for safe and touchless hand washing
• Made for transport applications - FWE hand sinks are fully constructed of stainless steel and equipped with heavy-duty maintenance free casters
• Marine top edge and backsplash prevent spills and drips while on the move
• Provided with a 5 gallon fresh water tank for consistent draw and a 7 gallon waste water tank to hold drainage
• Water heater with adjustable thermostat (65°-145°F) quickly warms water for dispensing when needed
• Lockable door prevents unauthorized access for safety and security
• Paper towel holder and cord exit can be easily moved to either side, providing flexibility in field placement (only one cord exit on HS-24-ES)

FWE HS-24-ES Specifications

• CONSTRUCTION. Heliarc welded, single unit construction of 20 gauge stainless steel with easy-to-clean coved corners. Front edge shall have raised marine nosing to contain water. Backsplash shall be 8.5" high
• DOORS AND LATCHES. Flush mounted, stainless steel door. Full length magnetic recessed workflow handle with locking cam latch. Heavy duty pin style hinges.
• CASTERS. Maintenance-free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake.
• WATER CAPACITY. The unit shall include one (1) five gallon fresh water tank and one (1) seven gallon waste water tank. Electric water heater with adjustable thermostat provides a temperature range of 65°-145°F (19°-62°C) and heats up to 2.7 gallons of water. Glass insulated tank for thermal efficiency and fast recovery
• FAUCET CHARACTERISTICS. Faucet shall be motion activated and powered by four (4) AA Batteries. Faucet shall have a concealed thermostat control. Faucet water pressure shall be two (2) gallons per minute.
• SOAP DISPENSER CHARACTERISTICS. Soap dispenser shall be motion activated and shall be powered by four (4) D batteries. Recommended soap refill: Rubbermaid FG4015411 800ml.
• ELECTRICAL CHARACTERISTICS. 3 wire grounded 10 foot extension power cord and plug. HS-24 cord and plug are fed through right side cord exit. Alternative left side cord exit provided. HS-24-ES cord and plug are fed through the front of the unit only. See electrical data chart above for amperage and receptacle configuration.
• OVERALL EXTERIOR DIMENSIONS IN. (mm) : 44.25″ (1131) h x 24.5″ (623)d x 24.75″ (629)w
• CASTER SIZE : 5"
• SHIP WT. LBS. (KG) : 235 (93)
