T&S Brass B-0296 Big-Flo Mixing Faucet
General Info

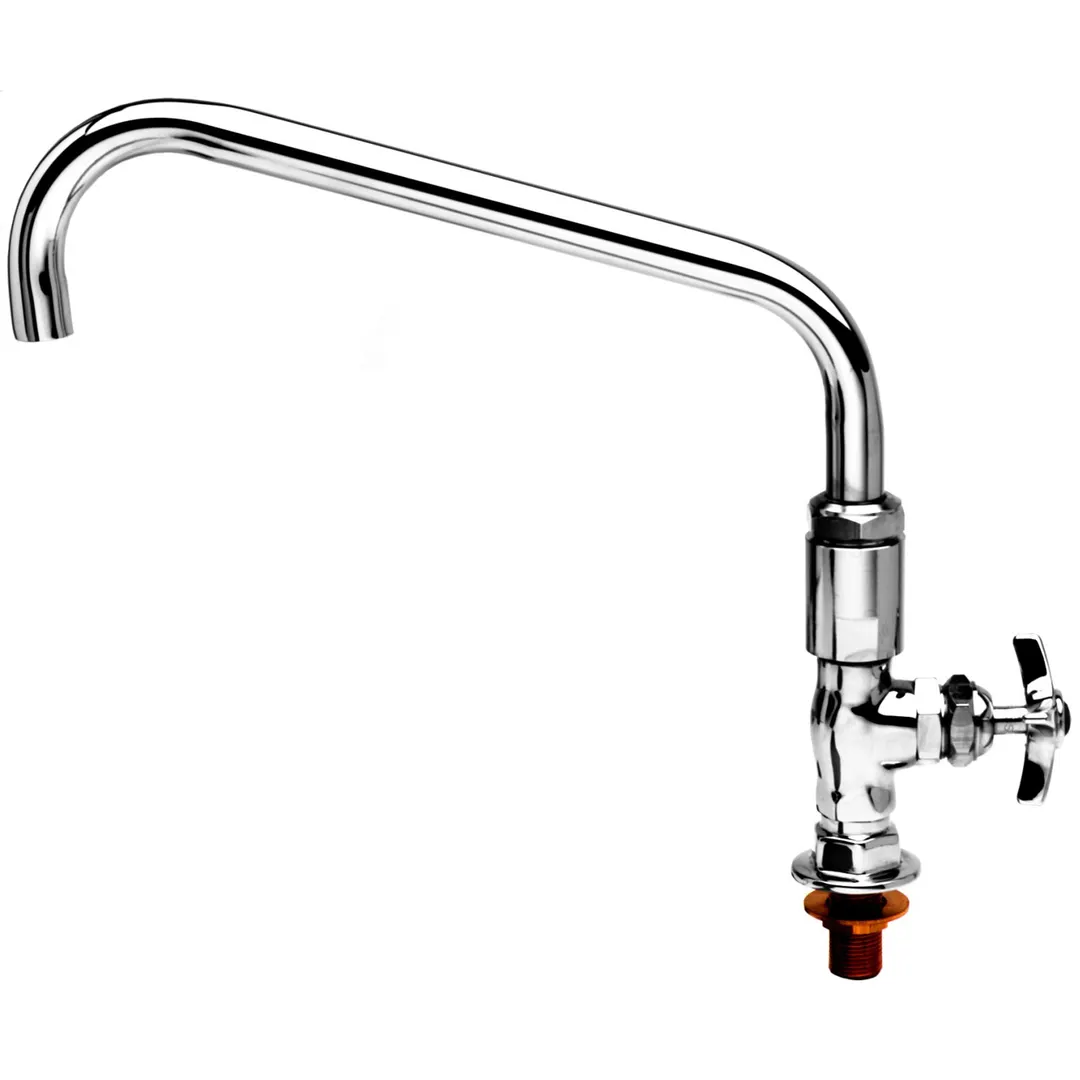

The B-0296, Single hole single temperature large flow deck mount faucet with polished chrome plated brass body, 12" swing nozzle with plain end outlet, compression spindle, 4-arm handle, and 1/2" NPT male inlet.
T&S Brass B-0296 Features
- Single hole single temperature Big-Flo deck mount faucet
- 12” Big-Flo plain end swing nozzle
- Lock washer provided for rigid application
- Big-Flo compression spindle
- 4-arm handle w/ blue index
- 1/2” NPT male inlet
- Ø 2” deck flange
- Material: Polished chrome plated brass body, chrome plated tubular spout and chrome plated metal handles
T&S Brass B-0296 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 8.70 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Big-Flo Pot & Kettle Sink Faucet, deck mount, single temperature control valve, 1/2" female inlet, includes B-0425 supply nipple, 12" swing nozzle, 175°F four arm handles, 9-3/4" deck to outlet of nozzle
