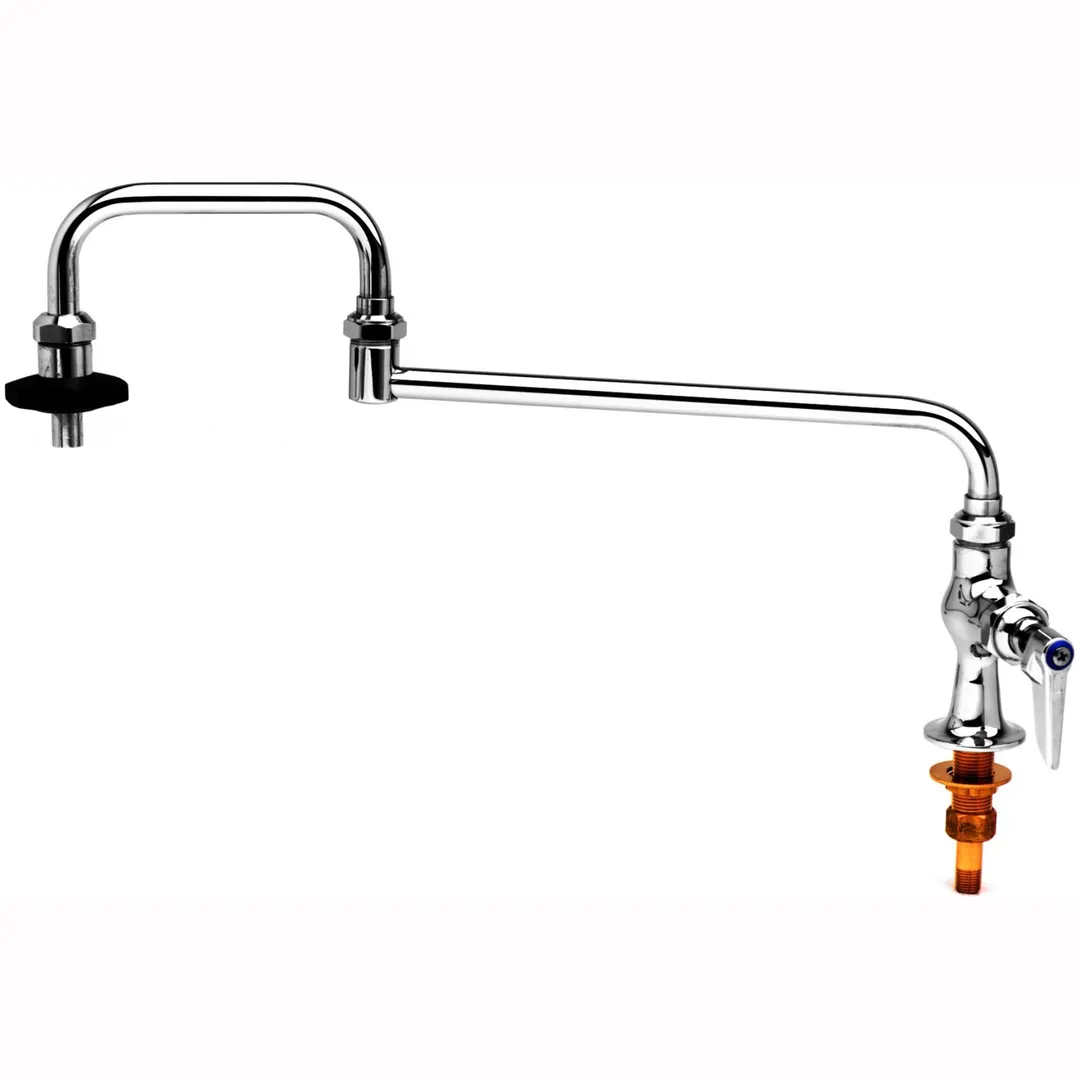

T&S Brass B-0591 Single Pantry Faucet
General Info
The B-0591, Single hole single temperature deck mount faucet with polished chrome plated brass body, 24" double joint swing nozzle, on-off volume control outlet with insulated grip, compression cartridge with spring check, lever handle and 1/2" NPSM male inlet.
T&S Brass B-0591 Features
- Single hole single temperature deck mount pot filler faucet
- 24” double joint swing nozzle
- Lock washer provided for rigid application
- On-off volume control outlet with insulated grip
- Quarter-turn Eterna compression cartridge w/ spring check
- Lever handle w/ color coded index
- 1/2” NPSM male inlet
- Tailpiece and nut to provide 1/4” NPT male connection
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handle
T&S Brass B-0591 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :5.23 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pot Filler Faucet, deck mount, double-jointed, 24"L, with insulated off-on control valve at outlet, 1/2" NPS single shank, 1/4" union type tailpiece
