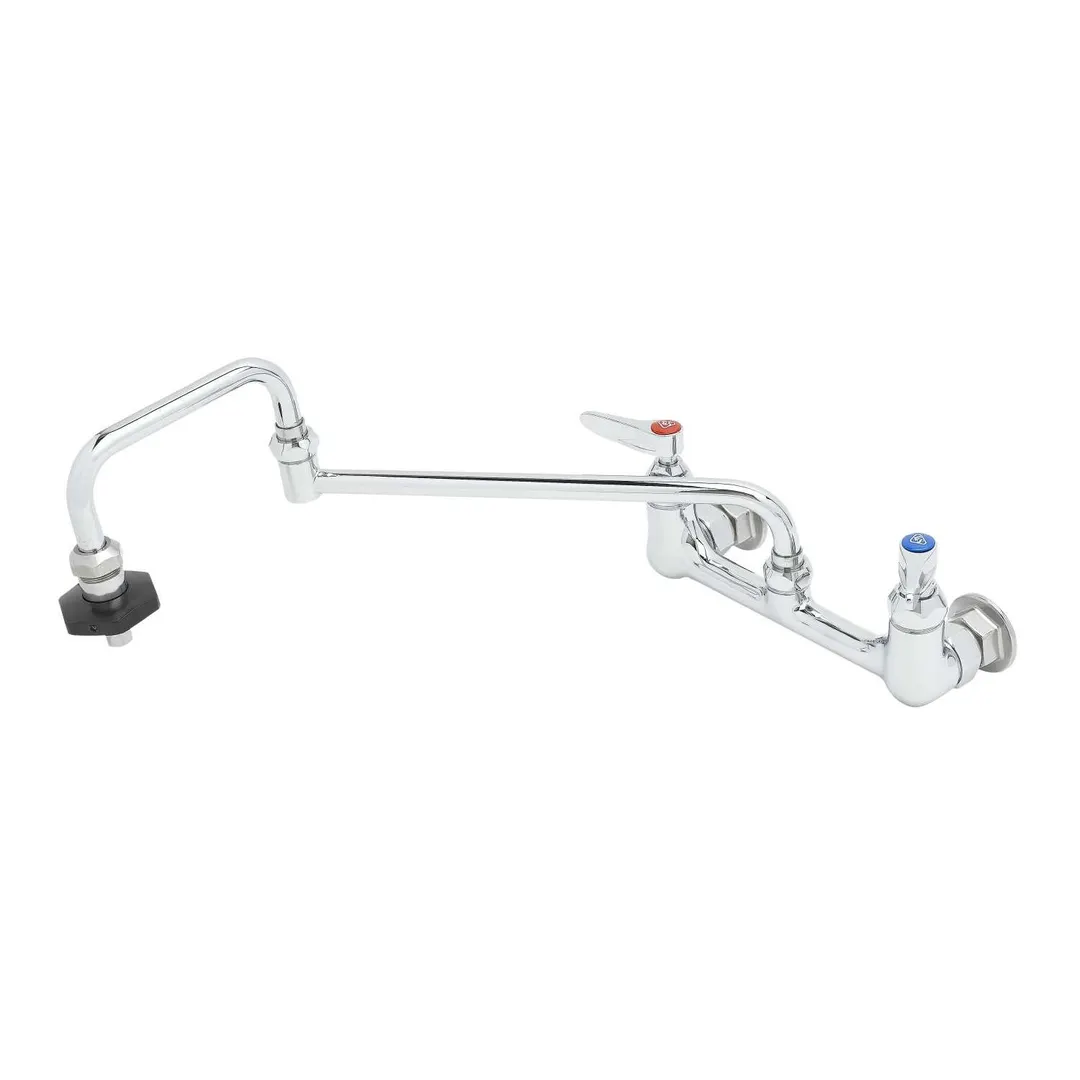

T&S Brass B-0597-LF20 Pot Filler Faucet
General Info
The B-0597-LF20, 8" wall mount mixing faucet with polished chrome plated brass body, 18" double joint swing nozzle with heat resistant handle and 2.2 GPM flow control disc, compression cartridges with spring checks, lever handles and1/2" NPT female inlets.
T&S Brass B-0597-LF20 Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- 18” double joint swing nozzle with 12” back nozzle, 6” front nozzle and heat resistant handle & 2.2 GPM flow disc in swivel piece
- Lock washer provided for rigid application
- Quarter-turn Eterna compression cartridge w/ spring check
- Lever handles with color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2" flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular nozzle and heat resistant thermoplastic handle
T&S Brass B-0597-LF20 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pot Filler Faucet, wall mount mixing faucet, 8" centers, double-jointed, 18"L, with single control, insulated on-off volume control grip on tip of nozzle, 2.2 GPM flow control, quarter-turn Eterna cartridge with spring check, lever handles with color coded indexes, 1/2" NPT female inlet, chrome-plated brass finish, low lead, NSF, cCSAus
