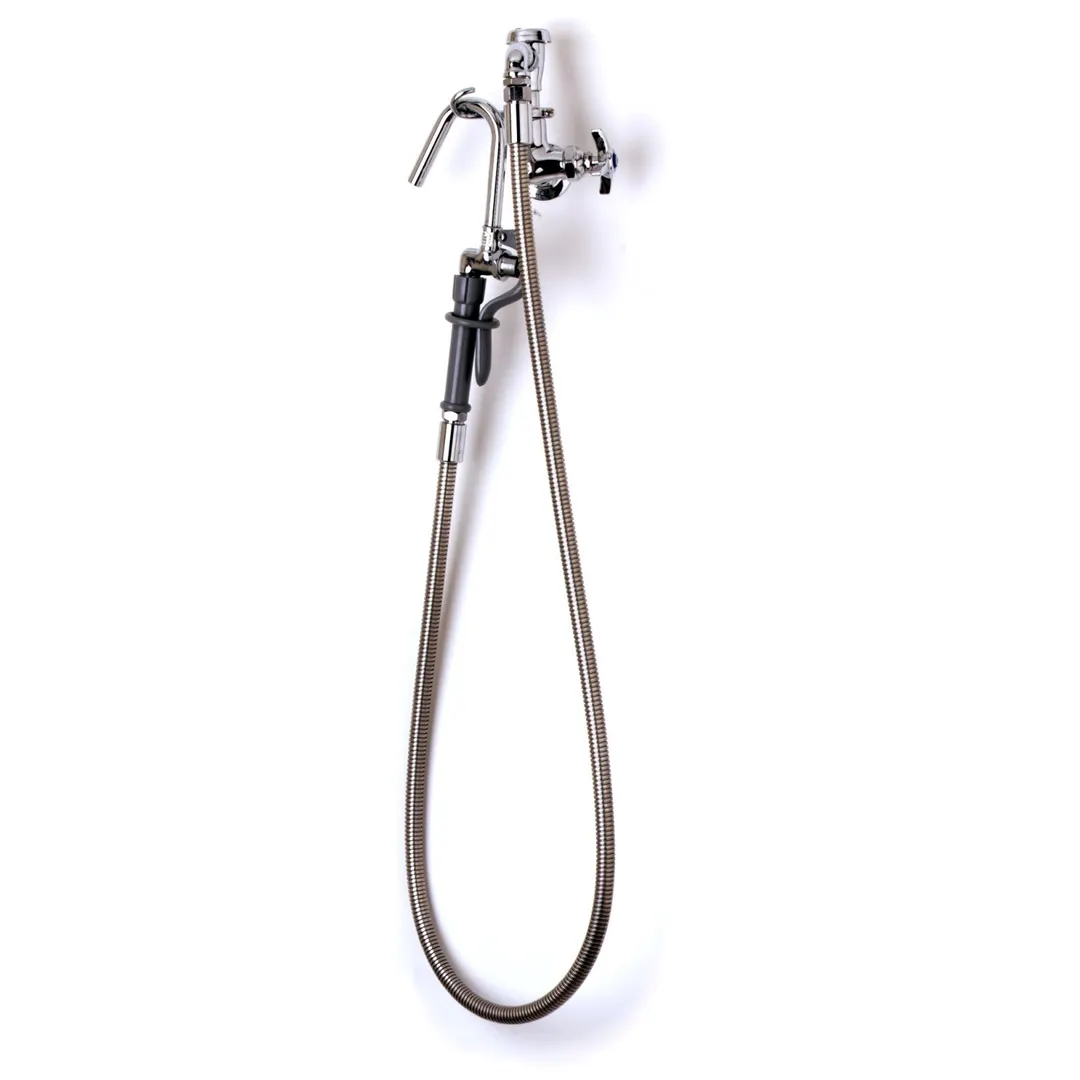

T&S Brass B-0606 Pot and Kettle Filler
General Info
The B-0606, Wall mount pot and kettle filler, chrome plated brass body with single control, atmospheric vacuum breaker, 68" flexible stainless steel hose, hook nozzle, compression cartridge with spring check, 4-arm handle and 1/2" NPT female inlet.
T&S Brass B-0606 Features
- Wall mount, single control pot filler
- Atmospheric vacuum breaker
- 68” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- Hook nozzle
- Quarter-turn Eterna compression cartridge w/ spring check
- 4-arm handle w/ blue index
- Spray valve holder
- 1/2" NPT female inlet with 2" wall flange
- Material: Polished chrome plated brass body and stainless steel hose
T&S Brass B-0606 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 3.31 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pot & Kettle Filler Assembly, wall mount, 3-1/2" hook nozzle, single 4-arm handle with blue index, Eterna cartridge with spring check, vacuum breaker, 68" flexible stainless steel hose, 4-arm handle & spray valve, hooked nozzle, 1/2" NPT female inlet, low lead content
