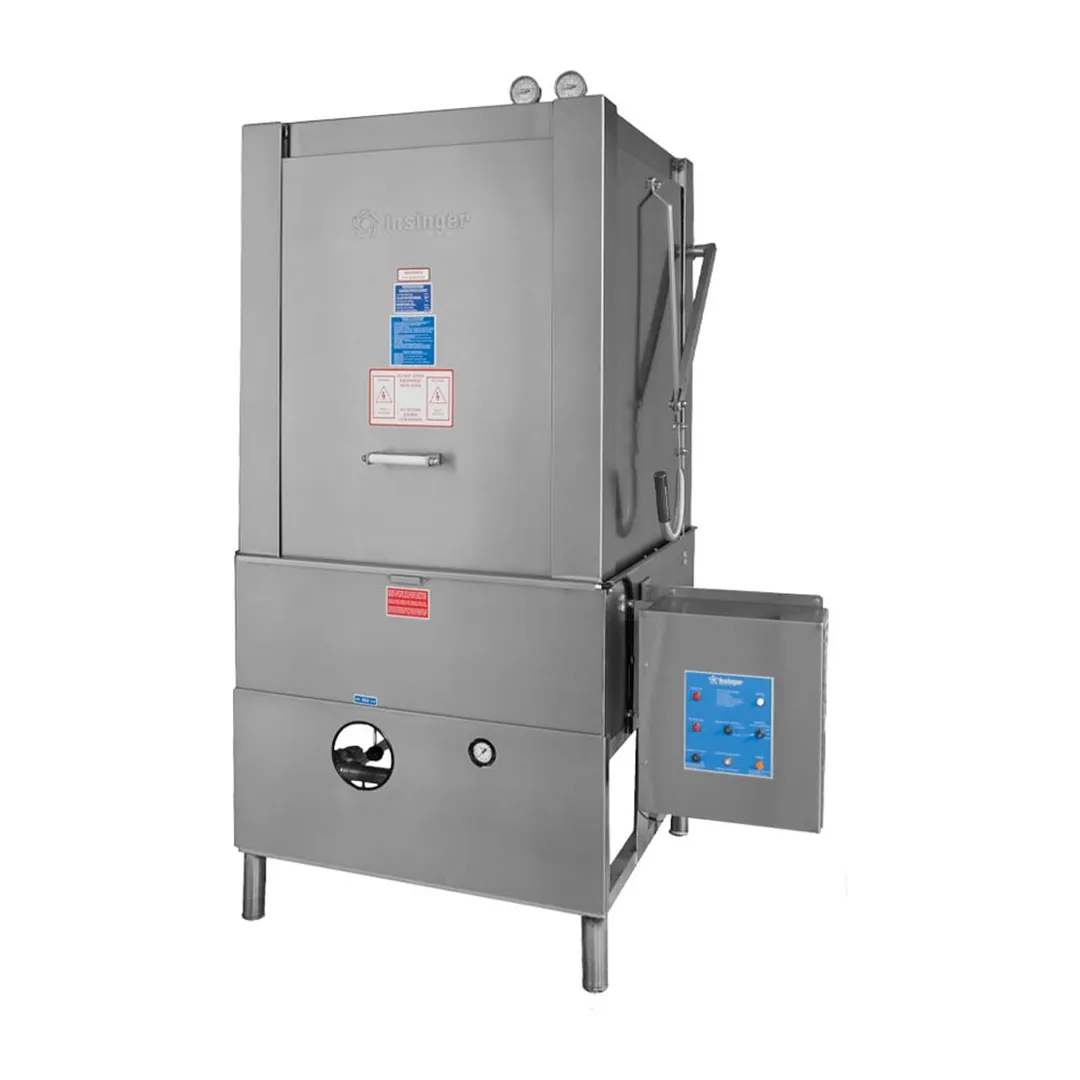

Insinger CA-3C 36" Door Type Pot/Pan/Utensil Dishwasher
Insinger CA-3C Standard Features
- Automatic door type utensil washer with timed wash and rinse cycle
- Capacity- 25 24" x 28" racks per hour or 150 bun/pans per hour or 100 steam table (2" thick) pans per hour
- Fully automatic operation with power on/off button
- Cycle starts when doors are closed
- Rinse pressure regulator
- Hold-Down Rack System for secure washing
- Rollers make getting large racks in and out easier
- Wash tank heat: electric, steam injection
- Pressure regulator
- Single point electrical connection
- Low water protection
- Door safety switches
- 1 vent opening with adjustable damper
- Inspection door
- Vacuum breaker on all incoming water lines
- Capillary thermometer for wash and final rinse
- 304 stainless steel construction
- Stainless steel front panel
- Automatic fill
- Detergent connection provision
- Hold-down rack system
- Manual bypass selector switch
- Side-mounted control panel (NEMA 12)
- Simplified scrap screen design
- Interchangeable upper and lower spray arms
- Standard frame drip proof motor
- Rack assortment- 1 general utility, 1 bake sheet, 1 basket
- Manifold clean-out brush
- SureFire® Start-Up & Check-Out Service
Insinger CA-3C Specifications
- CONSTRUCTION- Hood and tank constructed of 14 gauge 18-8 type 304 S/S. Hood unit of all welded seamless construction. S/S frame, legs and feet. All internal castings are non-corrosive lead free nickel alloy or bronze.
- DOORS- A front inspection/clean-out door and two simultaneously opening operating doors. Operating doors balanced by externally mounted springs. Extra large die formed 18-8 type 304 S/S doors ride in all S/S channels. A triple ply leading edge on the door channels made of S/S.
- PUMP- Centrifugal type “packless” pump with a brass petcock drain. Construction includes ceramic seal and a balanced cast impeller on a precision ground stainless steel shaft, extension or sleeve. All working parts mounted as an assembly and removable as a unit without disturbing pump housing. One 5 hp motor, standard horizontal C-face frame, drip proof, internally cooled with ball-bearing construction.
- CONTROLS- Side-mounted control cabinet, NEMA 12 rated, housing motor controls and overload protection, transformer, contactors and all dishwasher integral controls. All controls safe low voltage 24 VAC.
- SPRAY SYSTEM- Wash and rinse spray systems made of 18-8 type 304 S/S pipe threaded into cast hub assemblies. Upper and lower spray assemblies are interchangeable and are removable without the use of tools
- WASH- 2 power spinning wash arms above and 2 power spinning wash arms below, each designed with 8 high pressure action cleansing holes.
- FINAL RINSE- 2 power spinning wash arms above and 2 power spinning rinse arms below, each designed with 3 nozzles
- DRAIN- Drain valve externally controlled. Overflow assembly with skimmer cap is removable with the use of simple tools for drain line inspection. Heater is protected by low water level control.
- Shipping Weight : 800 lbs
From The Manufacturer
Pot & Pan Washer, Rack Type, single rack, corner design, approximately 25 rack/hour capacity, over/under rotating spray arms, stainless steel frame, legs & feet
