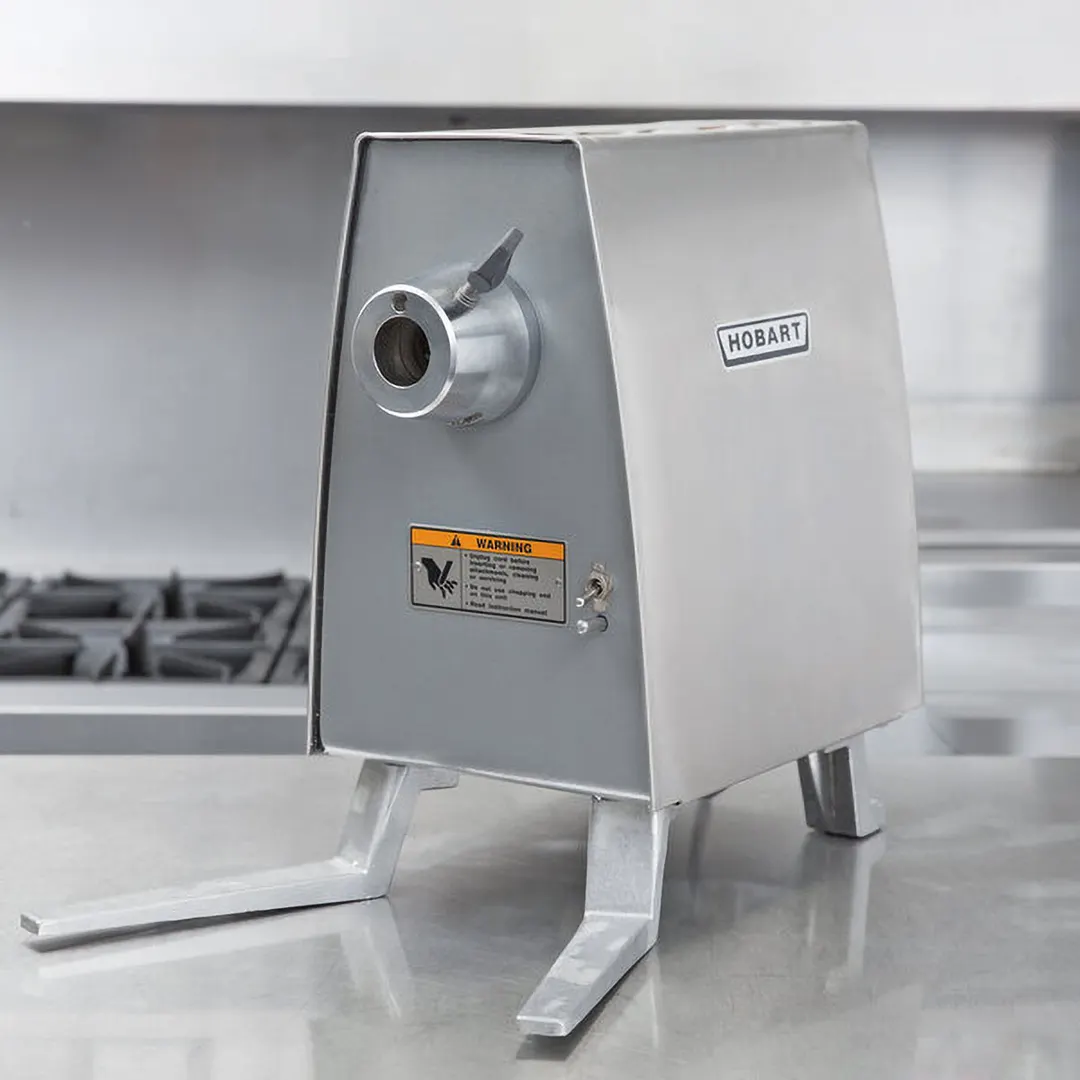

Hobart PD-70 Power Drive Unit, #12 Hub, 700 RPM, 1/2 HP, 115V, Stainless Steel Finish, Fruit & Vegetable Cutter

Description

Hobart Power Drive units provide a convenient, compact power source to efficiently run the Hobart 9" Vegetable Slicer attachment. It is an ideal “attachment station” for slicing, shredding and grating food product. It allows you to avoid using food machines required for other operations.

Standard Features

• 1 ⁄2 H.P. Motor
• 350 RPM (PD35) – Use with 9" Vegetable Slicer Attachment Only (For Cheese and Vegetables)
• 700 RPM (PD70) – Use with 9" Vegetable Slicer
• Attachment Only (For Vegetables Only)
• Stainless Steel Housing
• Satin Finish Stainless Steel Cover
• No. 12 Size Hub
• Poly-V Belt Transmission
• Hardened Steel Output Shaft
• Cast Aluminum Legs on Neoprene Pads
• Six Foot 3-wire Cord and Plug

Specifications

• MOTOR: 1 ⁄2 H.P., fan cooled, permanently lubricated ball bearings, capacitor start, induction run, totally enclosed within the machine.
• ELECTRICAL: 115/60/1

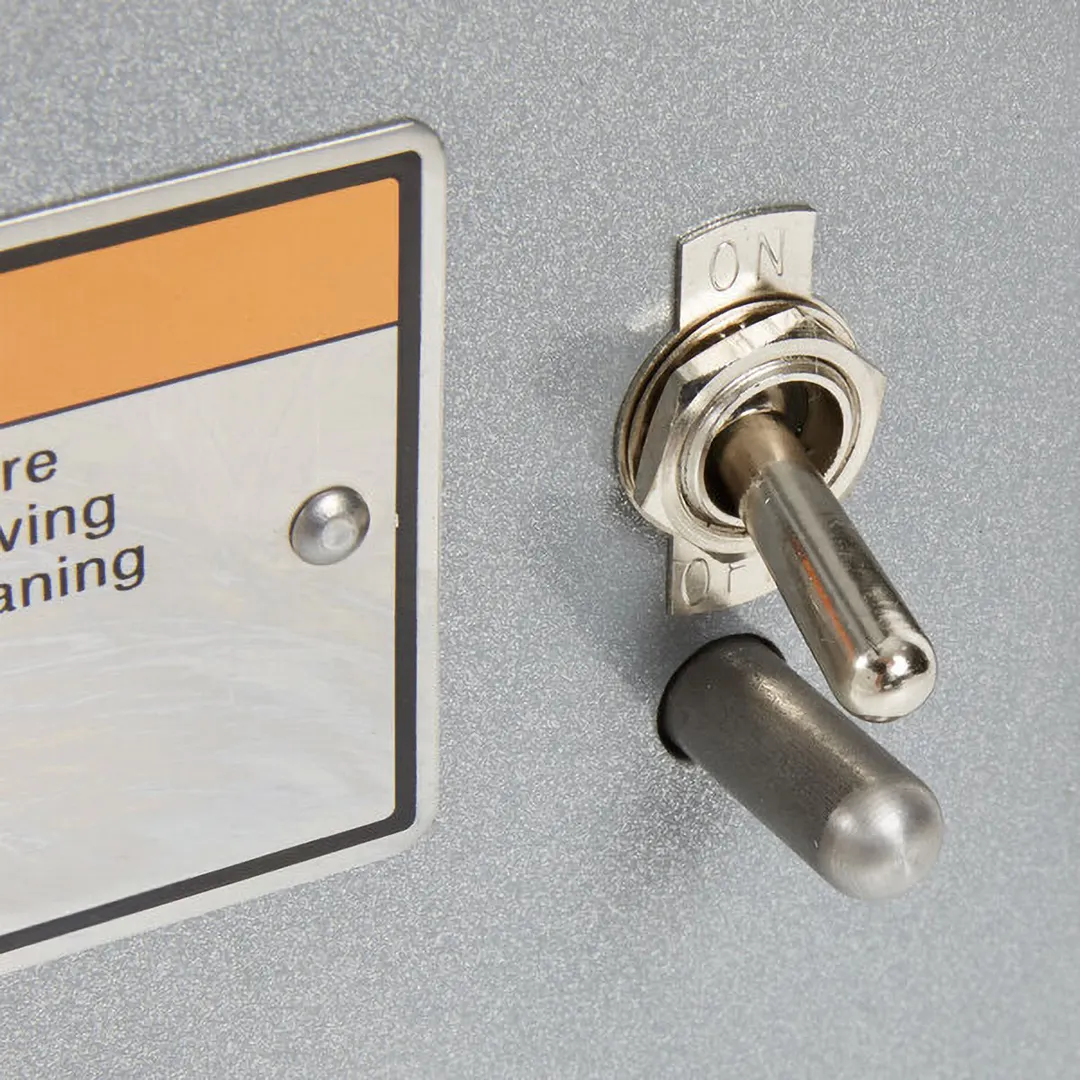

• SWITCH: Manual 2-pole type with integral seal.
• CORD & PLUG: 6 foot 3-wire cord and grounding type plug.
• TRANSMISSION: Wide Poly-V belt running on steel drive and cast aluminum driven pulleys. Output shaft hardened steel, mounted in sealed grease-packed needle bearings.
• HOUSING: Stainless steel cover secured to heavy painted steel frame.
• ATTACHMENT MOUNTING: Heavy cast iron hub, No. 12 size; accepts the No. 12 9" Vegetable Slicer secured by heavy duty thumb screw.
• OUTPUT: Model PD35 operates at 350 RPM and model
• PD70 operates at 700 RPM. Both are suited for driving the
• 9" Vegetable Slicer.
• MOUNTING: Equipped with cast aluminum legs on neoprene pads. Two mounting positions are provided for the extended front legs.
• FINISH: Satin finish stainless cover, bright chrome attachment hub, gray finish steel frame.
• WEIGHT: Net 59 lbs.; Shipping 65 lbs.
