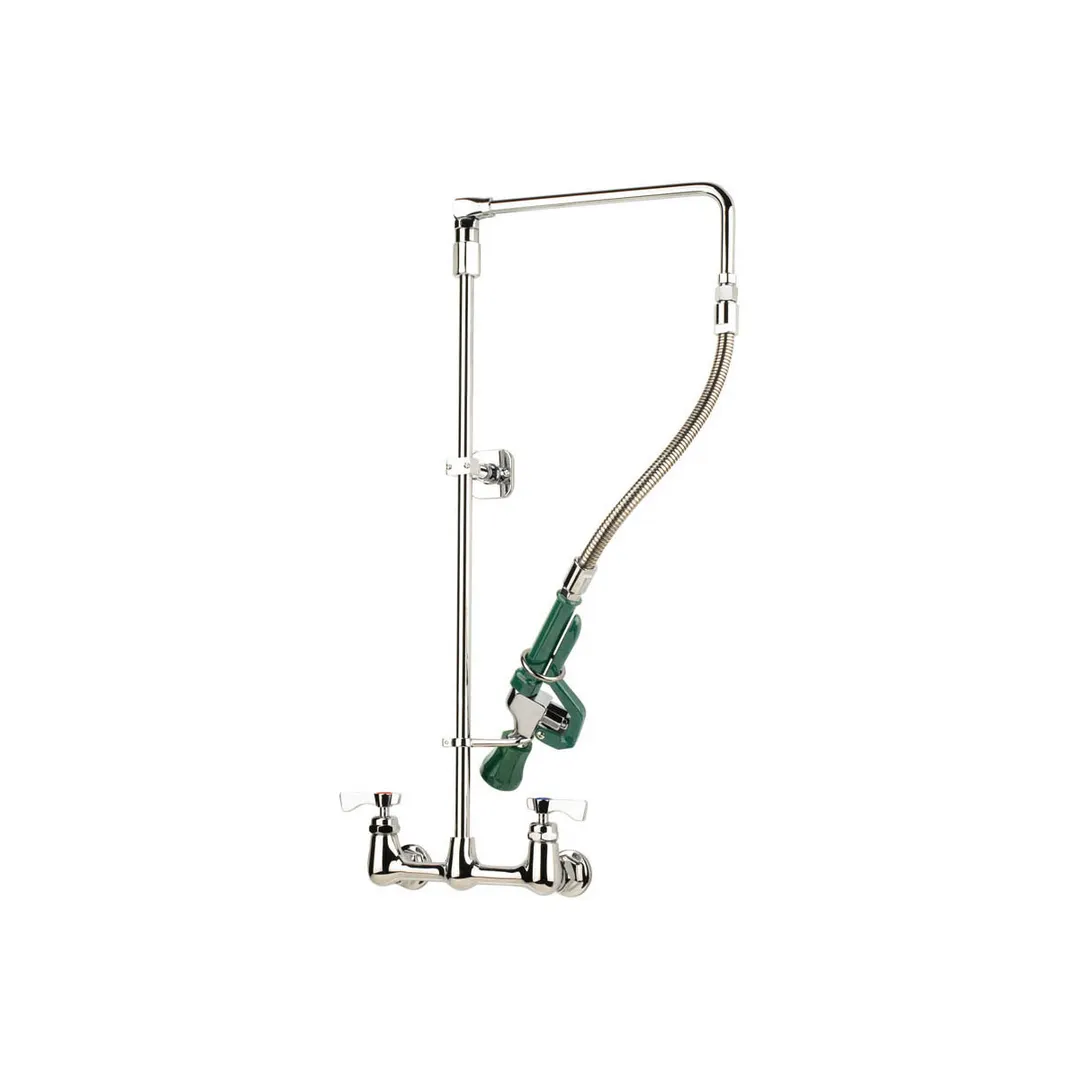

Krowne 17-312WL Royal Series 8” Center Wall Mount Pre-Rinse w/ Swing Arm
Krowne 17-312WL Features
- ¼ Turn High Performance Ceramic Cartridge Valves with Integral Check
- Heavy Duty Flanges with Eccentric Fittings Allow Alignment Adjustments for Quick Installation
- Durable Full Range Swing Spout with Double O-Ring Construction
- Lever Handles
- Wall Bracket and Mounting Kit Included
- Knife Style Spray Valve
- Stainless Steel Corrugated Hose over Radial Wrap Tubing
- E-Z Install Swivel Fitting on Hose End for Quick Installation
- Warranty: 3 Years
Krowne 17-312WL Specifications
- Water Inlet :1/2” NPT
- Temp. Range :20°F - 125°F
- Rough In:7/8” Round Holes on 4” Center
- Flow Rate :1.15 GPM Spray Head, 1.8 GPM Faucet Spout
- Riser :3/8” NPT x 8”
- Add On Faucet :6” Spout
- Dimensions :24-7/8” Height with 8” Overhang
- Material :Solid Brass
- Finish : Polished Chrome
- Weight :13 lbs.
From The Manufacturer
Krowne Royal Series Pre-Rinse Assembly, with swing arm, wall mount, 8" centers, 12" solid swing arm, 26" high riser, 12" heavy duty stainless steel clad flexible hose, ceramic cartridge valves, wall mounting kit, built in check valves, chrome plated brass, pre-assembled, low lead compliant (replaces T&S Brass B-0592), includes internal check valves to prevent backflow & cross contamination, NSF
