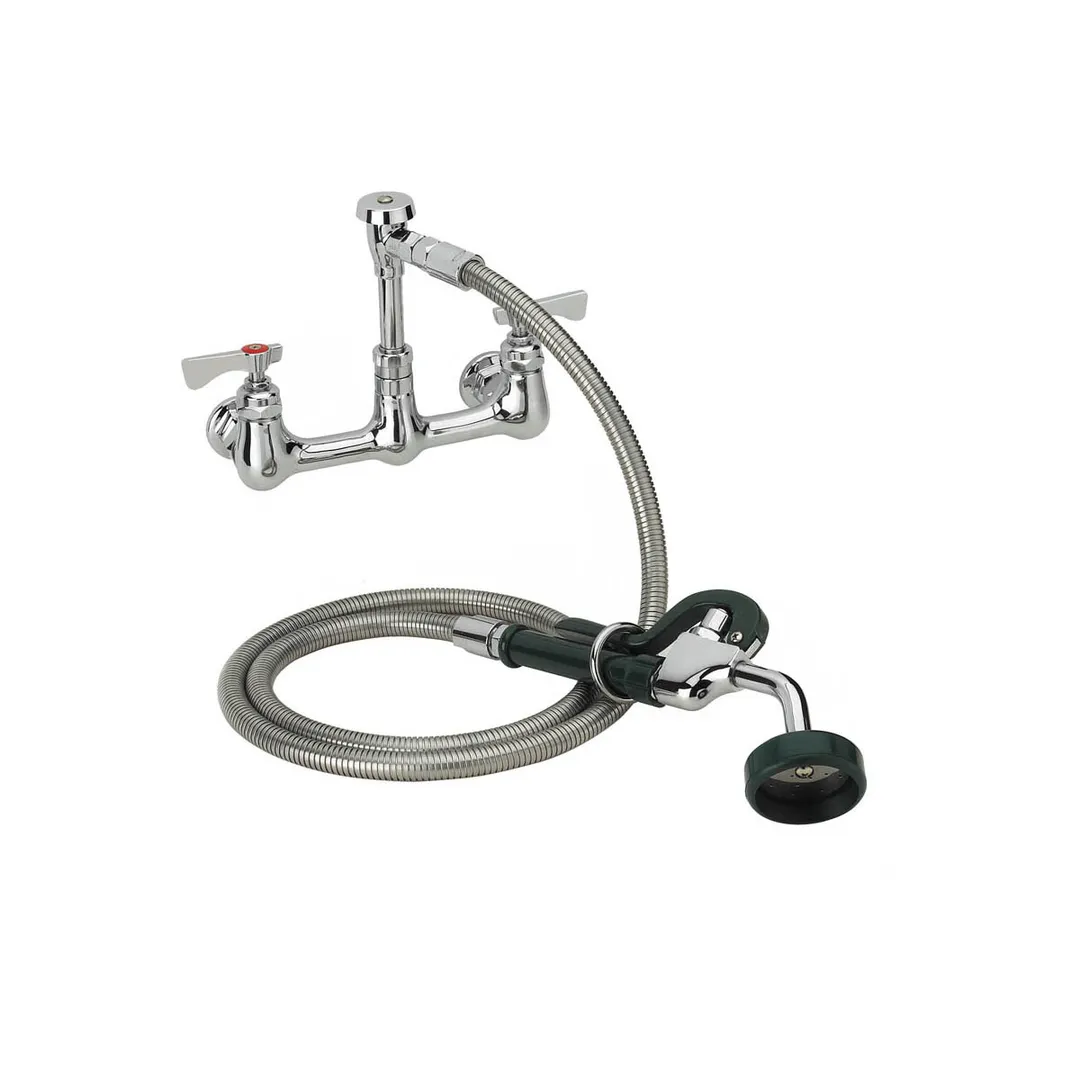

Krowne 19-108L Royal Series 8" Center Wall Mount Utility Spray
Krowne 19-108L Features
- 1/4 turn high performance ceramic cartridge valves with built-in back flow preventers
- Angled spray head
- Built-in vacuum breaker
- 72” heavy-duty stainless steel clad flexible hose. Tested to 400 PSI
- Plastic coated wall hook with chrome plated base
- Full replacement parts available
- 1 year warranty
- Mounting kit included (1/2” NPT x 1 1/2” male nipples with locknuts)
- Meets California AB-1953 and Vermont S152 standards
Krowne 19-108L Specifications
- Rough In :Two 7/8” round holes on 8” centers
- Temperature Range :40°F to 180°F
- Flow Rate:1.6 GPM max @ 60 PSI
- Shipping Weight : 15 lbs.
From The Manufacturer
Krowne Royal Series Utility Spray Assembly, wall mount, 8" adjustable centers, 72" long stainless steel flexible hose, plastic coated wall hook, vacuum breaker, 1/2" NPT female inlets, mounting kit included, built in check valves, low lead compliant, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
