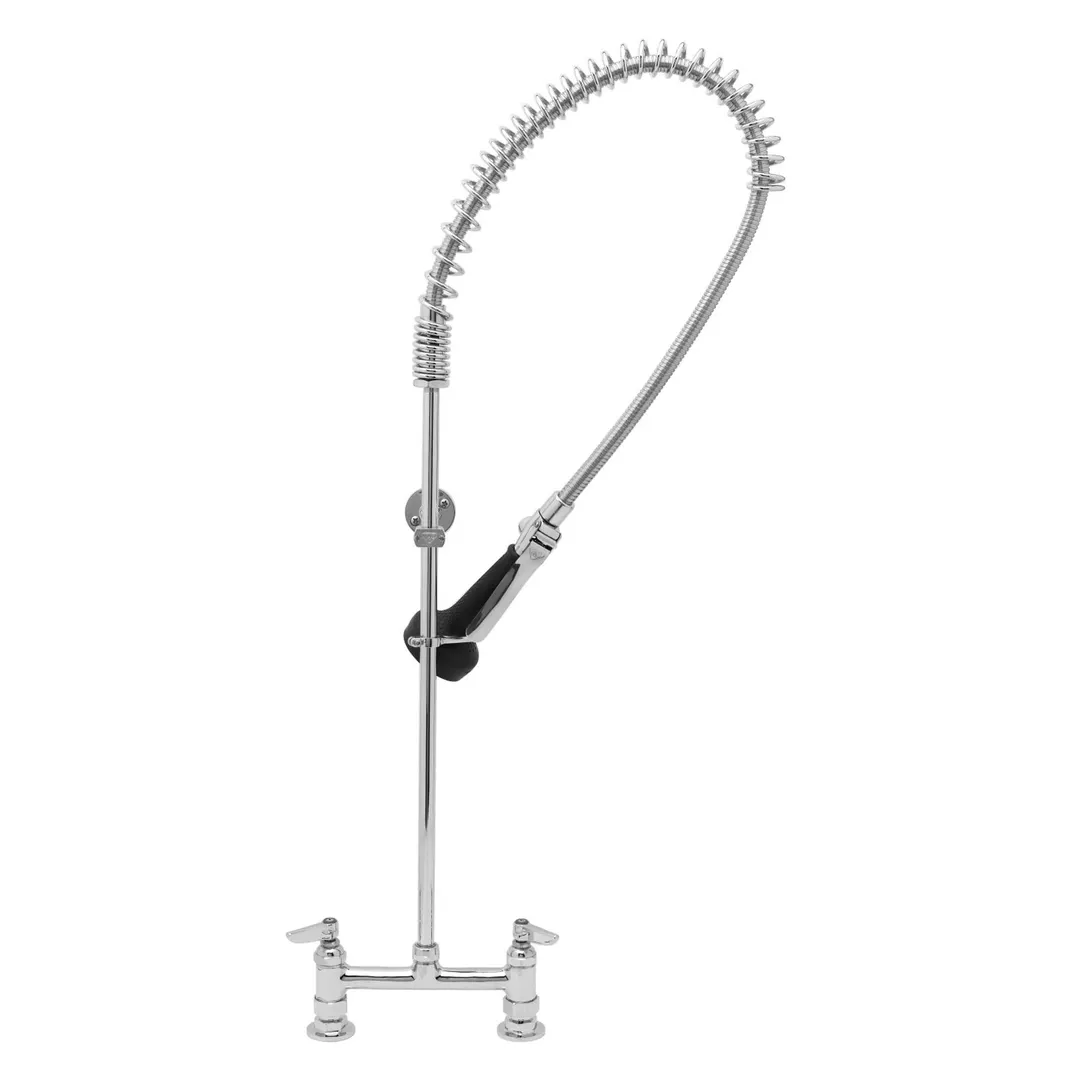

T&S Brass B-0123-B08 EasyInstall Pre-Rinse Unit
General Info
The B-0123-B08, 8" deck mount mixing faucet with polished chrome plated brass body, 24" riser, 44" flexible stainless steel hose with heat resistant handle, 1.07 GPM spray valve, compression cartridges with spring checks, leverhandles, 1/2" NPT female inlets, 6" adjustable wall bracket, spray valve holder, and overhead spring.
T&S Brass B-0123-B08 Features
- 8” deck mount mixing faucet w/ polished chrome plated brass body
- EasyInstall 24" riser for quick installation
- 44” flexible stainless steel hose w/ insulated grip handle, stainless steel trigger and trigger lock
- 1.07 GPM JeTSpray spray valve w/ insulated grip handle, stainless steel trigger and trigger lock
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT male inlets with Ø 2" adjustable flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- 6” adjustable wall bracket
- Material: Polished chrome plated brass body, riser & spray valve body, stainless steel hose, chrome plated metal handles and wall bracket
T&S Brass B-0123-B08 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :1.07 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
EasyInstall Pre-Rinse Unit, deck mount base, 8" adjustable center, spring action gooseneck, 1.07 GPM insulated spray valve (B-0108), 24" riser, 44" flexible stainless steel hose, 6" wall bracket, 2" Ø deck flanges with 1/2" NPT female flanged inlets, lever handles, quarter-turn Eterna cartridges, low lead, 2019 DOE PRSV - Class II
