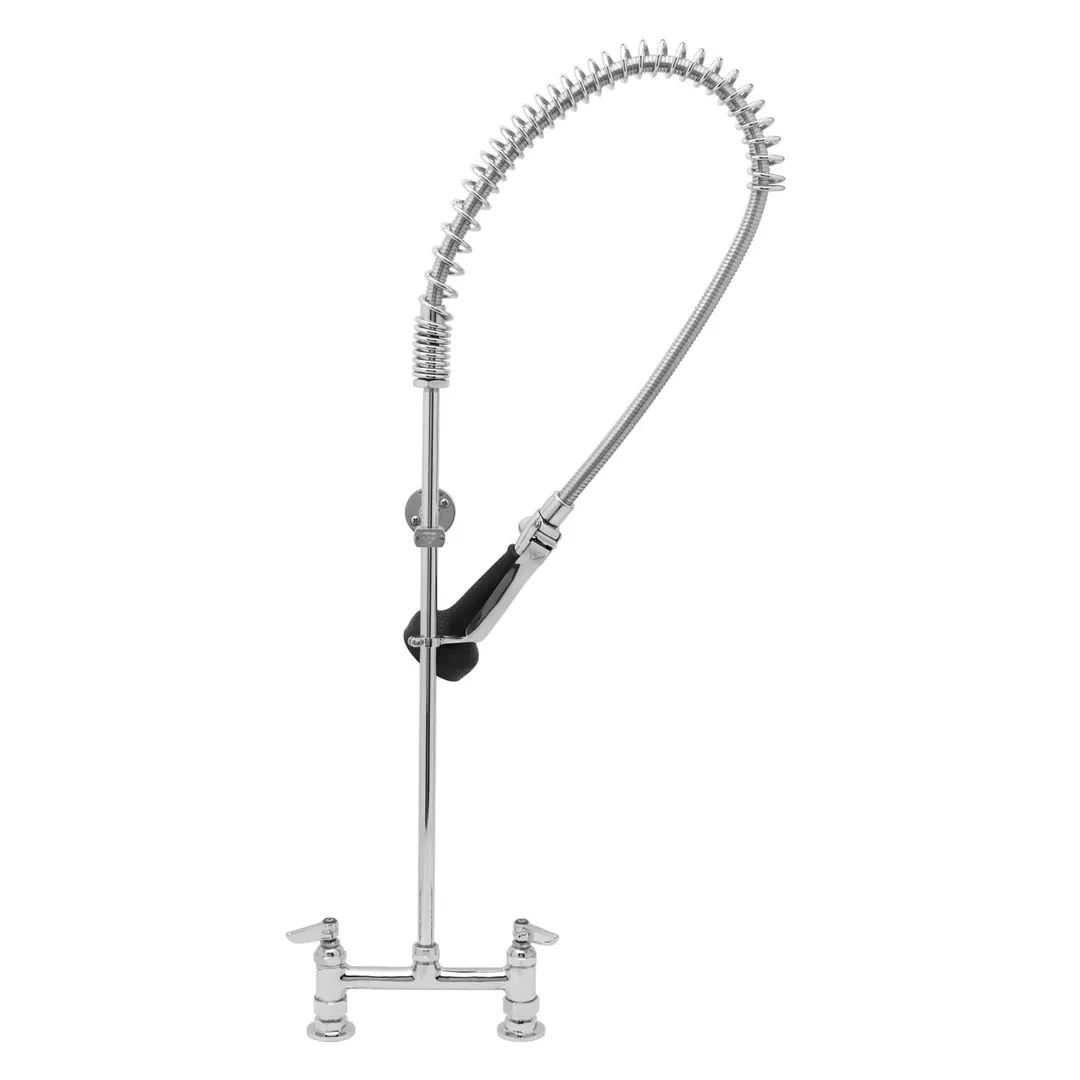

T&S Brass B-0123-B08-M EasyInstall Pre-Rinse Unit
General Info
The B-0123-B08-M, 8" deck mount mixing faucet with polished chrome plated brass body, 24" riser, 44" flexible stainless steel hose, heat resistant handle, 0.65 GPM low flow spray valve, compression cartridges with spring checks, lever handles, 1/2" NPT female inlets, spray valve holder, 6" wall bracket and overhead spring.
T&S Brass B-0123-B08-M Features
- 8” deck mount polished chrome plated brass body
- EasyInstall riser for quick installation
- 44” flexible stainless steel hose
- 0.65 GPM low flow JetSpray valve with insulated grip handle
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 6" wall bracket
- 1/2" NPT female eccentric inlets with 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- Material: Polished chrome plated brass body, riser & spray valve body, stainless steel hose, and chrome plated metal handles
T&S Brass B-0123-B08-M Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 0.65 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
EasyInstall Pre-Rinse Unit, deck mount base, 8" adjustable center, spring action gooseneck, low flow 0.65 GPM spray valve (B-0108-C), 24" riser, 44" flexible stainless steel hose, 6" wall bracket, 2" Ø deck flanges with 1/2" NPT female flanged inlets, lever handles, quarter-turn Eterna cartridges, low lead, 2019 DOE PRSV - Class II
