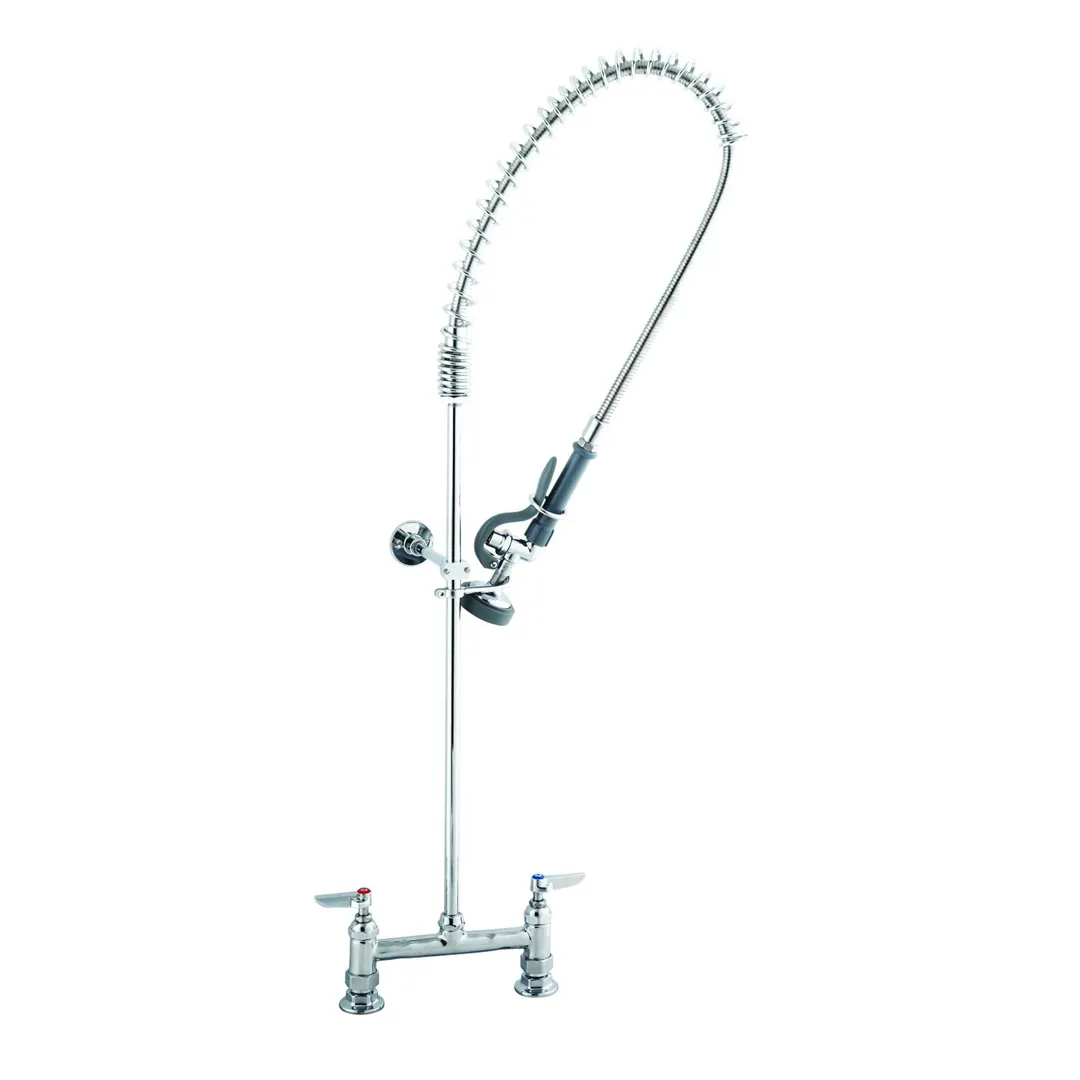

T&S Brass B-0123-B9 EasyInstall Pre-Rinse Unit-Spring Action
General Info
The B-0123-B9, 8" deck mixing mount faucet with polished chrome plated brass body, 24" riser, 44" flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, compression cartridges with spring checks, leverhandles, 1/2" NPT female inlets, 9" adjustable wall bracket, spray valve holder and overhead spring..
T&S Brass B-0123-B9 Features
- 8" deck mount mixing faucet w/ polished chrome plated brass body
- EasyInstall riser for quick installation
- 44” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 1.15 GPM spray valve
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 9" adjustable wall bracket
- 1/2" NPT female eccentric inlets with 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- Material: Polished chrome plated brass body, riser & spray valve body, stainless steel hose, and chrome plated metal handles
T&S Brass B-0123-B9 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 1.15 GPM [4.35 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
EasyInstall Pre-Rinse Unit, deck mount base, 8" adjustable center, spring action gooseneck, 1.15 GPM spray valve (B-0107), 24" riser, 44" flexible stainless steel hose, 9" wall bracket, 2" Ø deck flanges with 1/2" NPT female flanged inlets, lever handles, quarter-turn Eterna cartridges, low lead, 2019 DOE PRSV - Class II
