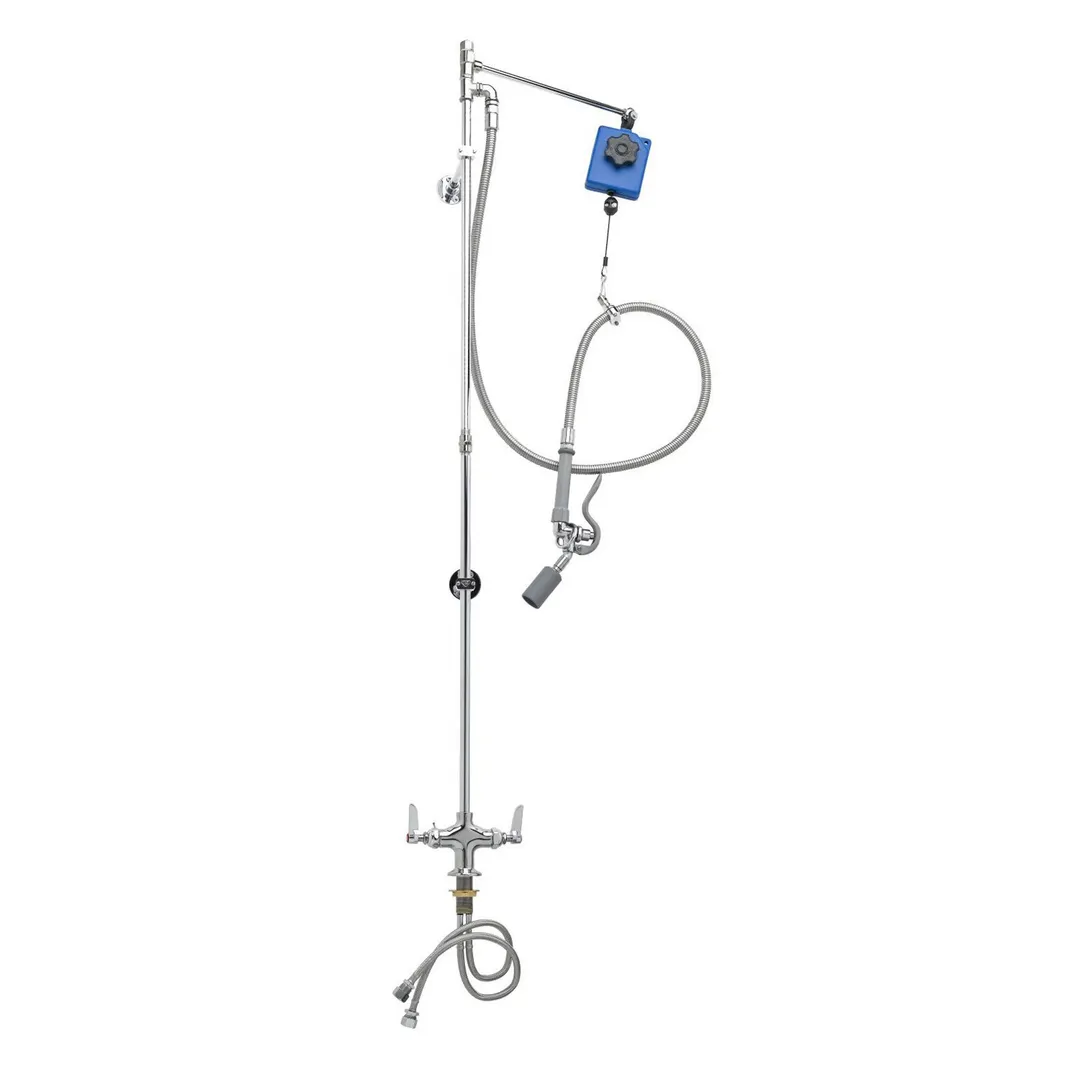

T&S Brass B-0126-CR Pre-Rinse Unit
General Info
The B-0126-CR, SSingle hole deck mount mixing faucet with polished chrome plated brass body, 24" risers, 3/8" NPT pipe coupling, 68" flexible stainless steel hose with heat resistant handle, 0.65 GPM low flow angled spray valve,ceramic cartridges with check valves, lever handles, 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" compression connections, overhead swivel extension arm with balancer,and 6" adjustable wall bracket.
T&S Brass B-0126-CR Features
- Single hole deck mount mixing faucet with polished chrome plated brass body
- Two 24” risers (one EasyInstall, one rigid) w/ pipe coupling
- Swivel elbow assembly
- 68” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 0.65 GPM low flow angled spray valve
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" compression connections
- Overhead swivel extension arm with adjustable tension balancer
- 6” adjustable wall bracket
- Material: Polished chrome plated brass body, riser, swivel arm & spray valve body, stainless steel hose, and chrome plated metal handles
T&S Brass B-0126-CR Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 0.65 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pre-Rinse Unit, deck mount, single hole mixing valve, Cerama cartridges with check valves, lever handles with color-coded indexes, 24” riser, 6” wall bracket, 14” extension arm, balancer, 68” flexible stainless steel hose with B-0107-C35 low flow angled spray valve (0.65gpm), 18” flexible stainless steel supply hoses with compression fitting for 5/8” O.D. copper tubing (remove compression nut for ½” NPSM male thread), NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
