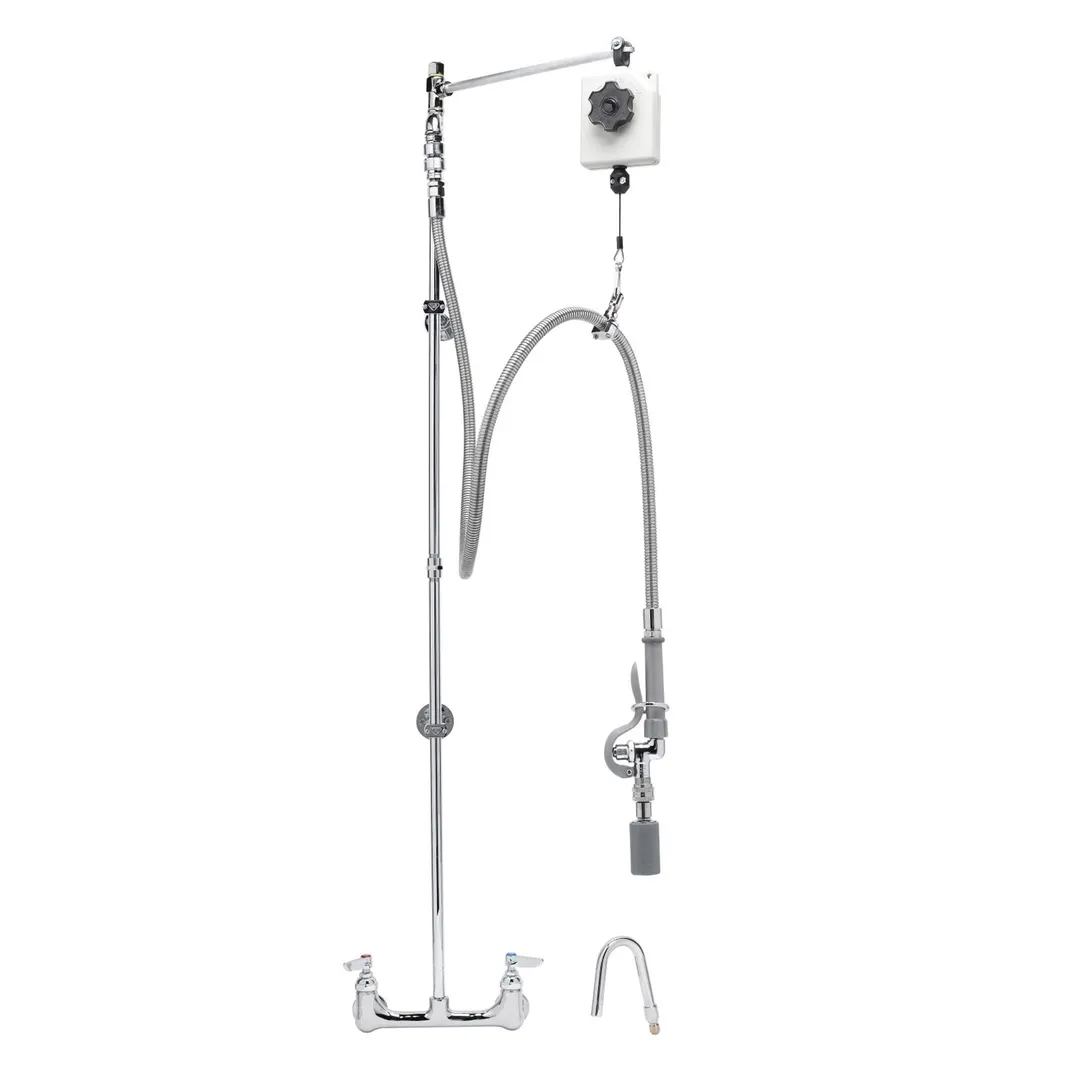

T&S Brass B-0130 Pre-Rinse Unit With Balancer
General Info
The B-0130, 8" wall mount mixing faucet with polished chrome plated brass body, 24" risers, 3/8" NPT pipe coupling, vacuum breaker, 68" flexible stainless steel hose with heat resistant handle, spray valve with quick disconnect outlet, compression cartridges with spring checks, lever handles, 1/2" NPT female inlets, quick disconnect 0.65 GPM fan jet spray and quick disconnect hook nozzle attachments,overhead swivel extension arm with balancer, 6" adjustable wall brackets.
T&S Brass B-0130 Features
- 8” deck mount mixing faucet with polished chrome plated brass body
- Two 24” risers (one EasyInstall, one rigid) w/ pipe coupling
- Swivel elbow assembly
- 3/8” NPT vacuum breaker
- 68” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- Spray valve with quick disconnect outlet
- Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Ø 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- Quick disconnect 0.65 GPM fan jet spray attachment
- Quick disconnect hook nozzle spray attachment
- Overhead swivel extension arm with adjustable tension balancer
- 6” adjustable wall bracket
- Material: Polished chrome plated brass body, riser, swivel arm & spray valve body, stainless steel hose, and chrome plated metal handles
T&S Brass B-0130 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Fan Jet: 0.65 GPM @ 60 psi
- Hook Nozzle: 2.71 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pre-Rinse Balancer, wall mount, 8" c/c, quick disconnect low flow valve/hook nozzle, wall bracket, VB Hose, Eterna cartridges, low lead
