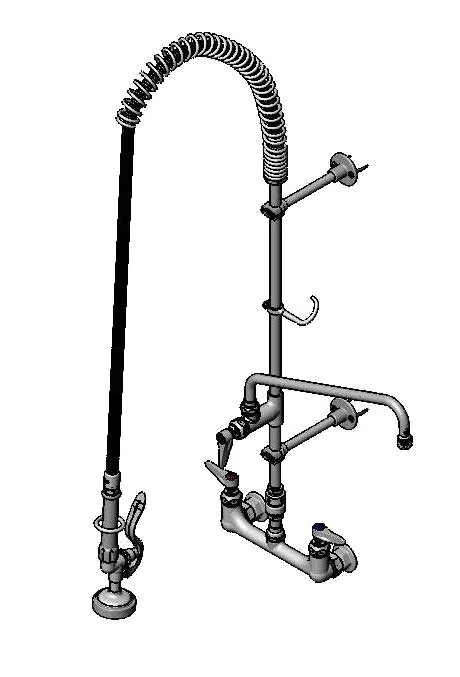

T&S Brass B-0133-063X EasyInstall Pre-Rinse
General Info
The B-0133-063X, 8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge, lever handle and 7" riser, 14" swing nozzle with stream regulator outlet, 18" rigid riser, 56"flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve.
T&S Brass B-0133-063X Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- Add-on faucet w/ polished chrome plated brass body
- 14” swing nozzle w/ stream regulator outlet (Series 1)
- 18” riser
- 56” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 1.15 GPM spray valve
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- EasyInstall 3/8" NPT dual check vacuum breaker w/ intermediate vent for continuous pressure applications
- (2) 6” adjustable wall brackets
- Material: Polished chrome plated brass body, add-on faucet, riser & spray valve body, stainless steel hose, and chrome plated metal handles
T&S Brass B-0133-063X Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Spray Valve: 1.15 GPM @ 60 psi
- Add-On Faucet: 9.73 GPM @ 60 ps
- Other Details : See spec. sheet
From The Manufacturer
EasyInstall Pre-Rinse Unit, wall mount mixing faucet with 8" adjustable centers, add-on faucet, EasyInstall 3/8" NPT dual check vacuum breaker, 14" swing nozzle with stream aerator outlet, quarter-turn Eterna cartridges with spring checks, lever handles with color coded indexes, 18" rigid riser, 56" flexible stainless steel hose with heat-resistant gray handle & hold down ring, 1.15 GPM spray valve (B-0107), (2) 6" adjustable wall brackets, polished chrome-plated brass faucet body, 1/2" NPT female inlets, CSA
