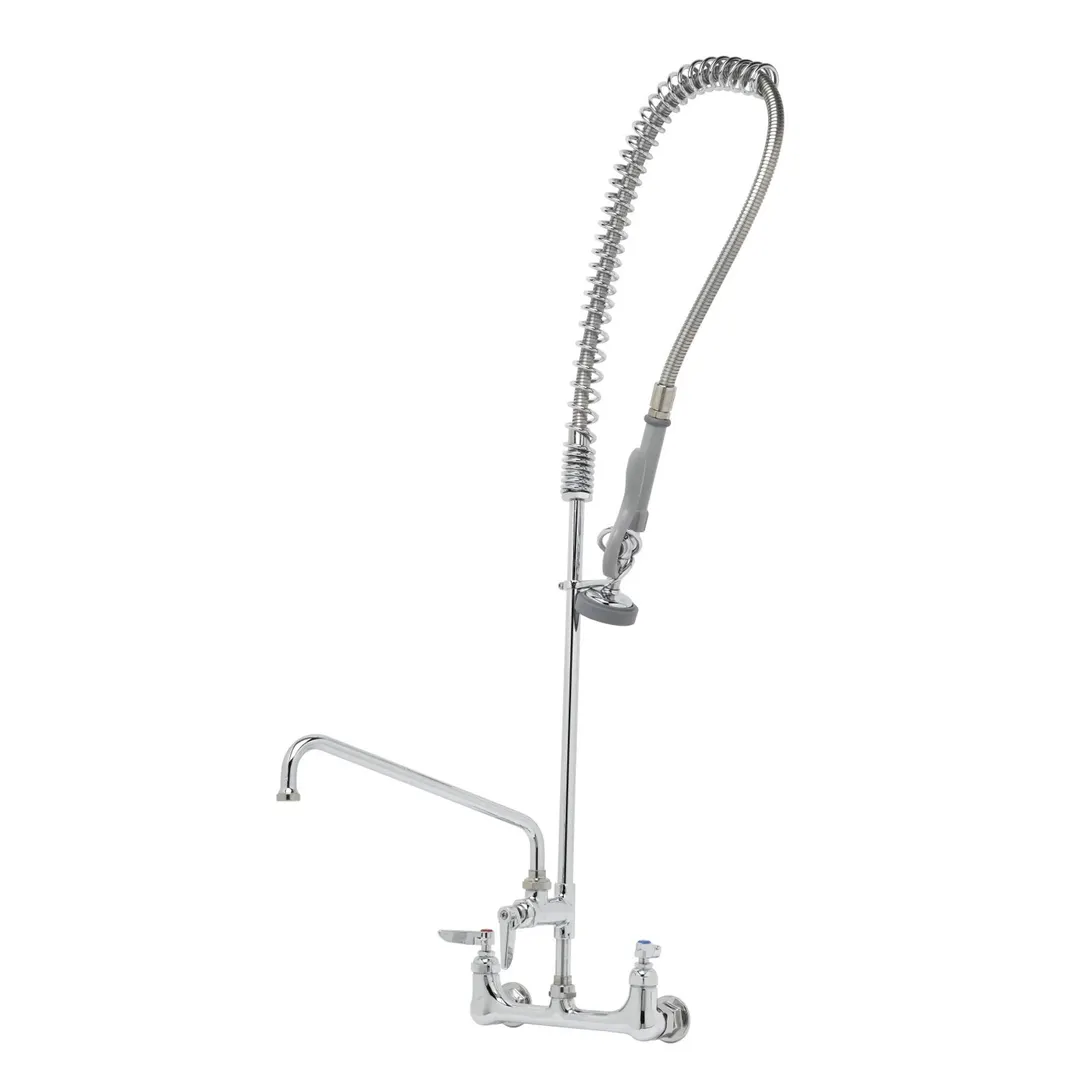

T&S Brass B-0133-A12-CCB Easyinstall Pre-Rinse Unit, Spring Action, Wall Mount

General Info

The B-0133-A12-CCB, 8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 12" swing nozzle with stream regulator outlet, 18" riser, 44" flexible stainlesssteel hose with heat resistant handle, 1.15 GPM spray valve, compression cartridges with spring checks.

T&S Brass B-0133-A12-CCB Features

• 8” wall mount mixing faucet w/ polished chrome plated brass body
• EasyInstall add-on faucet w/ polished chrome plated brass body
• 12” swing nozzle w/ stream regulator outlet, Series 1
• 18” riser
• 44” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
• 1.42 GPM spray valve
• Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
• Lever handles w/ color coded indexes
• 1/2" NPT male inlets with 1 5/16" hex flanges
• Adjustable centers from 7 3/4" to 8 1/4"
• 6” adjustable wall bracket
• Material: Polished chrome plated brass body, add-on faucet riser & spray valve body, stainless steel hose, and chrome plated metal handles

T&S Brass B-0133-A12-CCB Specifications

• Pressure Min/Max : 20 - 125 psi
• Temperature Min/Max : 40 F - 140 F
• Flow Rate :
  • Spray Valve: 1.42 GPM @ 60 psi
  • Add-On Faucet: 9.73 GPM @ 60 psi
• Other Details : See spec. sheet
