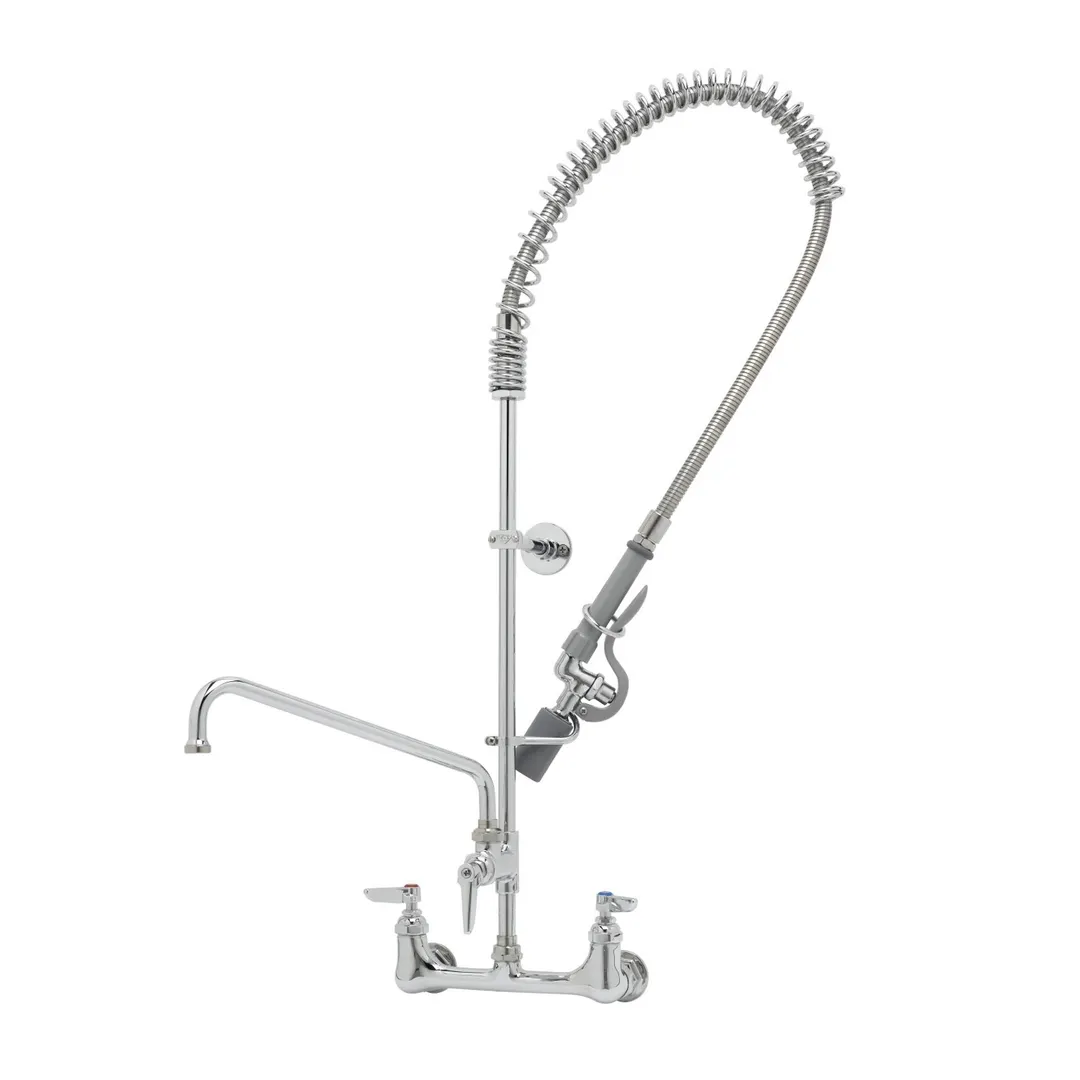

T&S Brass B-0133-ADF08-BC EasyInstall Pre-Rinse Unit
General Info
The B-0133-ADF08-BC, 8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 8" swing nozzle with stream regulator outlet, 18" riser, 44" flexible stainless steel hose with heat resistant handle, 0.65 GPM low flow spray valve, compression cartridges with spring checks.
T&S Brass B-0133-ADF08-BC Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chrome plated brass body
- 8” swing nozzle w/ stream regulator outlet, Series 1
- 18” rigid riser
- 44” flexible stainless steel hose with heat resistant gray handle and hold down ring
- 0.65 GPM low flow spray valve
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Ø 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- 6” adjustable wall bracket
- Material: Polished chrome plated brass body, tubular nozzle, add-on faucet body, riser & spray valve body, stainless steel hose and chrome plated metal handles
T&S Brass B-0133-ADF08-BC Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Spray Valve: 0.65 GPM @ 60 psi
- Add-On Faucet: 9.73 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pre-Rinse Unit, 8" wall mount, 8" swing nozzle, 6" wall bracket, lever handles, 44" stainless steel flex hose, add-on faucet, .65 GPM low flow spray valve, stream regulator tip, quarter-turn compression cartridge, 1/2" NPT, quarter-turn Eterna cartridges, low lead
