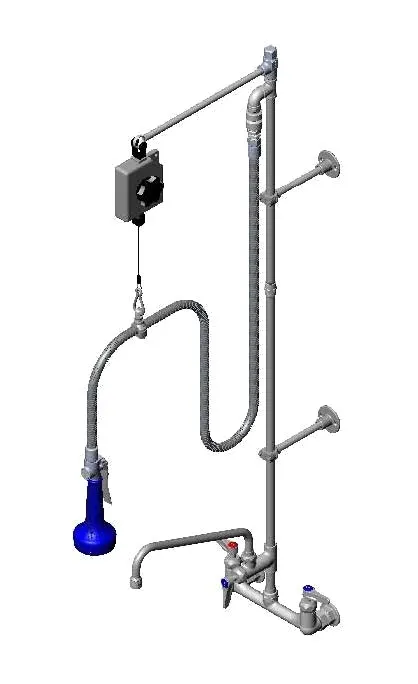

T&S Brass B-0140-08 Easyinstall Pre-Rinse Unit

General Info

The B-0140-08, 8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 12" swing nozzle with stream regulator outlet, 24" and 18" risers, 3/8" NPT pipecoupling, swivel elbow, 68" flexible stainless steel hose, 1.07 GPM spray valve with insulated handle grip, ceramic cartridges with check valves.

T&S Brass B-0140-08 Features

• 8" wall mount mixing faucet with polished chrome plated brass body
• EasyInstall add-on faucet w/ polished chome plated brass body
• 12" swing nozzle w/ stream regulator outlet, Series 1
• 24” and 18" rigid risers w/ pipe coupling
• Swivel elbow assembly
• 68” flexible stainless steel hose
• 1.07 GPM JeTSpray valve w/ insulated grip handle, stainless steel trigger and trigger lock
• Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
• Lever handles w/ color coded indexes
• 1/2" NPT female eccentric inlets with Ø 2" flanges
• Adjustable centers from 7 3/4" to 8 1/4"
• Overhead swivel extension arm with adjustable tension balancer
• 6” adjustable wall brackets
• Material: Polished chrome plated brass body, riser, r, tubular nozzle, swivel arm & spray valve body, stainless steel hose, and chrome plated metal handles

T&S Brass B-0140-08 Specifications

• Pressure Min/Max : 20 - 125 psi
• Temperature Min/Max : 40 F - 140 F
• Flow Rate :
  • Spray Valve: 1.07 GPM @ 60 psi
  • Add-On Faucet: 5.35 GPM @ 60 psi
• Other Details : See spec. sheet
