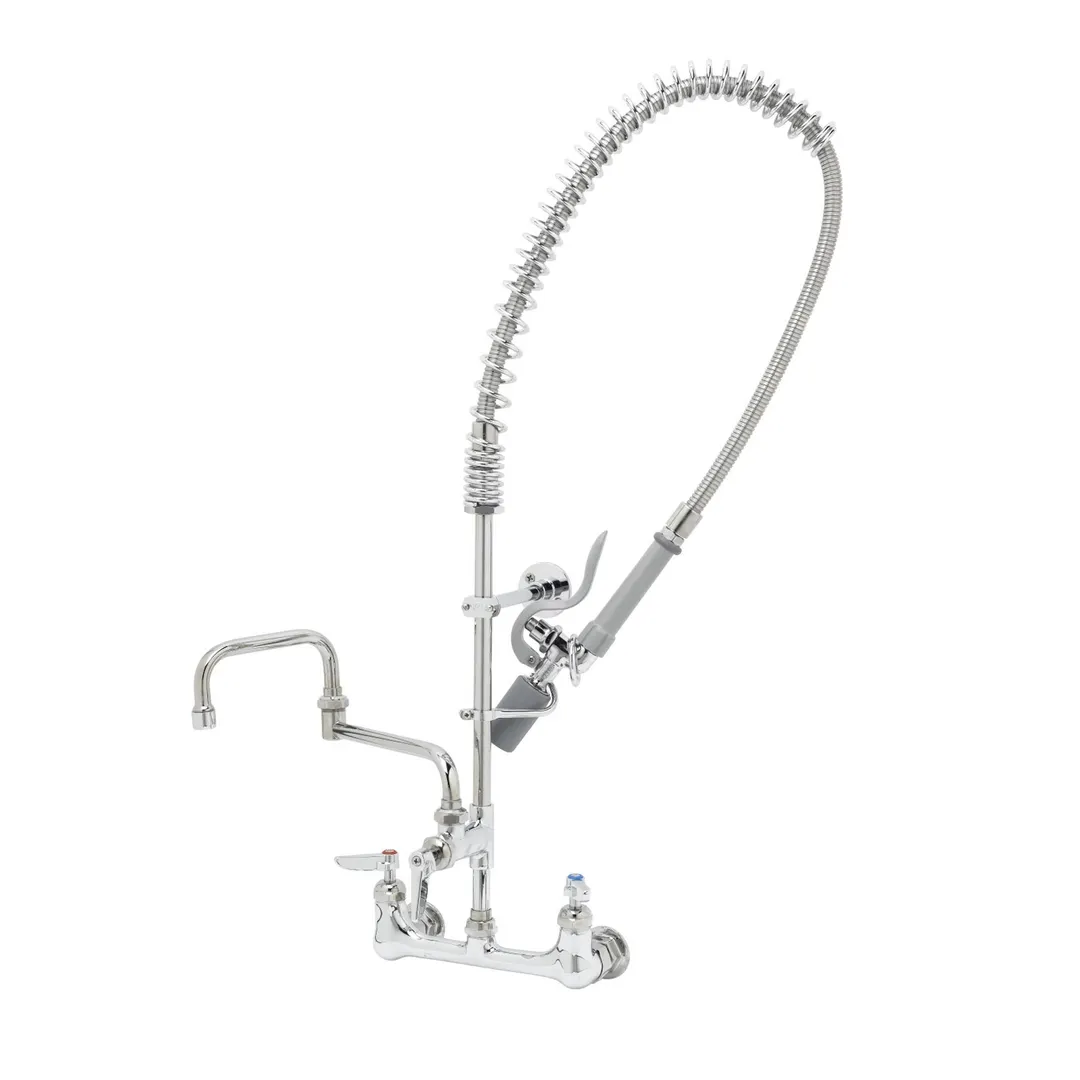

T&S Brass B-0154-CR-C EasyInstall Pre-Rinse Unit
General Info
The B-0154-CR-C , 8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 15" double joint swing nozzle with 2.2 GPM aerator, 12" riser, 44" flexible stainlesssteel hose with heat resistant handle, 0.65 GPM low flow spray valve, ceramic cartridges with check valves.
T&S Brass B-0154-CR-C Features
- 8” wall mount mixing faucet w/ polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chrome plated brass body
- 15” double joint swing nozzle
- 2.2 GPM aerator, Series 1 (B-0199-01)
- 12” rigid riser
- 44” flexible stainless steel hose w/ heat resistant gray handle hold down ring
- 0.65 GPM low flow spray valve
- Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets with Ø 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- 6” adjustable wall bracket
- Material: Polished chrome plated brass body, riser and spray valve, stainless steel hose and chrome plated metal handles
T&S Brass B-0154-CR-C Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Spray Valve: 0.65 GPM @ 60 psi
- Add-On Faucet: 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Pre-Rinse Unit, 8" wall mount, 15" double joint swing nozzle, 6" wall support, 44" stainless steel flex hose, ceramic cartridge, add-on faucet, 2.2 GPM aerator, .65 GPM spray valve, 1/2" NPT, EPAct2005 compliant
