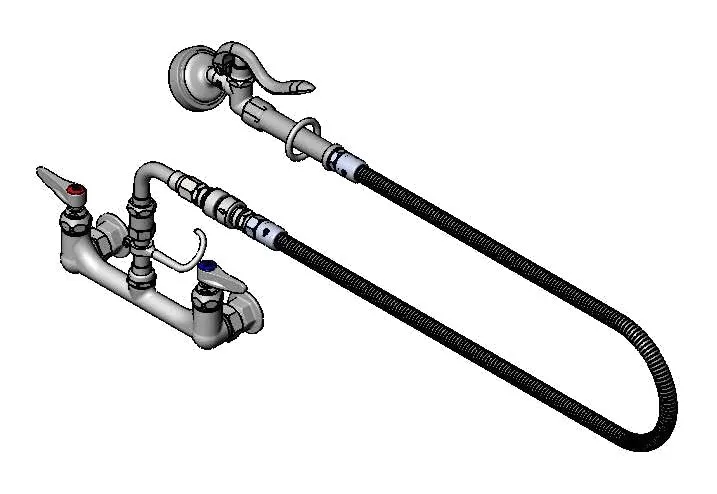

T&S Brass B-0167-01 Spray Unit With Mixing Control Valve
General Info
The B-0167-01, 8" wall mount mixing faucet with polished chrome plated brass body, vacuum breaker, 54" flexible stainless steel hose with heat resistant handle, 1.15 GPM angled spray valve, compression cartridges with spring checks, lever handles, 1/2" NPT female inlets and spray valve holder.
T&S Brass B-0167-01 Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- Vacuum breaker
- 54” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 1.15 GPM angled spray valve
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- Lever handles with color coded indexes
- 1/2” NPT female eccentric inlets with Ø2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body, swivel arm & spray valve body, stainless steel hose and chrome plated metal handles
T&S Brass B-0167-01 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 1.15 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Spray Assembly, wall mount mixing faucet with 8" adjustable centers, quarter-turn Eterna cartridges with spring checks, lever handles with color coded indexes, continuous vacuum breaker, 1.15 GPM blue angled spray valve (B-0107-035), 54" flexible stainless steel hose with heat-resistant blue handle & hold down ring, finger hook, polished chrome-plated brass faucet body, 1/2" NPT female inlets, CSA
