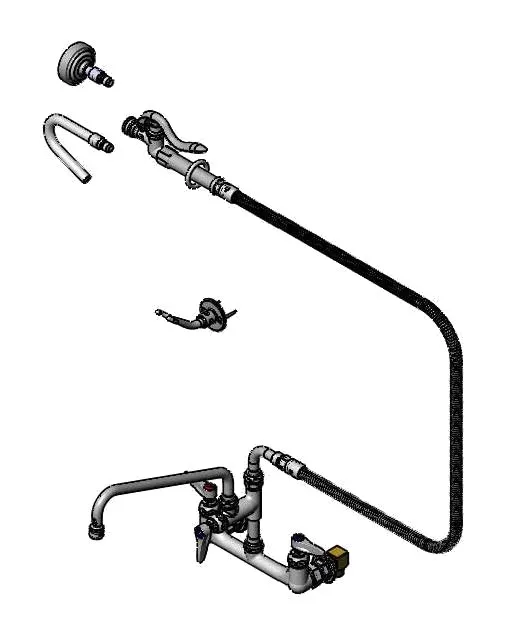

T&S Brass B-0175-60H-QDSV Spray Assembly

General Info

The B-0175-60H-QDSV, 8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 12" swing nozzle with stream regulator outlet, 60" flexible stainless steel hose withheat resistant handle, 90deg swivel adapter arm, quick connect spray valve with 1.15 GPM spray head & hook nozzle, compression cartridges with spring checks, lever handles,1/2" NPT female inlets and hose hanger hook.

T&S Brass B-0175-60H-QDSV Features

• 8” wall mount mixing faucet w/ polished chrome plated brass body
• EasyInstall add-on faucet w/ polished chrome plated brass body
• 12” swing nozzle w/ stream regulator outlet, Series 1
• 60” flexible stainless steel hose with heat resistant gray handle and hold down ring
• 90° swivel adapter arm
• Quick connect spray valve w/ 1.15 GPM spray head & hook nozzle
• Quarter-Turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
• Lever handles w/ color coded indexes
• 1/2" NPT female eccentric inlets with 2" flanges
• Adjustable centers from 7 3/4" to 8 1/4"
• Hose hanger hook
• Material: Polished chrome plated brass body, add-on faucet, hanger hook, tubular nozzle, swivel arm and spray valve, stainless steel hose & chrome plated metal handles

T&S Brass B-0175-60H-QDSV Specifications

• Pressure Min/Max : 20 - 125 psi
• Temperature Min/Max : 40 F - 140 F
• Flow Rate :
  • Spray Valve: 1.15 GPM [4.35 L/min] @ 60 psi [4.14 bar]
  • Hook Nozzle: 5.21 GPM [19.72 L/min] @ 60 psi [4.14 bar]
  • Add-On Faucet: 9.73 [36.83 L/min] @ 60 psi [4.14 bar]
• Other Details : See spec. sheet
