T&S Brass MPQ-2DLV-08-CR Mini Pre-Rinse Unit
General Info
Single hole deck mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 8" swing nozzle with stream regulator outlet, 5 3/16" riser, vacuum breaker, 24"flexible stainless steel hose with heat resistant handle, 0.65 GPM low flow JeTSpray valve, ceramic cartridges with check valves...
T&S Brass MPQ-2DLV-08-CR Features
- Single hole deck mount mixing faucet w/ polished chrome plated brass body & Ø 2 1/4" deck flange
- EasyInstall add-on faucet w/ polished chrome plated brass body
- Continuous pressure vacuum breake
- 8” swing nozzle w/ stream regulator outlet, Series 1
- 5 3/16” rigid riser
- 24” flexible stainless steel hose
- 0.65 GPM low flow JeTSpray valve w/ insulated grip handle, stainless steel trigger and trigger lock
- Quarter-turn Cerama cartridges with check valves to prevent cross flow of water
- Lever handles w/ color coded indexes
- 18” flexible stainless steel supply hoses w/ 1/2” NPSM / 5/8” compression connections
- 6” adjustable wall bracket
T&S Brass MPQ-2DLV-08-CR Specifications
- Pressure : 20 - 125 psi
- Temperature : 40 F - 140 F
- Flow Rate :
- Spray Valve: 0.65 GPM @ 60 psi
- Add-On Faucet: 4.51 GPM & 60 psi
- Other Details : See spec. sheet
From The Manufacturer
EasyInstall Mini Pre-Rinse Units, deck mount, single hole, 8" swivel add-on nozzle, lever handle, ceramic cartridge, stream regulator tip, vacuum breaker, 24" stainless steel flex hose, 6" wall bracket, low lead, EPAct2005 compliant, NSF

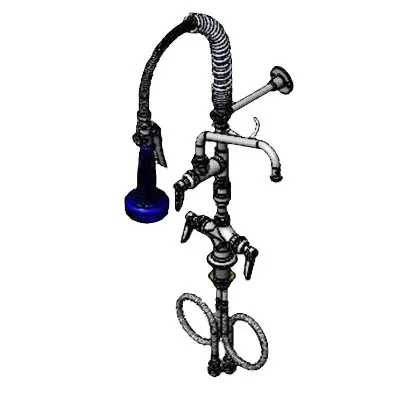

Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
