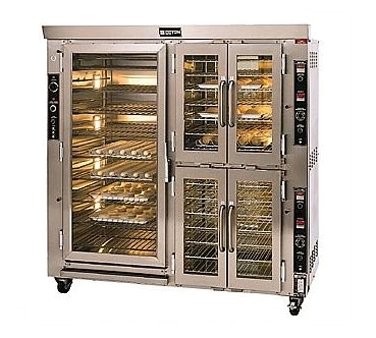

The Doyon JAOP14 Jet Air Convection Oven/Proofer Combination
Why use Doyon Oven/Proofer?
The JAOP series from Doyon is known worldwide for its unique JET AIR SYSTEM. The air moves in one direction, stops then moves the other way resulting in a bidirectional and gentle velocity air flow for exceptional baking results. This system will help you bake faster and more evenly without having to turn pans during baking time. The Jet Air fan system will save energy and labor costs.
High Performance
The JAOP provides great flexibility in terms of range of products that can be baked or cooked. It features a programmable or manual one shot and constant pulse steam injection. To get the results you really want, we have added as standard a fan delay for those delicate products. It’s the easiest way to proof with an even air flow system, fully automatic humidity system for heat and moisture (no water pans to fill). It comes with heat and humidity controls.
Doyon JAOP14 Standart Features
Oven
- Unique shot and pulse steam injection
- Jet Air exclusive reversing fan system
- Two speeds fan and fan delay switch
- Manual mode and user friendly EBake programmable control up to 99 recipes
- Digital temperature control up to 500 F
- Digital reminder timer
- USB Port
- Brightly lit, compact space saving unit
- Full view heat reflective thermal glass doors
- Fully insulated, completely sealed
- Energy efficient electric or gas heating
- Magnetic latches
- Door switch cutoff for fan blower
- 4 swivel casters (2 locking)
- Stainless steel inside and outside
- 3/4 HP motor
- 2 year parts 1 year labor limited warranty
Proofer
- Temperature range from 90F to 110 F (32 C to 43 C) with relative humidity up to 95%
- Manual Controls
- Automatic water fill
- Brightly lit
- Stainless steel inside and outside
- Magnetic door latches
- Separate heat and humidity controls
- Door drip pan
- Exclusive rust & scratch proof shelving
Doyon JAOP14 Specification
- Width 70 Inches (1778mm)
- Depth 49 1/4 Inches (1251mm)
- Height 73 Inches (1854mm)
- Interior Width - Oven 25 1/2 Inches (648mm)
- Interior Deoth - Oven 30 1/2 Inches (775mm)
- Interior Height - Oven 28 Inches (711mm)
- Interior Width - Proofer 26 1/4 Inches (667mm)
- Interior Depth - Proofer 36 1/2 Inches (927mm)
- Interior Height - Proofer 55 1/2 Inches (1410mm)
- 18"x 26" Pan Capacity Oven - 14; Proofer - 32
- 208V / 1 Phase 117Amps / 24.5kW / 2 wires
- 208V / 3 Phase 69Amps / 24.5 kW / 3 wires
- 240V / 1 Phase 104Amps / 24.5kW / 2 wires
- 240V / 3 Phase 64Amps / 24.5kW / 3 wires
- Power Type : Electric
