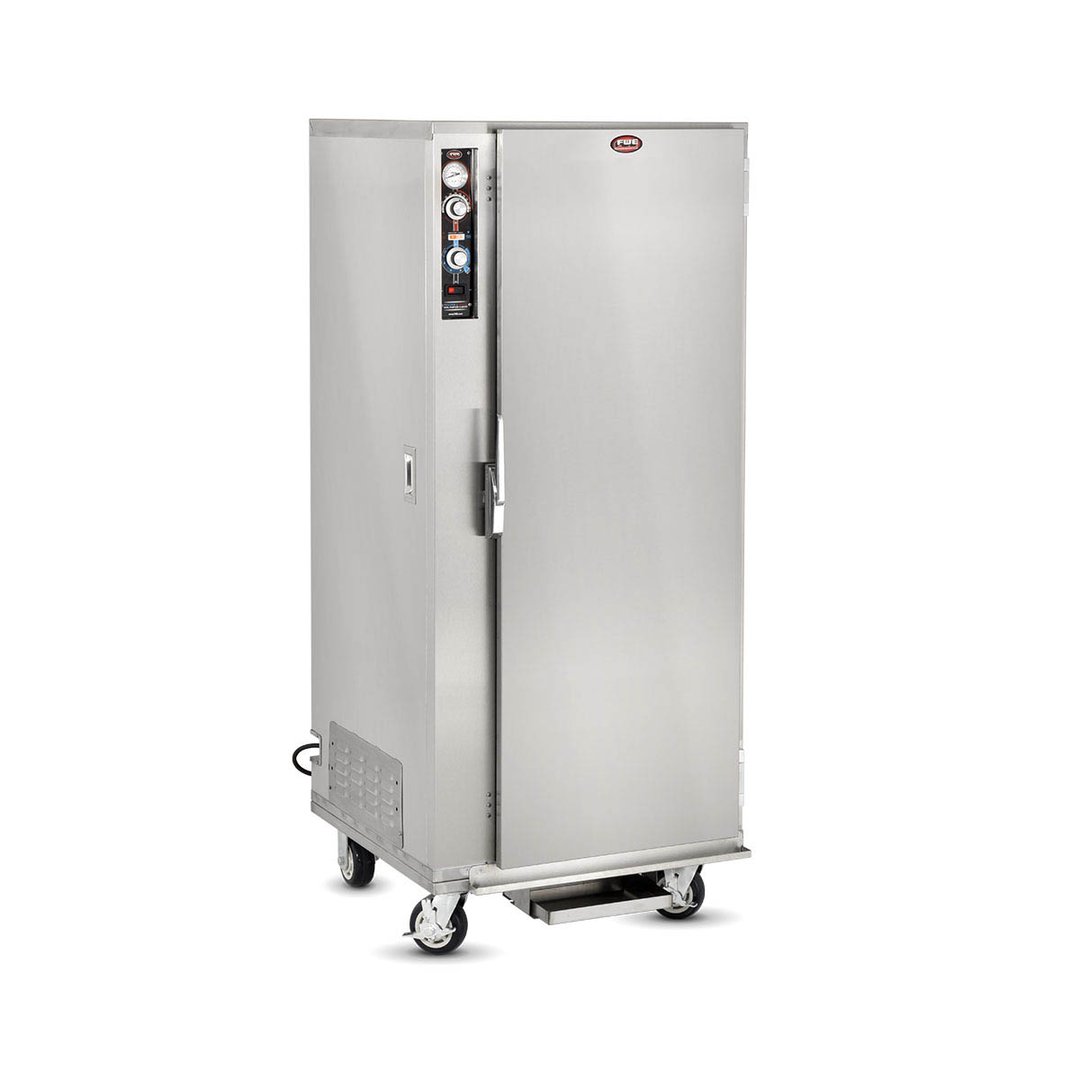

FWE ETC-UA-12PH Height Mobile Heated Holding Proofing Cabinet

General Informations

FWE's heavy-duty ETC-UA-PH Series hold 18" x 26", 12" x 20", 14" x 18", 12" x 18", 20" x 22", 10" x 20" as well as Gastro-Norm sizes: GN 2/1, GN 1/1 and GN Maxi-Pans. Cabinets are insulated on the left wall and door for greater heat retention than NON-insulated cabinets.

Construction

Stainless Steel / Non Insulated - Constructed of stainless steel, with welded base frame for added strength and durability.

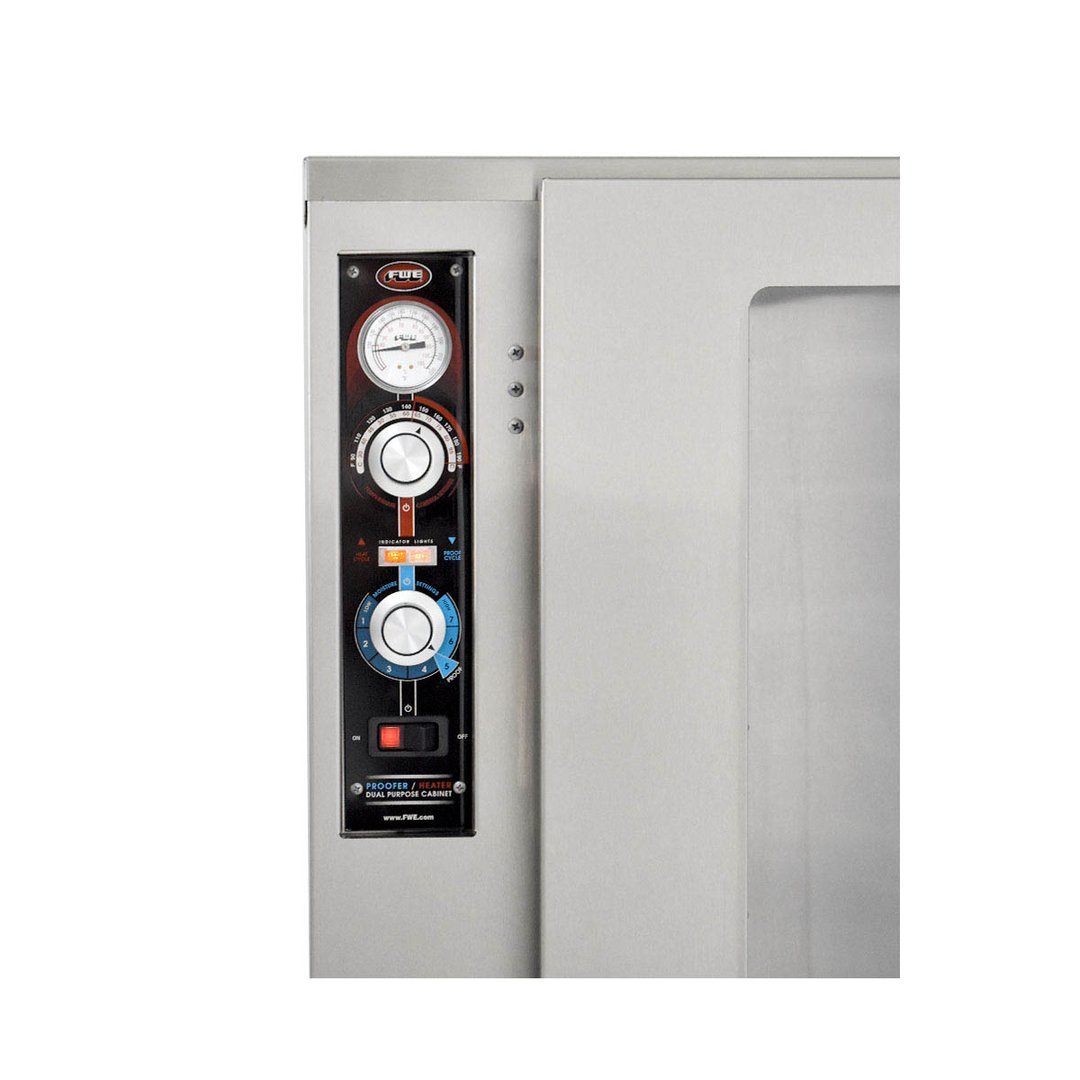

Control Panel

Mechanical Controls
Proofer Controls - Easy to use - upfront and recessed electronic control panel has separate, easy to read and set, air moisture and air temperature controls.

Heat System

Proofer Heat System - Proofer and amplified moisture heated holding. Built-in humidity system balances moisture and air with controlled heat and humidity capabilities - allows for greater control of holding food environment for longer holding period.

Slides and Shelves

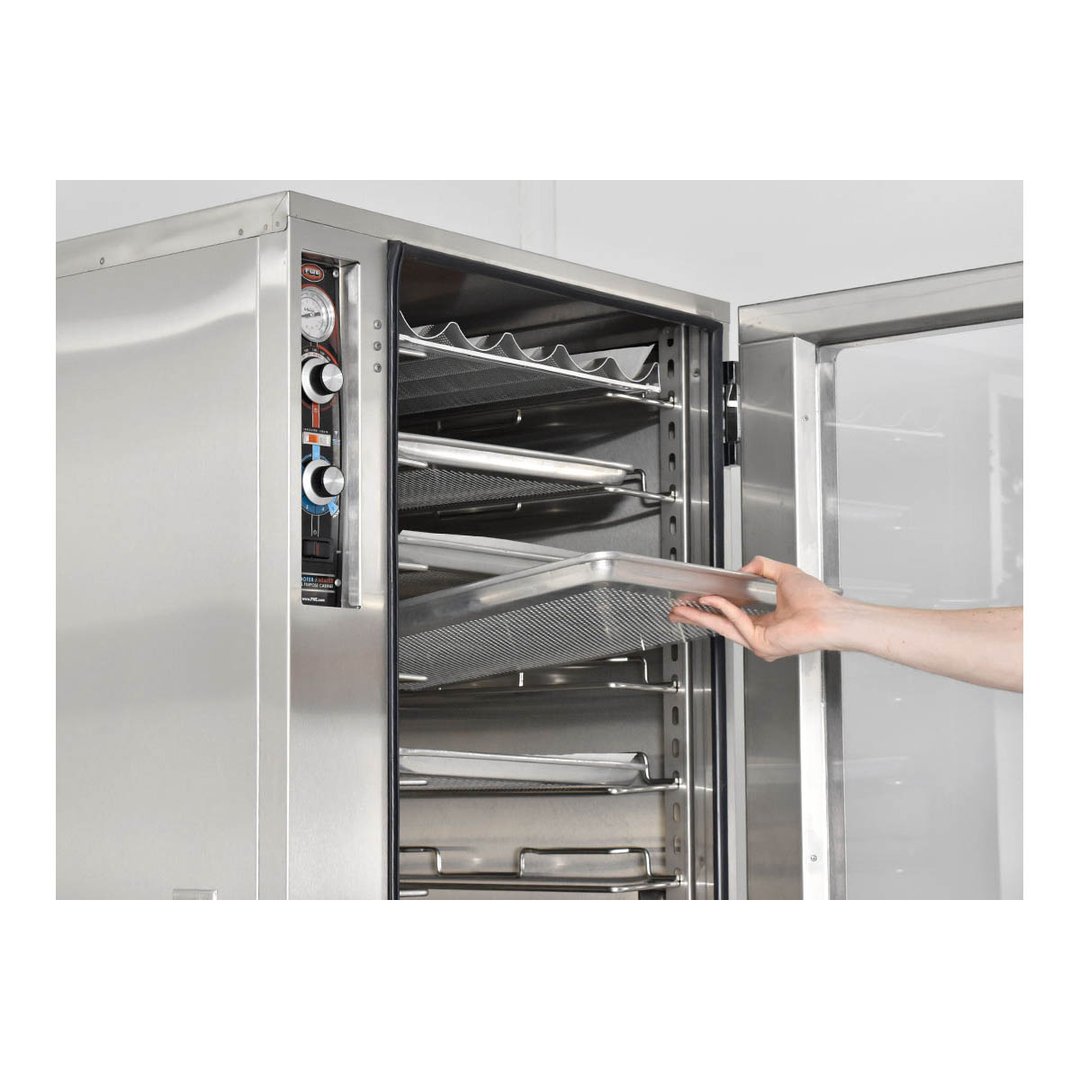

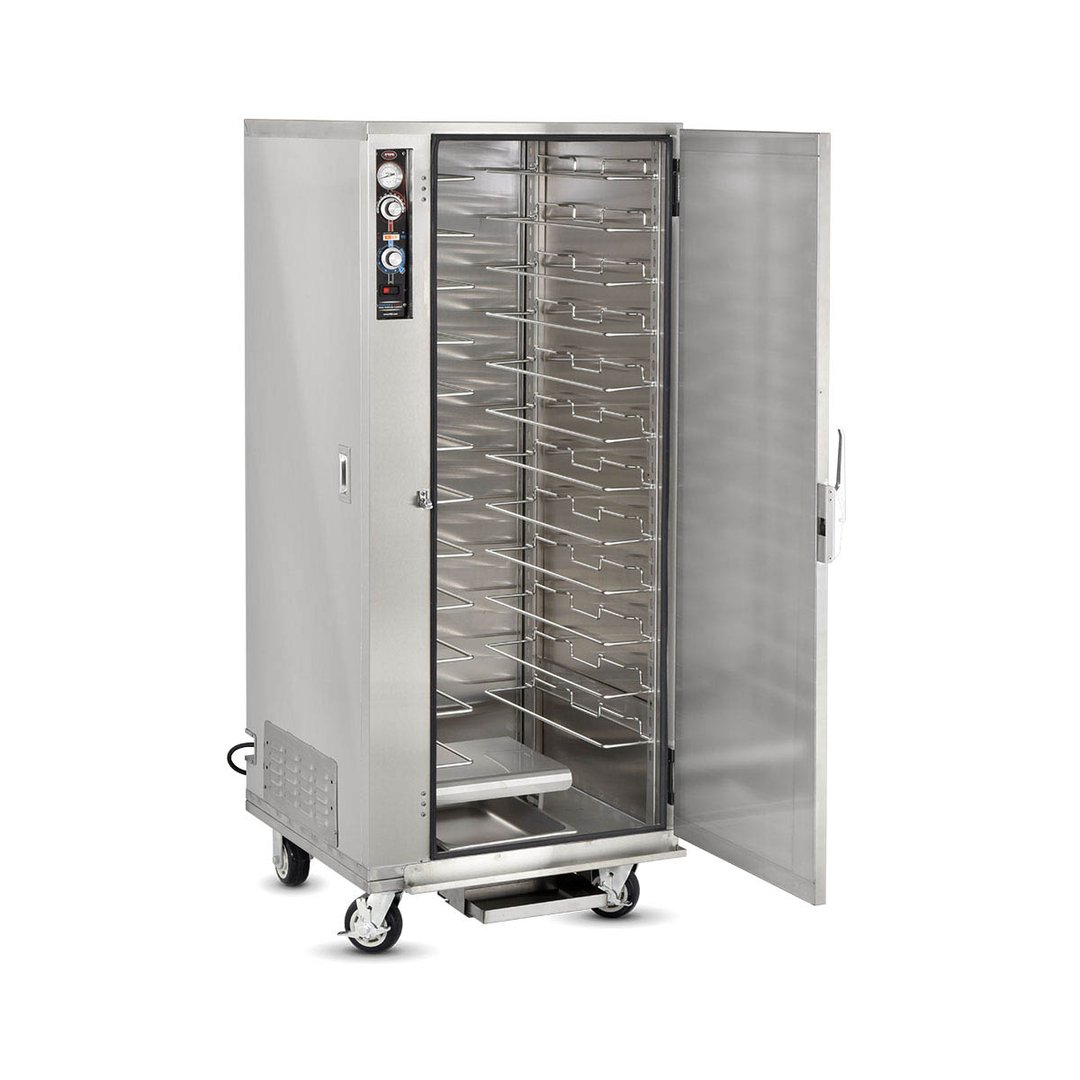

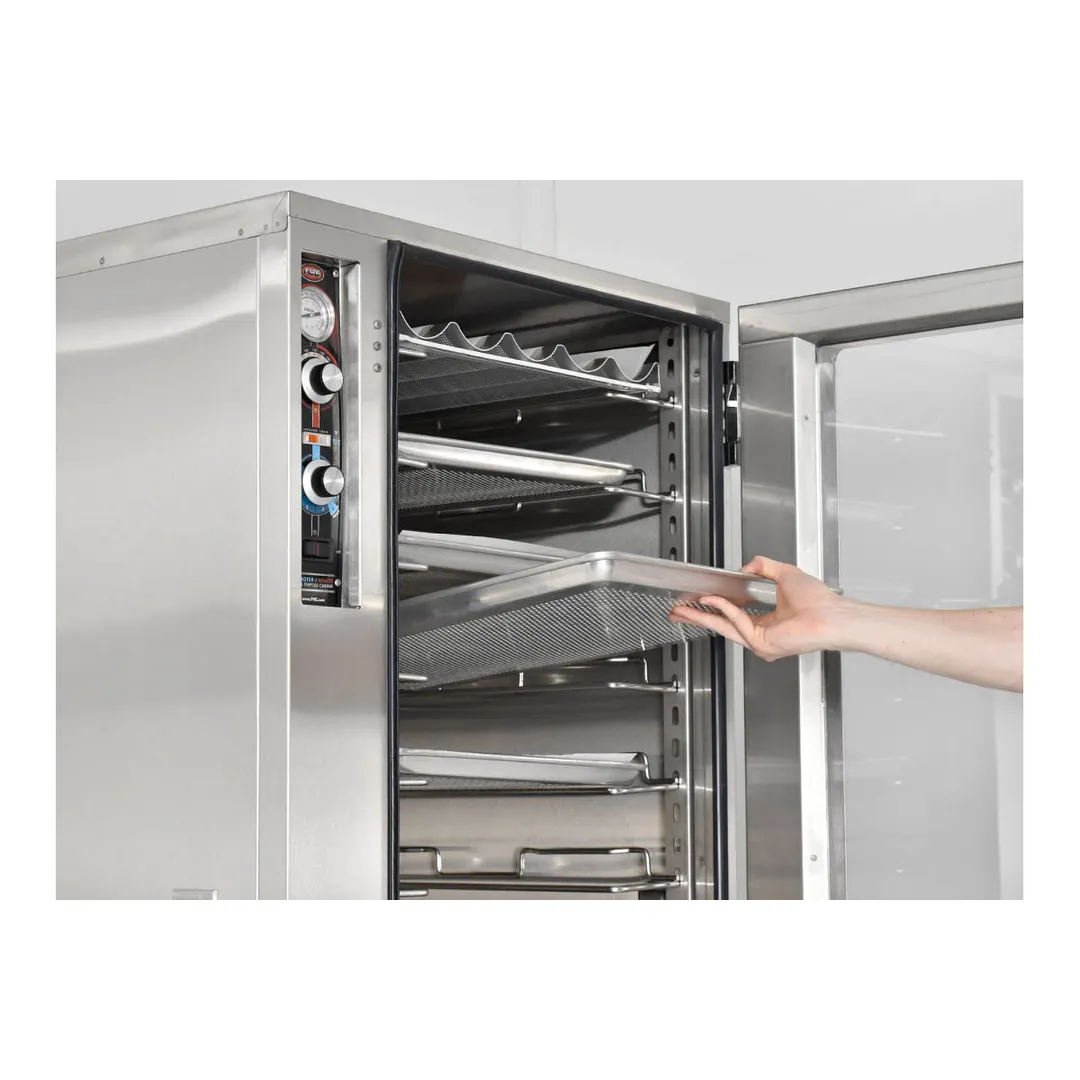

Adjustable Universal Slides Stainless Steel - Unique universal design holds 12" x 20" pans, 18" x 26" sheet trays or GN containers on fully adjustable stainless steel tray slides. Slides are removable for thorough interior cleaning.

FWE ETC-UA-12PH Specifications

OVERALL EXTERIOR DIMENSIONS IN. (mm) : 70.25″ (1784) H X 30,5" (775) D X 29,25" (743) W
NUMBER OF DOORS : 1
CASTER SIZE : 5"
SHIP WT. LBS.(KG) : 290 (132)
OTHER DETAILS : See Spec. Sheet

From The Manufacturer

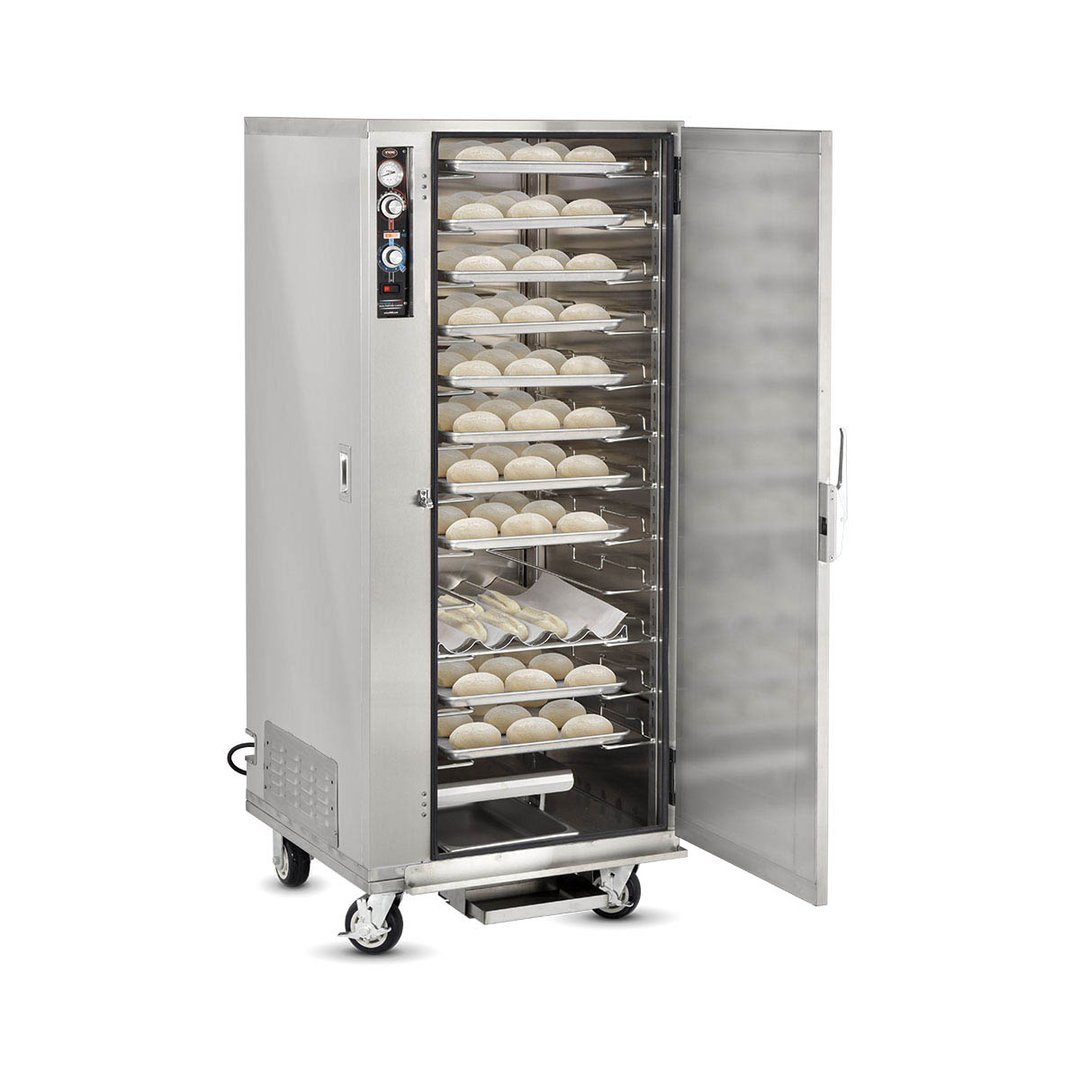

Proofer/Heater Cabinet, mobile, (12) pair universal tray slides, (12) 18" x 26" or (24) 12" x 20" tray capacity, 4-1/2" OC, adjustable on 1-1/2" increments, humidified proofer/heating system, adjustable thermostat, separate controls, non-insulated cabinet, (1) insulated door, recessed hand grip, removable water reservoir, stainless steel interior & exterior, 5" casters (2) rigid & (2) swivel with brakes, UL, cUL, NSF

Manufacturer	FWE
Model Number	ETC-UA-12PH
Weight	290 lbs
Depth	30.5″
Height	70.25″
Exterior Finish	stainless steel
Interior Finish	stainless steel
Width	29.25″
Sections	1 section w/1 compartment
Cabinet Size	full height
Insulation	non-insulated
Number of Doors	1 door
Interior configuration	universal slides
Proofer Doors	stainless steel door
Voltage	120
Phase	1
Control Type	dial control
Load Type	reach-in
Control Location	bottom
Design Features	heated/proofing cabinet
Slide Spacing (in)	4-1/2"
Placement	mobile
