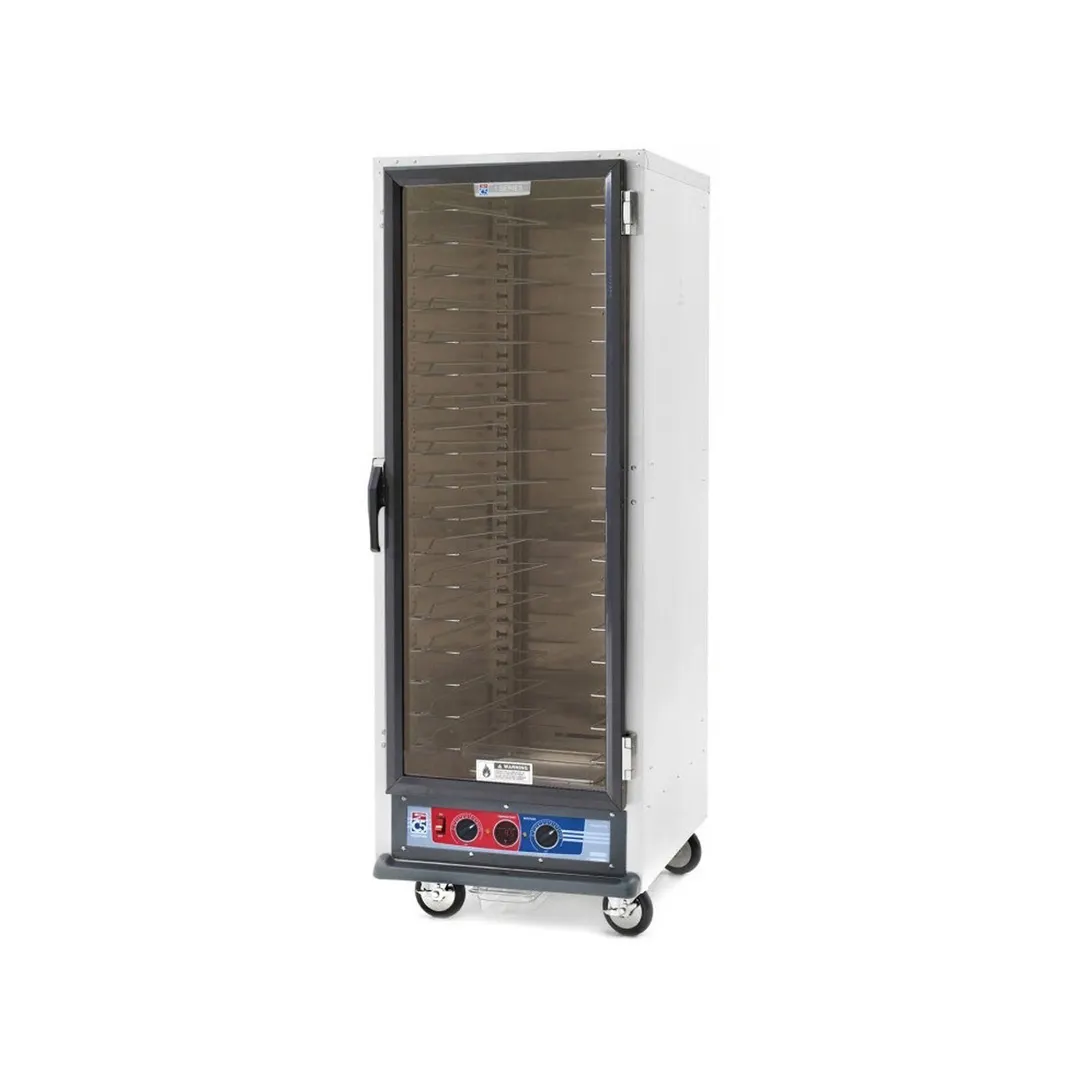

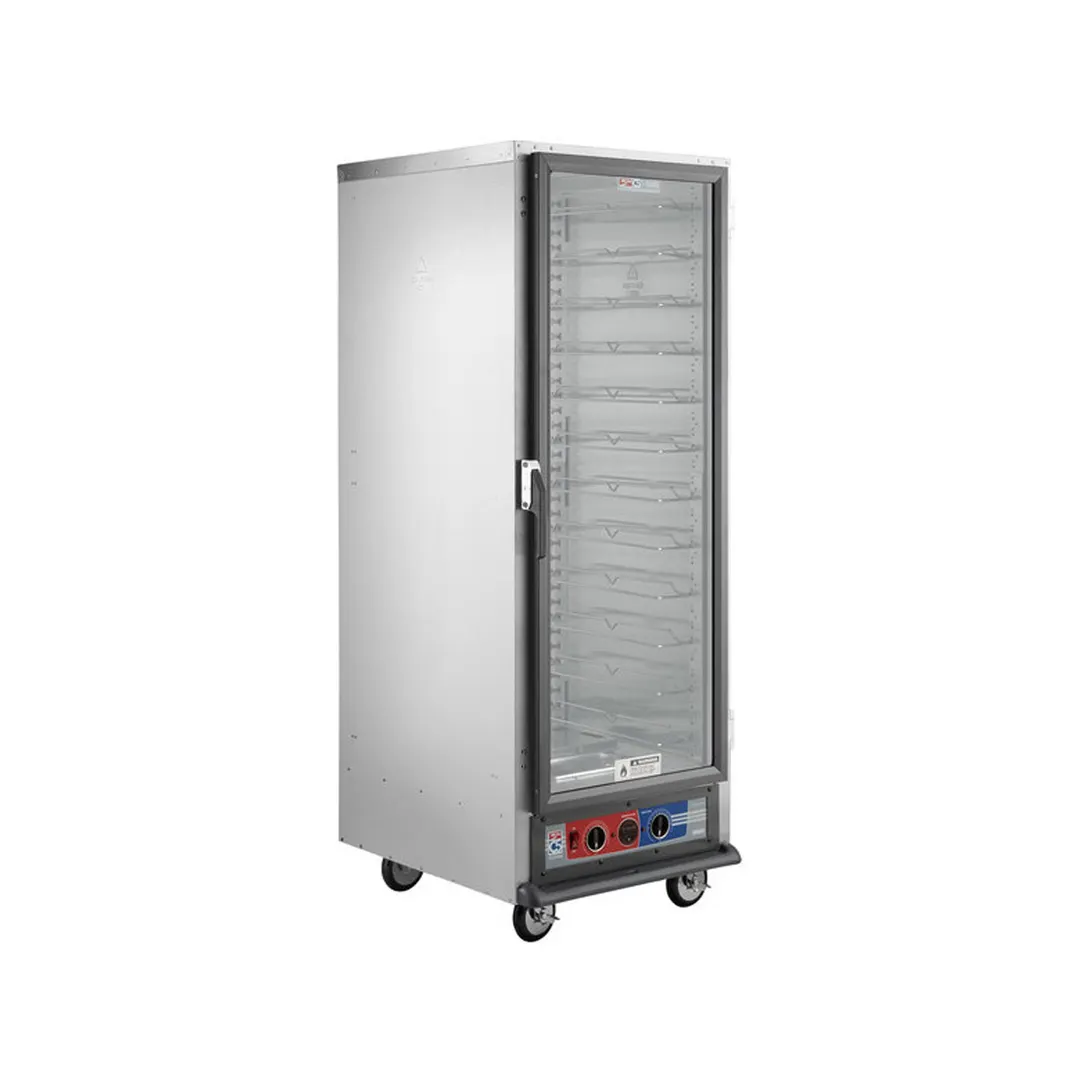

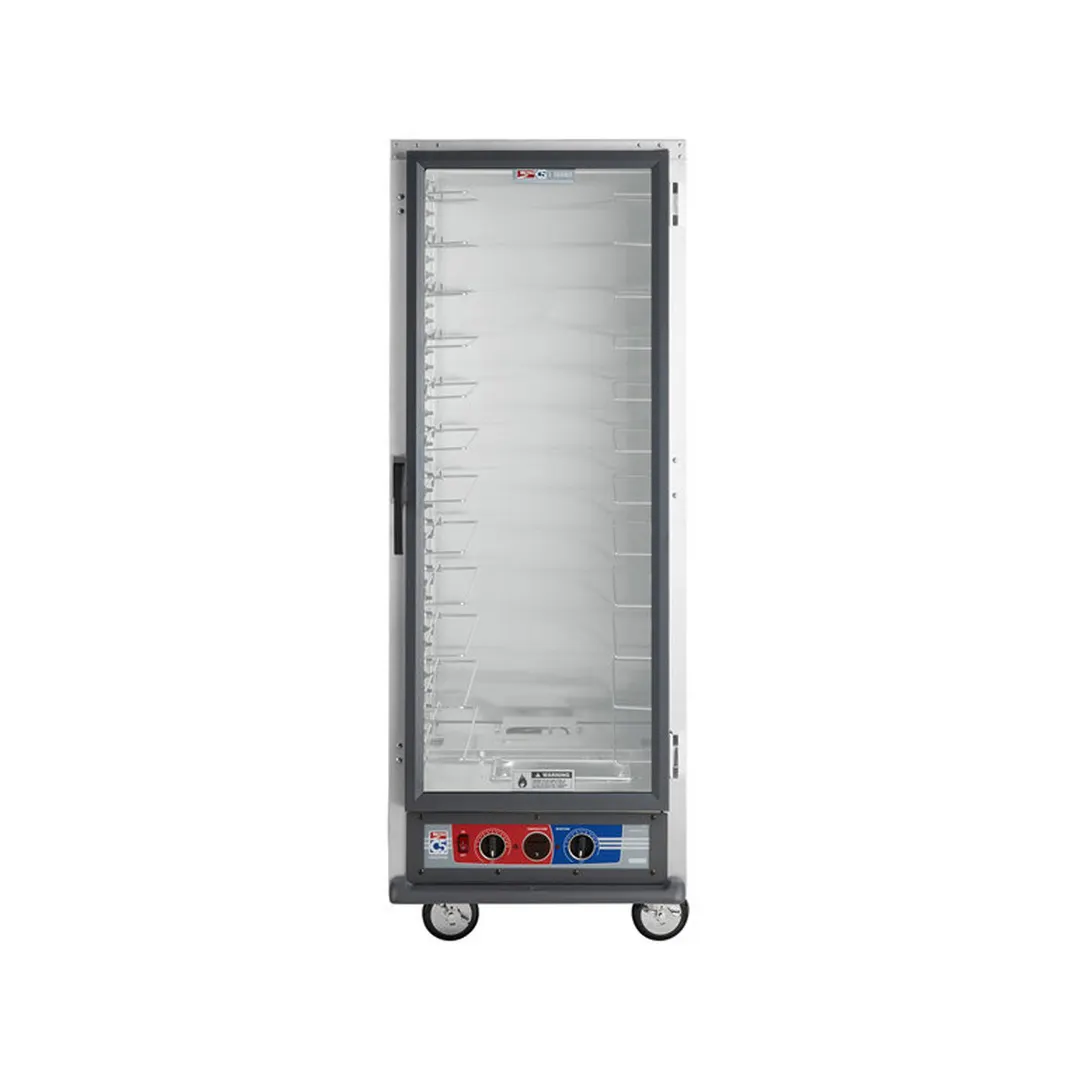

Metro C519-PFC-U C5 1 Series Non-Insulated Heated Holding and Proofing Cabinet
General Info
Full-height, non-insulated proofing cabinet. Entire module is removable without tools for easy cleaning and servicing. Clear polycarbonate doors provide visibility of the contents inside the cabinet without the heat loss associated with opening the door.
Control Modules
- Holding Module : For heated holding applications. Analog temperature control with digital display.
- Proofing Module : For proofing applications only. Individual analog controls for temperature and humidity levels. Digital temperature display.
- Combination Module : : At the flip of a switch change from heated holding mode to proofing mode. Individual analog controls for temperature and humidity levels. Digital temperature display
Capacity
- Universal : Adjustable wire slides, with SiteSelect™, hold 18"x26" sheet, 12"x20" steam table, 2/1 or 1/1 GN pans, and adjust on 1 1 /2" (38mm) increments.
- Lip Load : Fixed aluminum extrusions hold 18"x26" sheet pans on 1 1/2" (38mm) increments
- Fixed Wire : Fixed slides hold 18"x26" sheet, 12"x20" steam table, 2/1 GN, or 1/1 GN pans on 3" (76mm) increment
Metro C519-PFC-U Specifications
- Product Width :25.125″
- Product Depth : 30.25″
- Product Height : 69.75″
- Approximate Package Weight : 211 lbs.
- Material : Aluminum
- Color : Silver
- Cabinet Height : Full Height
- Number of Doors : 1
- Module Type : Proofing
- Front Door Style : Full Length Clear Door
- Slide Type : Universal Wire
- Reach-In or Pass-Thru : Reach-In
- Electrical : 120V, 60Hz, 1440W
- Other Details :See spec. sheet
From The Manufacturer
C5™ 1 Series Proofing Cabinet, mobile, full height, non insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 120°F, universal wire slides on 3" centers, adjustable on 1 1/2" increments (18) 18" x 26" or (34) 12" x 20" x 2 1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1 ph, 1440 watts, 12 amps, NEMA 5 15P, cULus, NSF
