MAXX COLD - REACH-IN FREEZERS (Select Series)
Highlights
- REFRIGERANT: Environmentally-friendly R-404A
- ELECTRIC: 110/60Hz/1 Ph (NEMA 5-15) Cord set includes plug & 6’ (3m) cord
- Maxx Cold Select Series bottom mount reach-in freezers are built to last and operate efficiently for years. Temperature is digitally controlled and readily adjusted for ideal storage conditions, and easily viewed from the exterior of the cabinet. The stainless steel and aluminum construction ensures years of long life, easy to clean surfaces and maximum durability. Each appliance comes with a 6’ long NEMA 5-15 cord set and includes a condensate evaporator for plug-and-play use.
TEMPERATURE
- Recommended holding temperature range: -10°F to 10°F (-23° to 12°C)
- Comes factory set to 5°F (-15°C)
- Open door alert, beeps when door has been open for 3 minutes
- Alert can be set to custom time duration (30 seconds-3 minutes)
- Large evaporator and condenser for quick cooling and greater efficiency
Features
- CFC-free polyurethane foam insulation

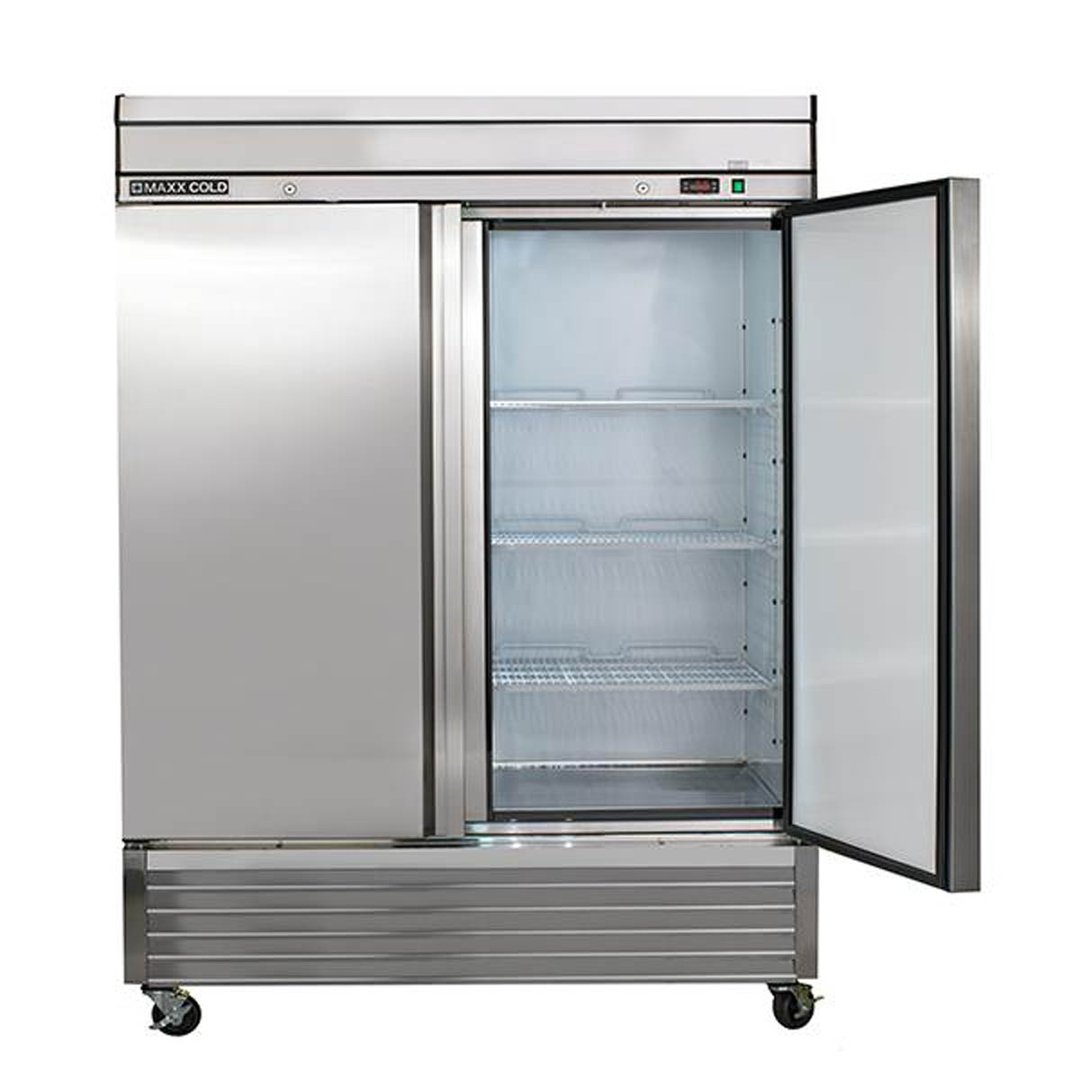

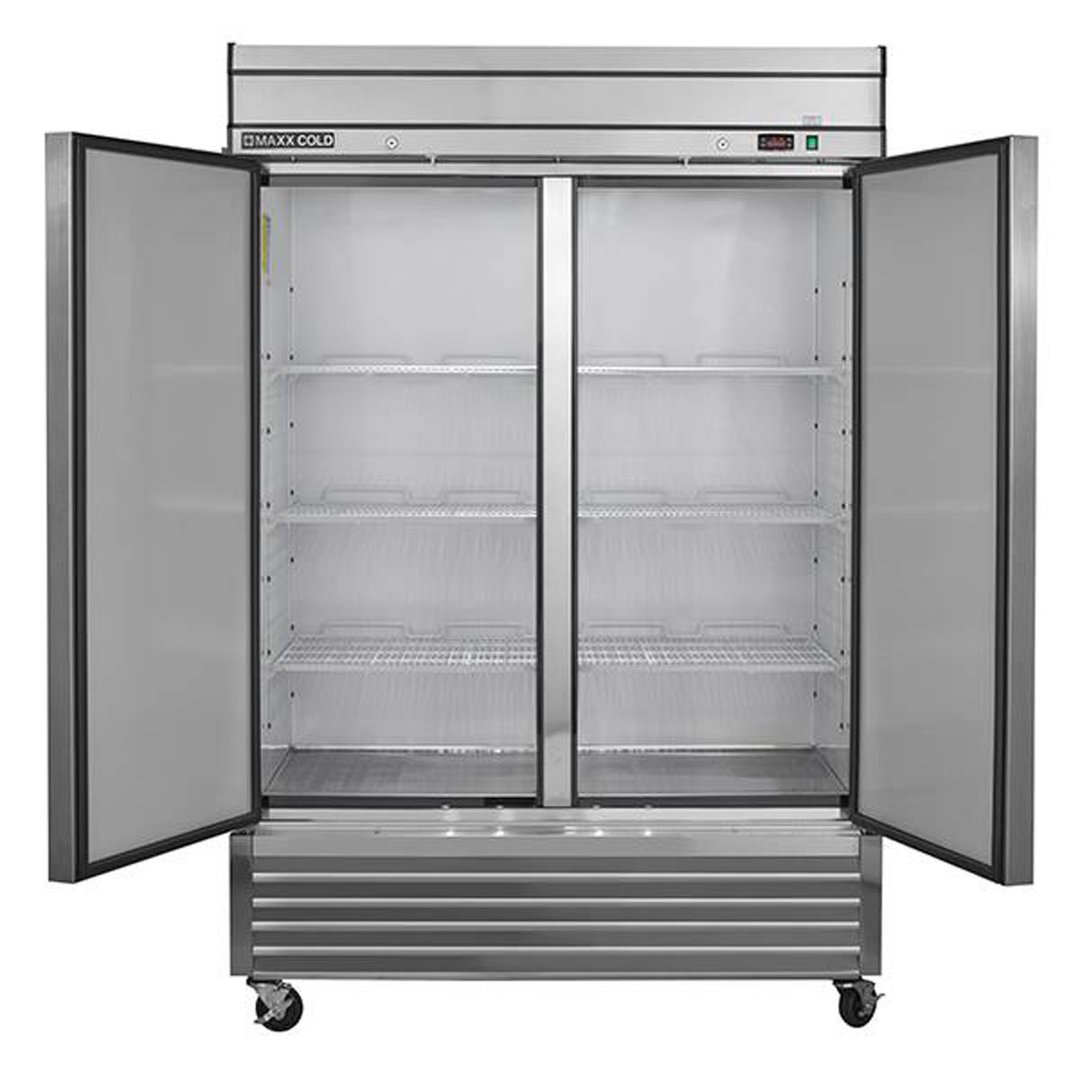

- 3 heavy-duty, adjustable, PE coated wire shelves per section
- Door locks and 4” diameter swivel casters come standard (2 with brakes)
- Utilizes environmentally friendly CFC-free R404A refrigerant
- Automatic defrost system keeps the unit at peak operating condition

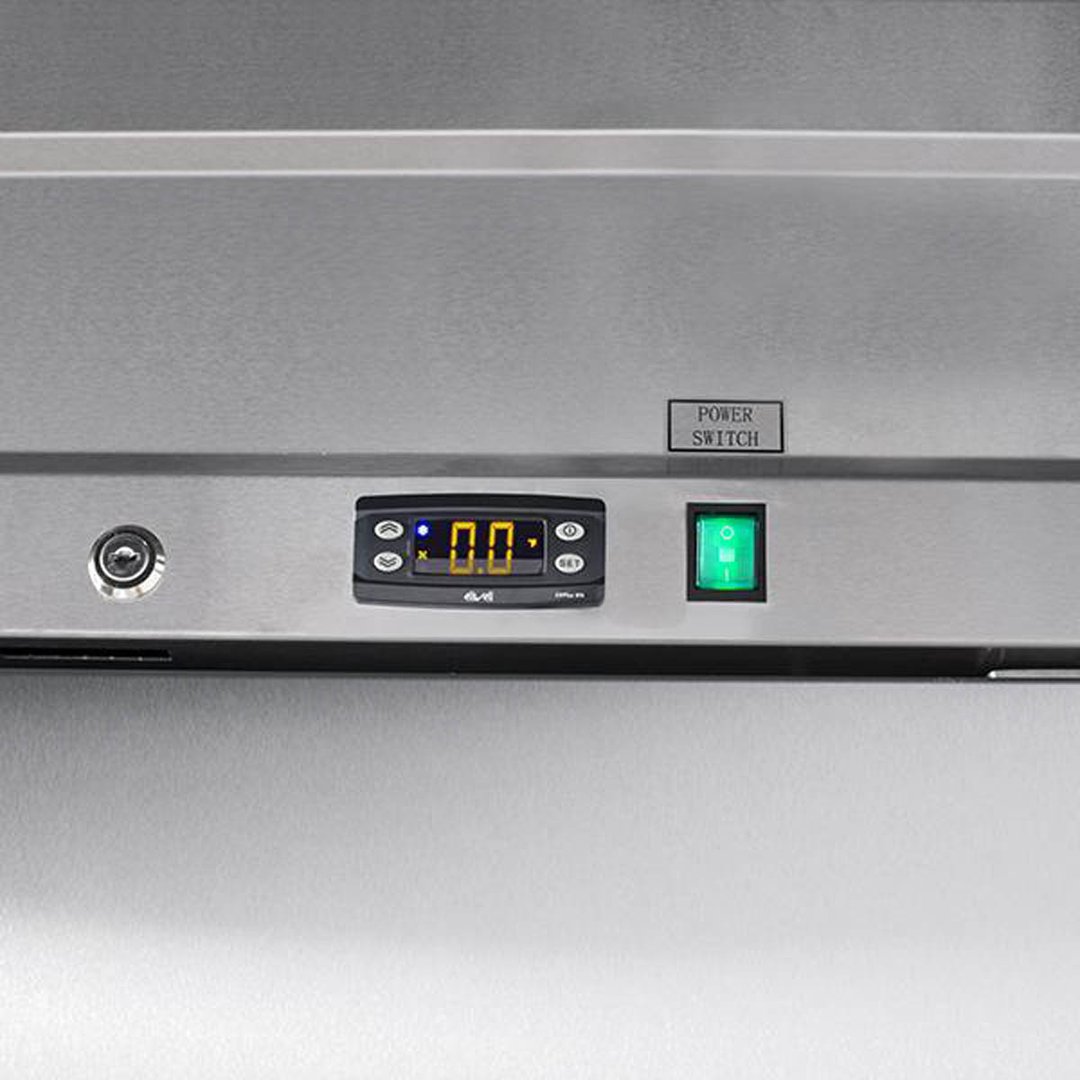

- Digitally controlled temperature system maintains optimum storage temperature and is easily changed when necessary.
- Self-closing doors
- LED display is easily viewed from exterior at a distance up to 15’ away
- MXSF-23FD Solid single door models are field reversible
CONSTRUCTION
- Interior lighting controlled by an automatic on-off door switch
- Stainless Steel Exterior
- Painted Aluminum Interior
- Integral condensate evaporator eliminates need for a floor drain connection
- Self contained heavy-duty refrigeration system - forced air for even temperature regulation
- Easy to grip handles formed into the door • Heavy-duty hinges that open to 180°
- Heavy-duty corrosion-resistant shelves and adjustable mounting clips
- NEMA 5-15 6’ long cord set is standard
From The Manufacturer

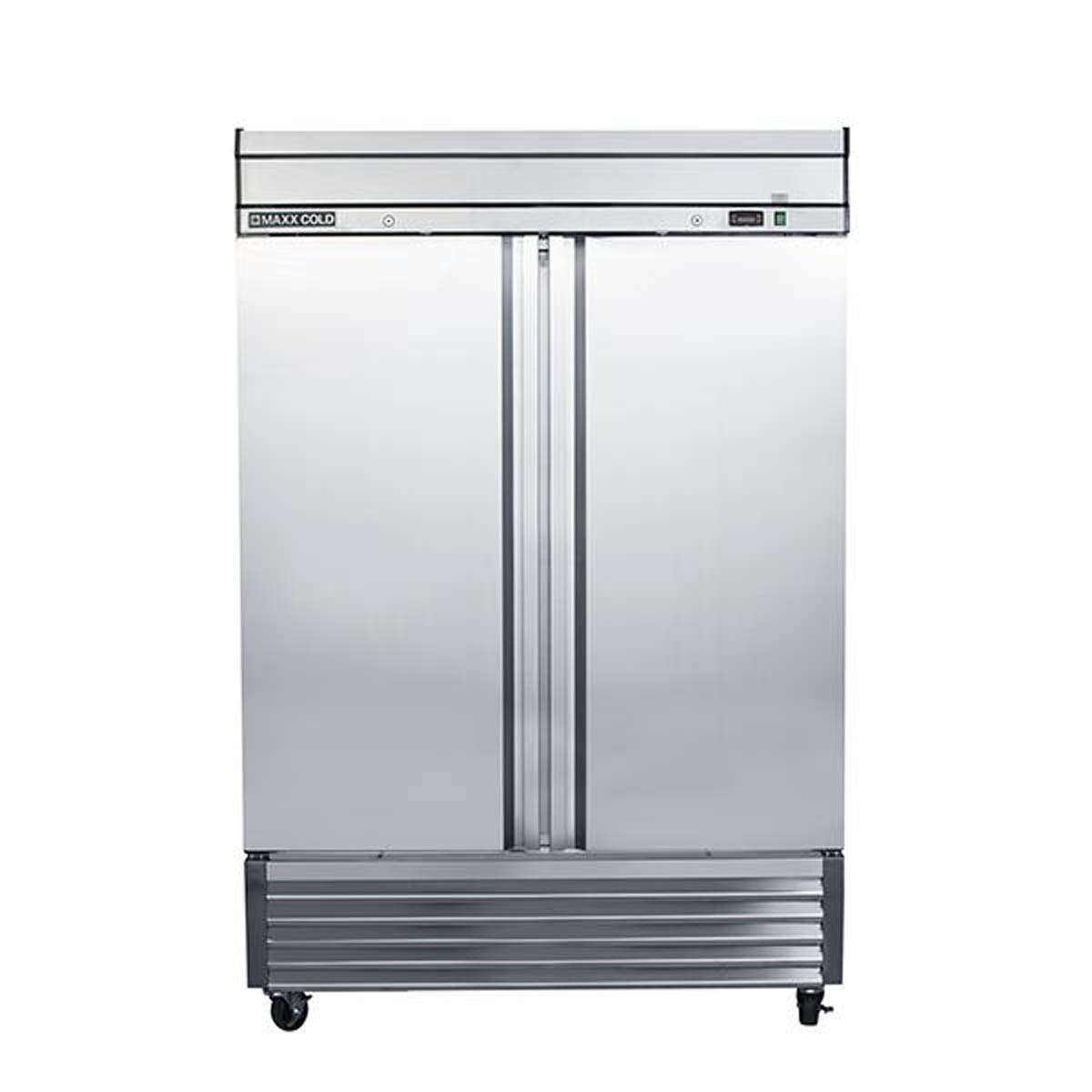

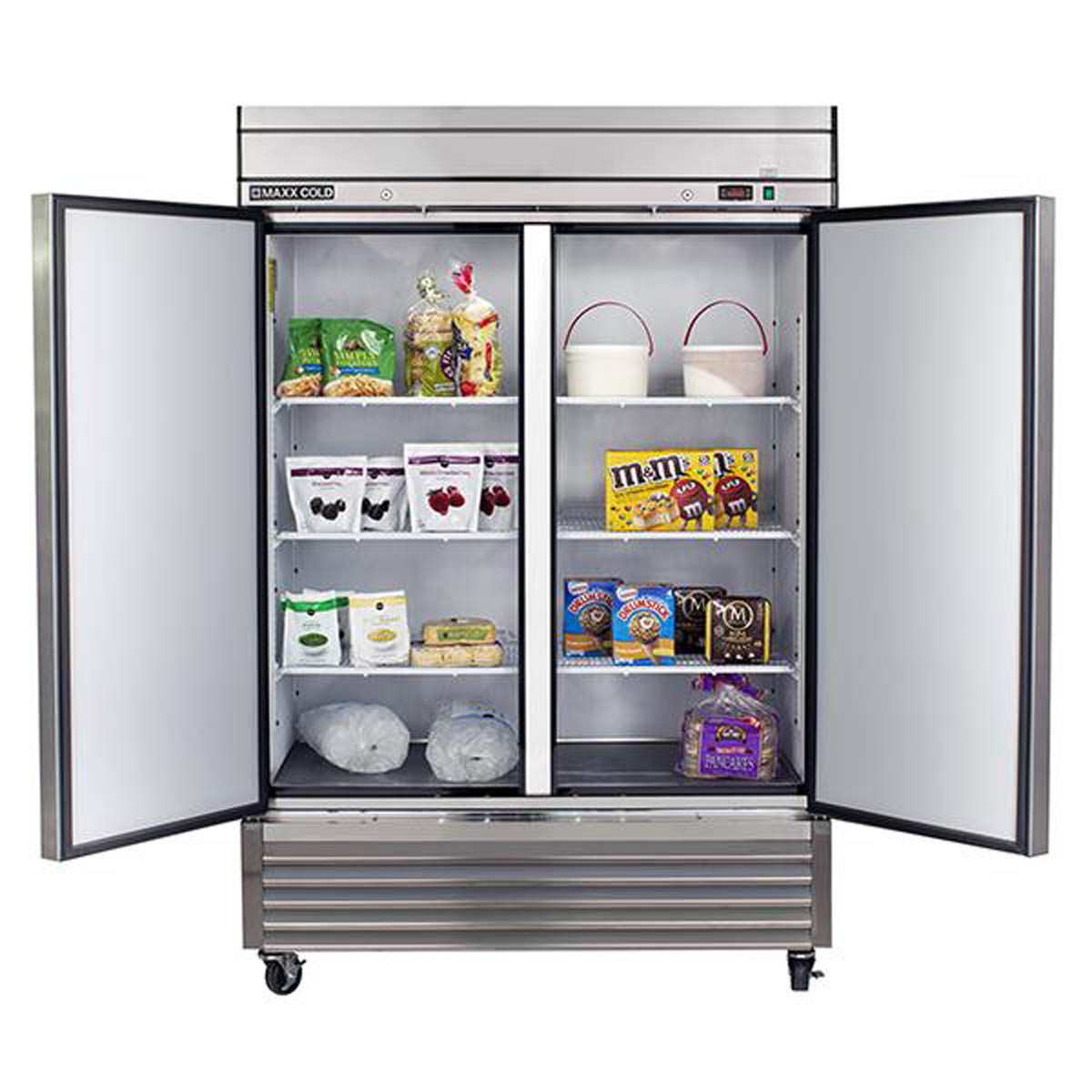

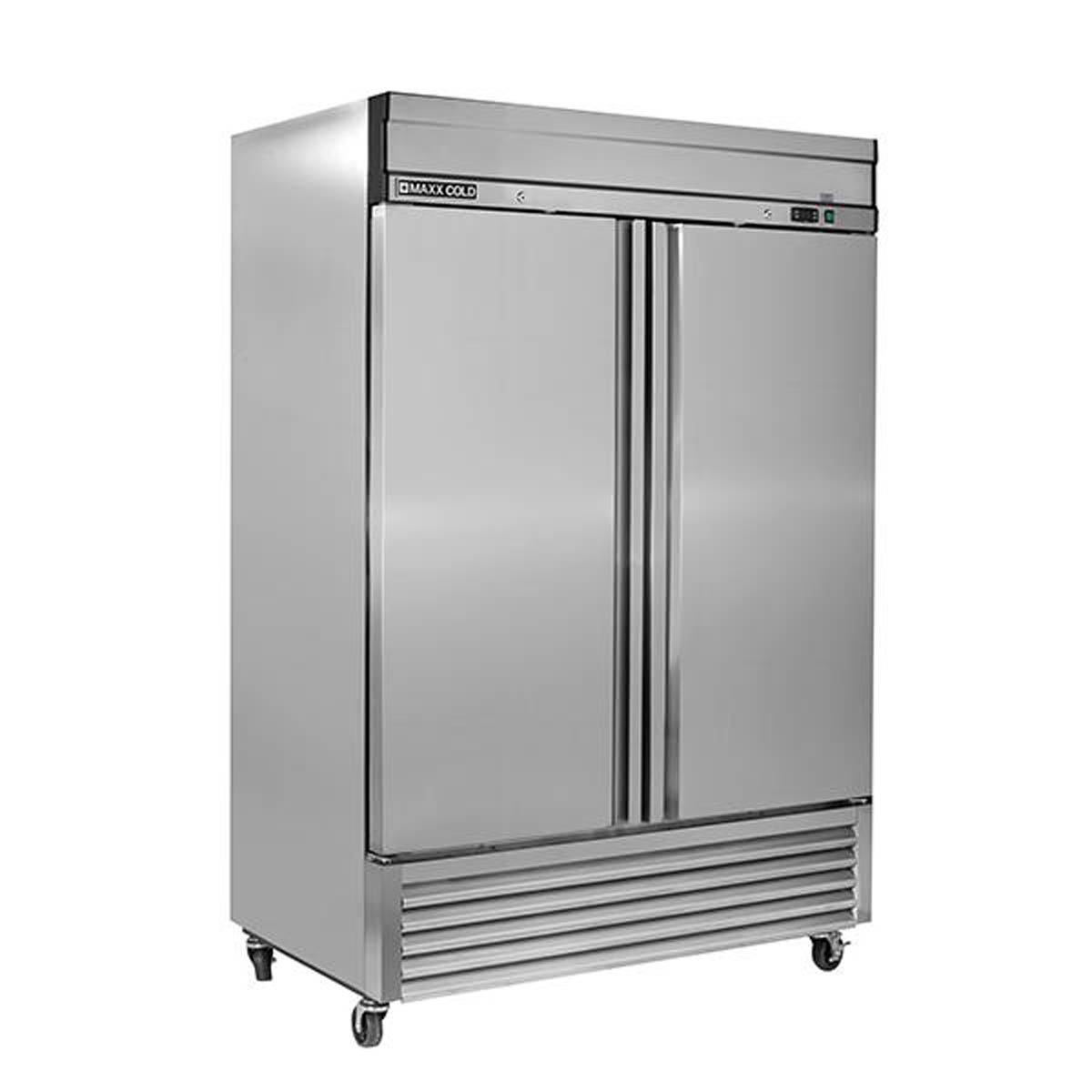

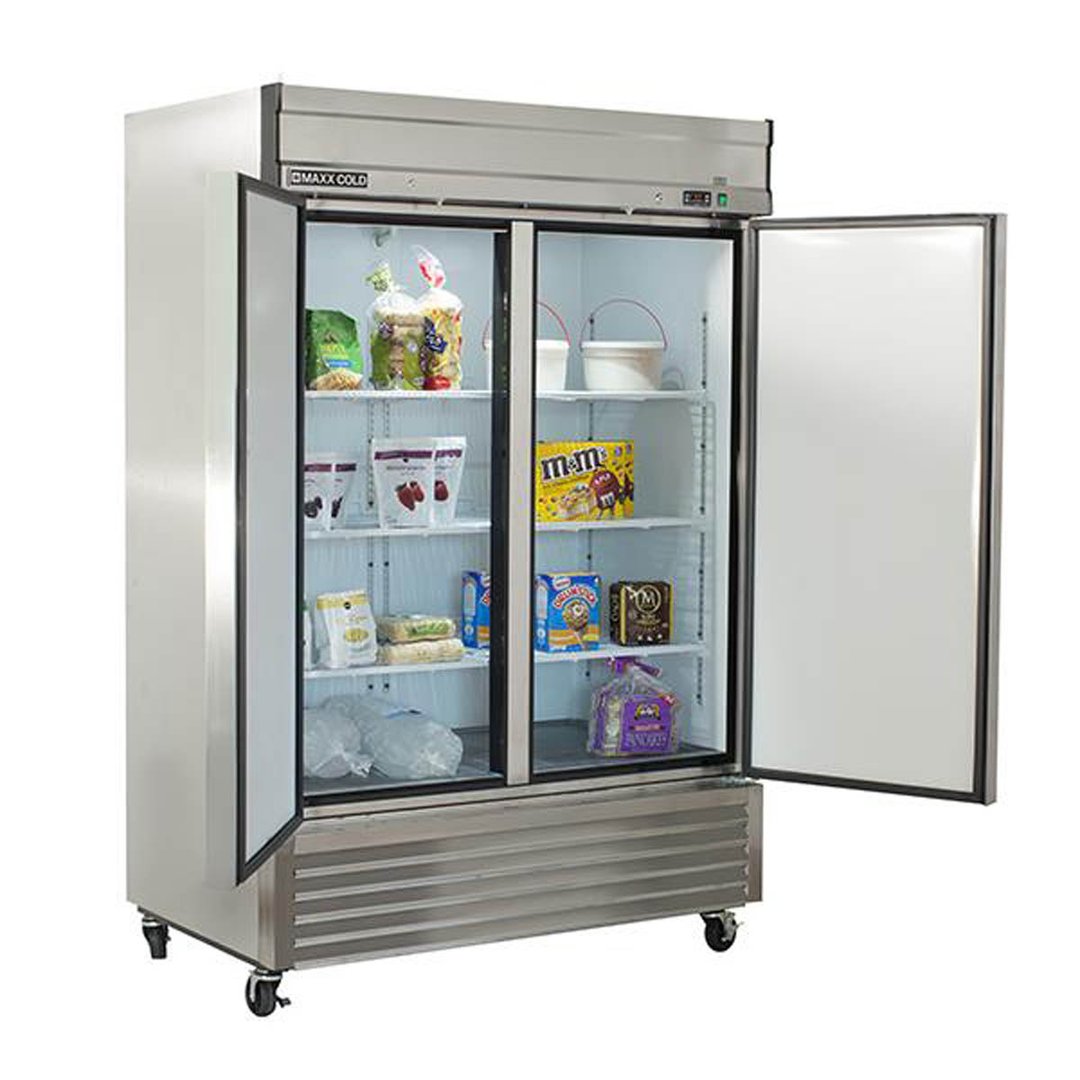

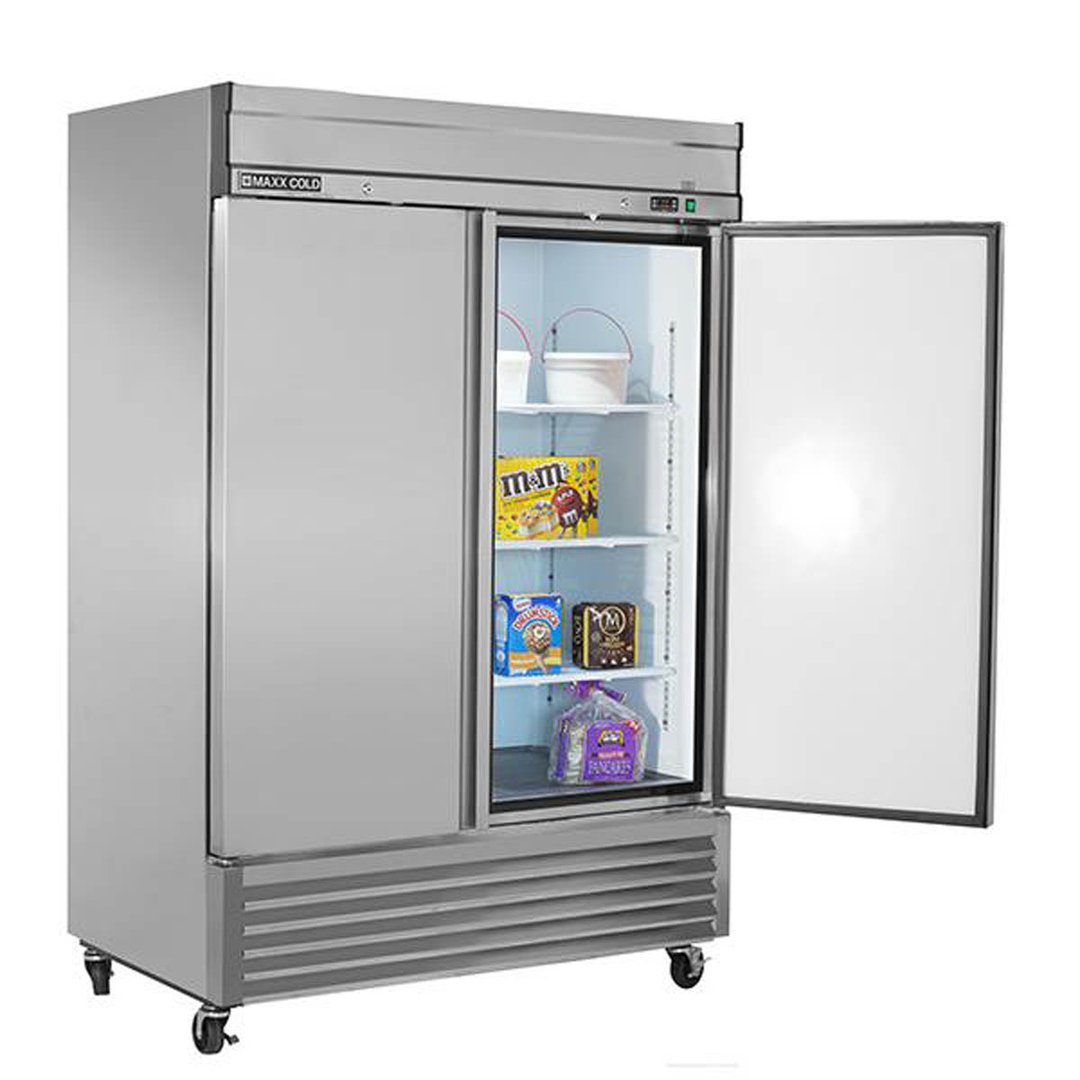

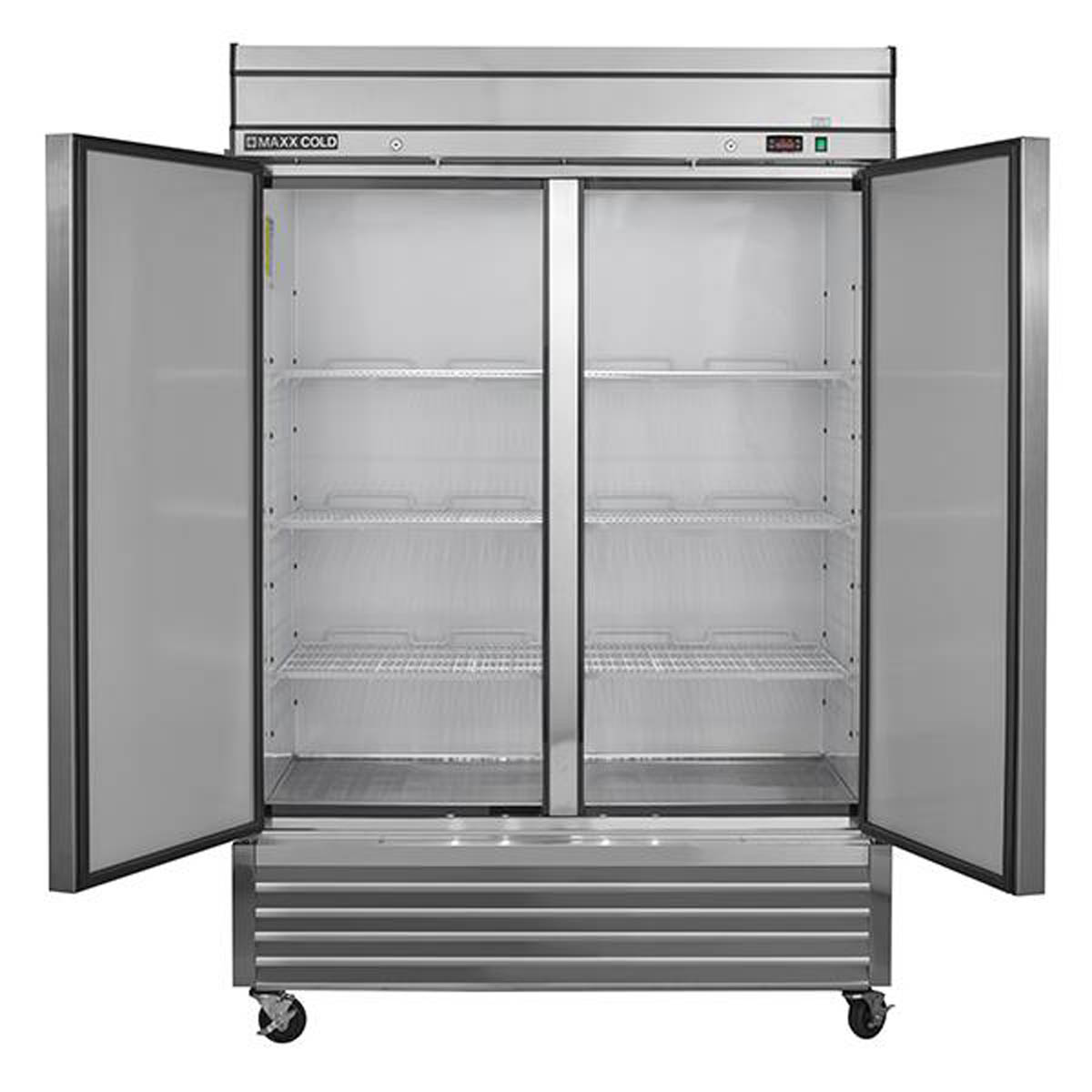

Maxx Cold Select Series Upright Freezer, reach-in, two-section, 49 cu. ft. storage capacity, bottom mount self-contained refrigeration, -10° to 10°F temperature range, digital temperature controls with LED display, automatic defrost, (6) wire shelves, (2) solid hinged doors with locks, polyurethane foam insulation, aluminum interior, stainless steel exterior, (4) 4" casters (2 with brakes), R-290a Hydrocarbon refrigerant, 1HP, cETLus, ETL-Sanitation
