Optimized Climate Control for Restaurant Entrances
Maintain a comfortable, draft‑free doorway while keeping insects out, boosting kitchen efficiency and guest comfort.
Key Features
- 48" wide anodized aluminum cabinet delivers durable, low‑maintenance performance for high‑traffic service doors.
- 1/5 hp motor with ten speeds provides 0.26 kW power and 49.1 MBH heater output, delivering 1,334 cfm airflow for rapid temperature recovery.
- Factory‑installed Intelliswitch digital controller enables precise temperature set‑points and programmable schedules.
- Washable filter and insect protection up to 7 ft mounting height ensure clean air flow and pest‑free entrances.
- cULus and AMCA certifications confirm compliance with safety and airflow standards for commercial foodservice environments.
From The Manufacturer

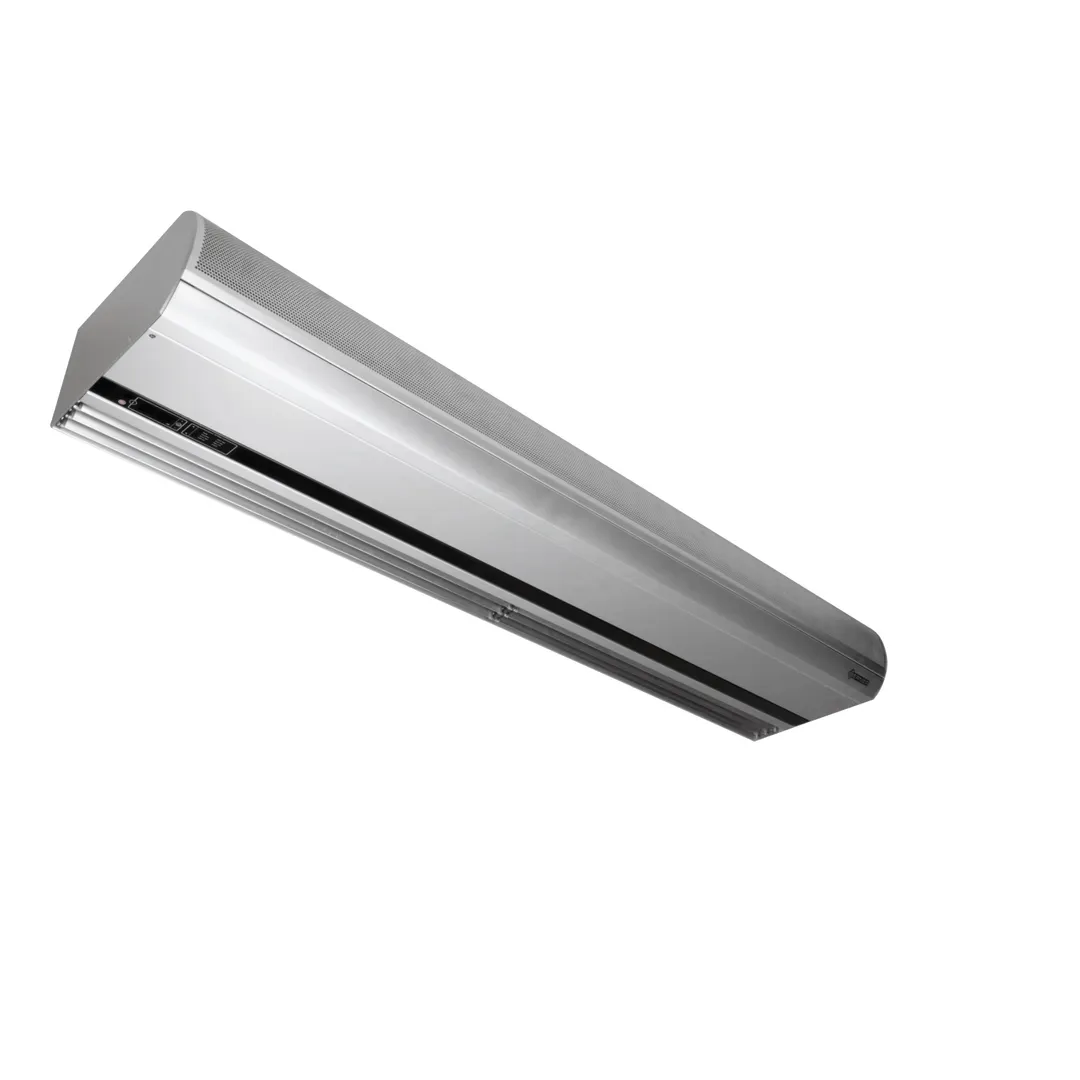

Architectural Icon 08 Series, 48" long, electric heated, (1) motor, 1/5 HP, climate control for 48"long door at 8-ft, insect protection up to a mounting height of 7-ft high, factory installed "Intelliswitch", digital programmable controller, anodized aluminum exterior cabinet, filter (washable), wall or top mounting, cULus, AMCA, Made in the USA
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
