Optimized Climate Control for Restaurant Entrances
Maintain a comfortable, energy‑efficient doorway that keeps heat in and insects out for busy foodservice environments.
Key Features
- 120" wide, 118" nozzle width delivers 3,334 cfm airflow at 1,808 fpm average outlet velocity.
- Two 1/5 hp electric motors provide ten speed options and a total power rating of 0.64 kW.
- Factory‑installed Intelliswitch digital controller enables precise climate control and programmable settings.
- Anodized aluminum exterior cabinet with washable filter meets cULus and AMCA certifications for durability and safety.
- Mountable on wall or top, suitable for doors up to 8 ft opening height and insect protection up to 7 ft mounting height.
From The Manufacturer

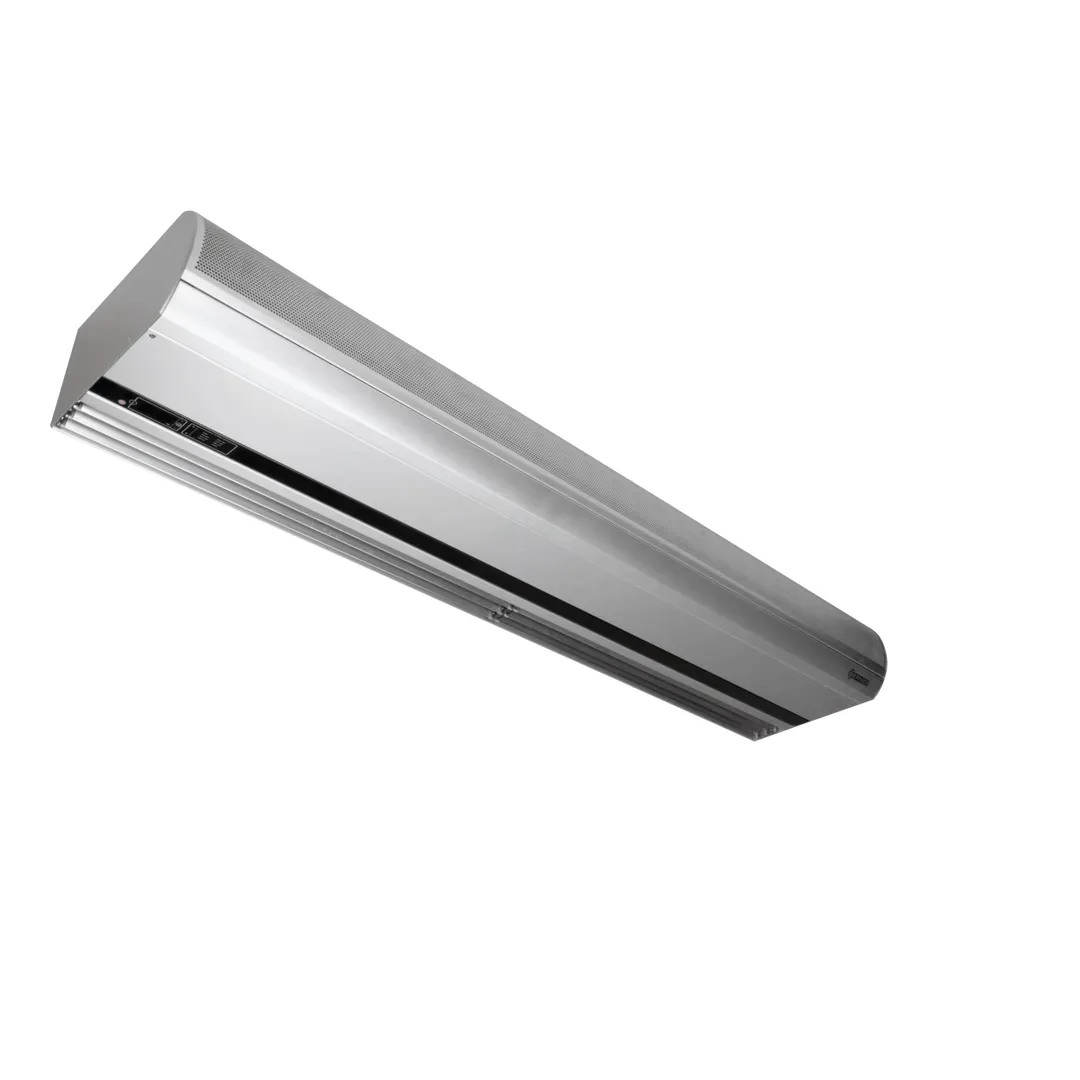

Architectural Icon 08 Series, 120" long, electric heated, (2) motor, 1/5 HP, climate control for 120"long door at 8-ft, insect protection up to a mounting height of 7-ft high, factory installed "Intelliswitch", digital programmable controller, anodized aluminum exterior cabinet, filter (washable), wall or top mounting, cULus, AMCA, Made in the USA
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
