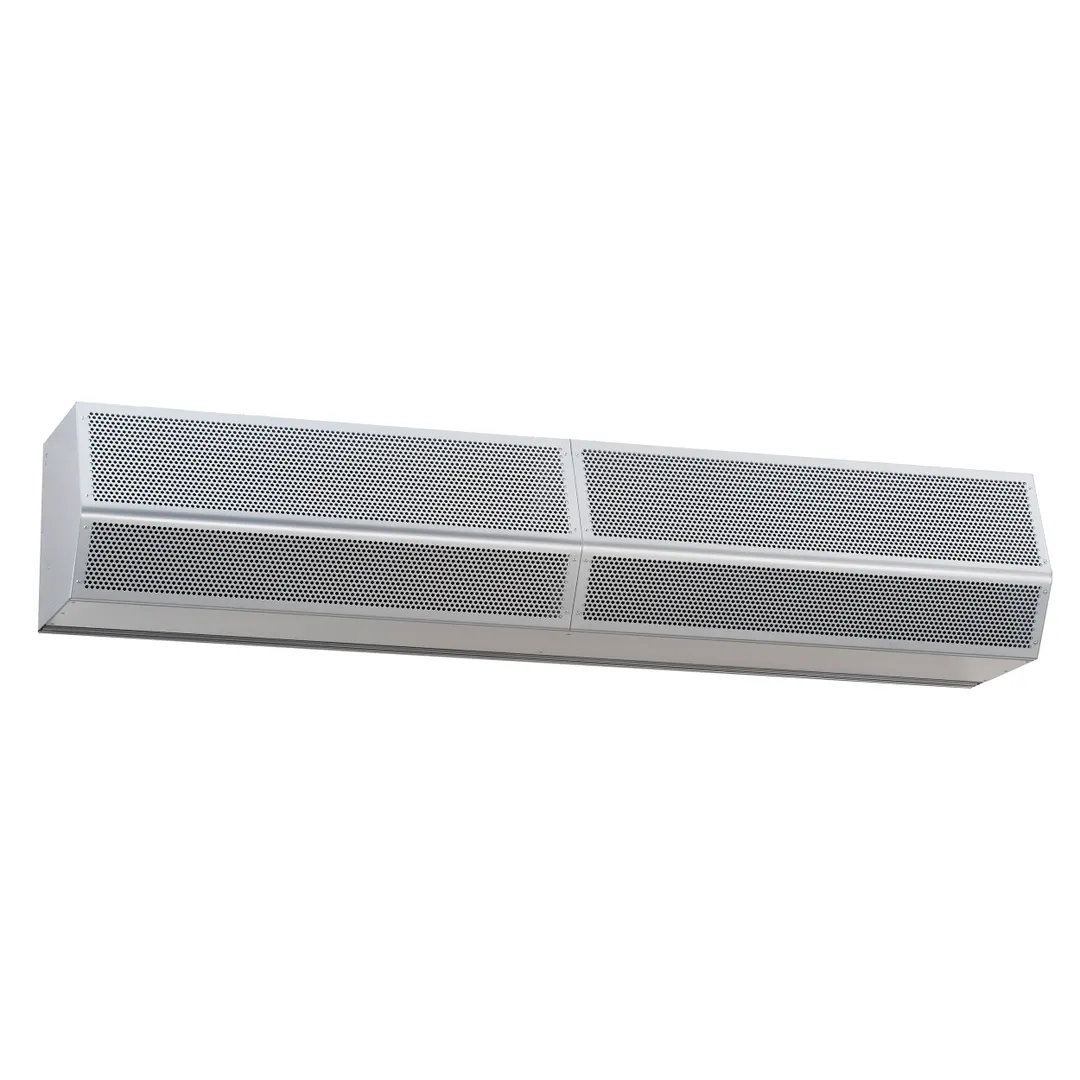

High-Performance Air Curtain for Restaurant Doorways
The HV2144-3UD-TS delivers a powerful, unheated air barrier for 144" doors, protecting restaurant interiors from drafts, insects, and heat loss while maintaining energy efficiency.
Key Features
- Three 1 HP NEMA‑1 TEAO motors provide 6.4 A per motor at 208‑230 V single‑phase, ensuring reliable airflow across a 144‑155" opening.
- Galvanized steel cabinet with Titanium Silver powder‑coat finish offers corrosion‑resistant durability for demanding kitchen environments.
- AMCA‑certified performance delivers up to 6,144 fpm core velocity and 7,341 cfm airflow, achieving environmental separation up to 14 ft.
From The Manufacturer
High Velocity Series 2 air curtain for 144"W door, unheated, galvanized steel cabinet with Titanium Silver powder coat finish, (3) 1 HP motors, 208-230v/60/1-ph, cETLus
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
